Home LED Light Products Outdoor Full Color LED Advertising Billboard Display (PH-12)

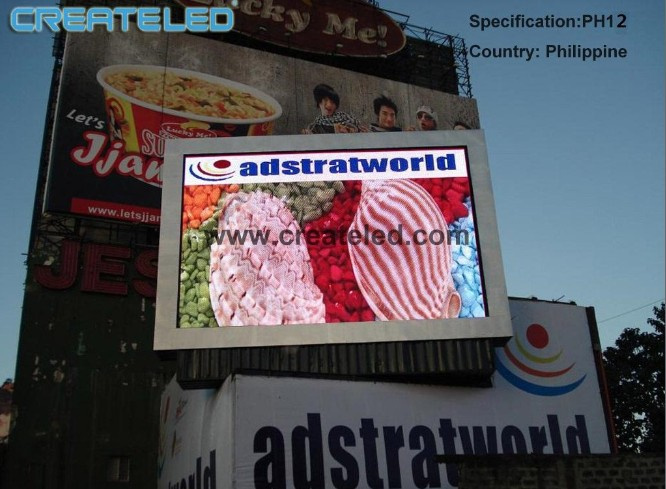

Outdoor Full Color LED Advertising Billboard Display (PH-12)

Outdoor Full Color LED Advertising Billboard Display (PH-12)
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Square Meter
Pay Type: L/C,T/T
CreateLED's conventional screens(pH-12) are managed by advanced and professional for video screen drive and control systems. They are capable of visualizing more than 281 trillions of colors with a resolution of 16 bit continuously per color. With pixel-sharing technology. CreateLED displays always deliver to all of our customers with excitement!
The basic protection of video screen guarantees a better and longer lifetime. CreateLED has focused on developing this feature and can manufacture all the screens to a protection level of IP65 on the front side, and IP54 on the rear side with iron with cotton filter, which completely isolates the screens from rain and dust. Besides all cabinets with 1000mmx100Omm, which are enable to fit customers ideal screen size.

Key Benifits:
1. High brightness and adjustable the need of the changing requirement of customer in environment;
2. Having good lightening accordance and no mosaic;
3. Using virtual pixels, better viewing effect for both text & graphic and video;
4. Having larger viewing angle: Horizontal angle 160 degree/elevation angle 70 degree. Getting vivid effect within any position of the viewing range;
5. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.
PH-12
Pixel   Pitch 12mm
Unit   Size 960mmx768mm
LED   Type 2R1G1B
Pixel   /   Unit 80x64
Unit   Weight 48kg
Viewing   Angle H160°   V70°
Application Storage-40~60° C,     Working-20~50° C
Protection   Level IP65/IP54
Power   Consumption 420W/panel   Max
  168W/Panel   Ave.
Driving 1/4   Scan
Frame   Refresh ≥ 60Hz
Data   Refresh   Rate 600~2, 000Hz
Processing 16bit
Max    Brightness 5, 500-6, 500nits
Power   Supply AC90-240V,   50~60Hz
MTBF ≥ 1, 000   Hours
Life   Span ≥ 50, 000   Hours
Pixel   Failure < 0.0003

Prod Model: PH-12
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/16 Scan
Certification: RoHS
Average Power Consumption: 220W / m²
Pixel Configuration: SMD 3-in-1
Pixel Pitch: 3.9mm
Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.

Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.

About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.

Welcome to our Showroom and My Products for more detailed offer info.
