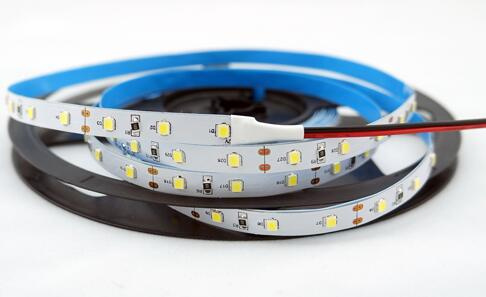

Nonwaterproof SMD2835 LED Strip Light 60LED/M

High Brightness Flexible LED Strip Light, Epistar SMD2835,60LED/m LED Decorative Strips Lighting
Description:
2835 SMD LED as the light source
High Brightness, All single color
High luminance efficient and low power consumption
Easy Installation, 3M self adhesive tape in backside
The flexible LED strip can be divided by every three leds
Long Life over 50, 000 hours of usable life
CE RoHS compliant
With 2~3 Year Warranty

Specifications:
SSL-FS2835-60N
Dimension: 5000*8*2mm
LED Chip:  5050 SMD TOP LED
Emitting color: Red, Yellow, Blue, Green, warm white, cool white, RGB colors
LED Quantity: 60pcs/meter, total 300pcs
Material: FPC
FPC color: Yellow, White, Black
Beam Angle: >120°
Working Voltage: DC12V / DC24V
Rated Power:4.8W/m
Life Span: ≥50000 hrs,
Working Temperature: -25ºC~55ºC
Working Humidity: 10%~95%
Protection Degree: No waterproof
Packaging: 5m/roll

Part No.	Color	Descrip.	Size(L*W)	Watt	Led Q'ty	Volt	Packing	IP
SSL-FS2835R-60N-NW	Red	2835LED	5000*8mm	24W/m	60led/m	12V	5m/roll	No waterproof
SSL-FS2835Y-60N-NW	Yellow
SSL-FS2835B-60N-NW	Blue
SSL-FS2835G-60N-NW	Green
SSL-FS2835WW-60N-NW	WW
SSL-FS2835W-60N-NW	White


3528 SMD LED Strip dimension (unit: mm)


ACCESSORIES:

We provided T1 and T2 type 2pcs for single color series non-waterproof light strip each reel. (For free)
Wiring connector - wire length 20cm

Strip Connection:

Connectors are necessary if you want to connect the cut sections together or connect a section to power. (Connector of strip to strip and connector of strip to power are both available)

1. Cut along the mark line, tear a little bit 3M tape from the mark. If 3M tape is not peeled off a little, it will be not easy to insert the strip into the connector.
2. Pull the black plastic lock out from the connector, insert strip.
3. Make sure the soldering pads fully touch the conjunction metal.
4. Push the plastic lock back towards the middle in the lock position.
3. Do not use too much strength while pulling the plastic lock, otherwise it can destroy the connector.

Notes for flexible LED strip mounting:
1. Please make sure that the back-surface of SMD LED ribbons are clean and dry. Dirt, oil, silicon oil, etc.
2. Make sure that the adhesive backing is removed completely to guarantee perfect mounting.
3. After the SMD LED ribbon is well-positioned, press the strip with an appropriate force.

Installation:


Safety and Maintenance Information:
1. SMD LED ribbon itself and all its components may not be mechanically stressed.
2. Don't damage or destroy conducting paths on the circuit board while installation.
3. To guarantee safety, only qualified personnel are allowed to install LED strips.
4. Make sure SMD LED ribbons are mounted to correct electrical polarity.
5. Parallel connection is highly recommended for its high safety.
6. Serial connection is not recommended because unbalanced voltage drop may damage SMD LED strips.
7. Insufficient and unstable power supply may cause flexible strip damage.
8. Don't install SMD LED ribbons directly on metallic or any other conductive surfaces.



Power supply:
Adequate and proper power supply should be applied to run 150pcs SMD LEDs/5m 5050 LED Light Strip
Power supply with voltage DC 12V should only be used.

Package:
250meters/50rolls packed in one carton
Carton size: 52 x 26 x 28 cm


Applications:
1) Architectural decorative lighting
2) Archway, canopy & bridge edge lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Cove lighting
