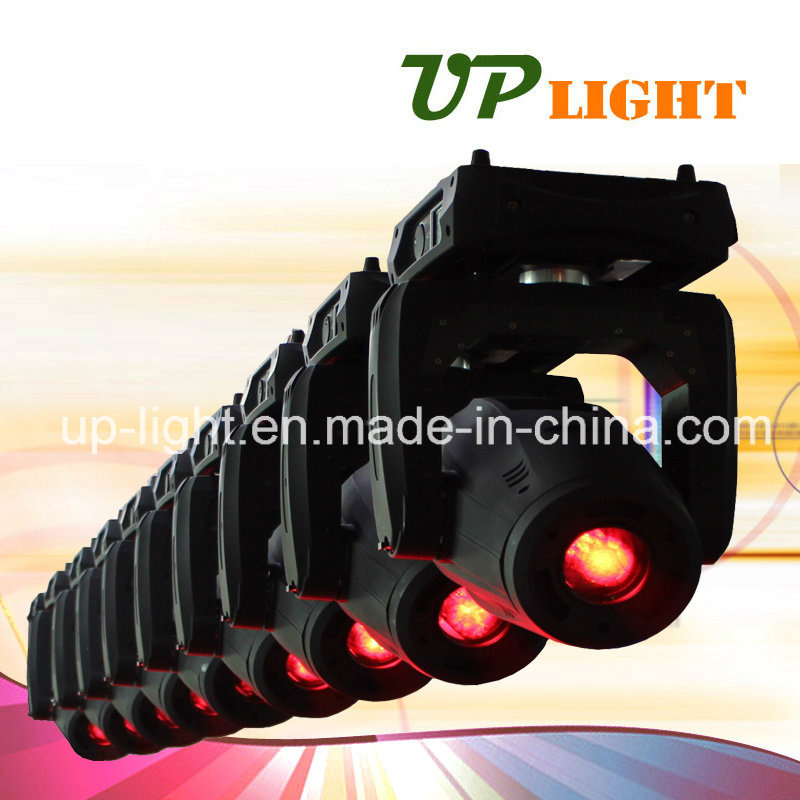

New Spot Moving Head Martin Viper Disco Light
Price: |
US $ 800-900/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
New Spot Moving Head Martin VIPER Disco LightYoutube Demo: https://youtu.be/EkwBvKV1Xew GOBOS
3-PRISM
CMYBrighter: (New 330W Lamp Source Brings Incomparable Pure Brightness)Small size but stronger:(Comparable Output Of 1500W Fixtures,but 1/5 Power Consumption and 1/3 size Only 23kg, 41*37*75cm)Best color system: (CMY color mixing effect and 6 dichroic colors, YL optic system)Best gobo system:(2 gobo wheels: 14 static gobos and 8 rotating replaceable gobos)Most Funtional:(Zoom, Iris, Prism, Focus, Frost Filter, Shutter, with full Moving Heads Spot/Wash functions)TECHNICAL PARAMETERSPOWER SUPPLIEInput power:AC110-240V 50/60 HzLAMP SOURCELamp: Yodn MSD R17 350W,1,500hr, 8000k(Optional Osram Siruis HRI 330W)Power Consumption: 350WOPTICSLens: Anti-reflective coated lensYiLong optic systemOutput Lux: 10,500lux at 20 metersCOLOR SYSTEMColors: Basic color wheel with 6 dichroic mirrors, plus white, two direction rainbow effect.CMY Variable Color Mixing for Infinite Color PossibilitiesGOBO SYSTEM8 rotating gobos plus open, all gobos can be easily replaceable and gobo indexingStatic gobo wheel with 14 indexing gobos plus open, gobo shaking in different speedEFFECTS SECTIONPrism and prism rotating , with 16 prism macrosLinear dimmer in precise speed from 0% ~ 100%Stepless frost, 0%-100% linear change frostMotorized focusIris from 5%~100% with pulse iris effect.Zoom: 9°~27° linear zoomStrobe/shutter: High speed shutter, 0-13 Hz or random strobeCONTROL AND PROGRAMMINGDMX Channels: 3 DMX Modes-21/23/34 Channels DMXControl: 3-pin&5-pin DMXControl board with LCD graphic displayBODYRemote controller lamp's switch function, display light and lamp's using timeStructure: heat-proof plastic+module pressing alloy materialsMOVING BODYPan and tilt movement: 8 and 16 bit resolutionFor smooth and precise motionMovement: Pan: 360°/540°optional, Tilt: 270°Speed of pan/tilt movement adjustableScan position memory, auto reposition after unexpected movementWEIGHT&SIZEWeight: 23kgsDimensions: 409*419*541mmChannel | Function |
21 channel | 23 channel | 34 channel |
CH1 | CH1 | CH1 | Pan |
| CH2 | CH2 | Pan fine |
CH2 | CH3 | CH3 | Tilt |
| CH4 | CH4 | Tilt fine |
CH3 | CH5 | CH5 | Color wheel |
|
| CH6 | Color wheel fine |
CH4 | CH6 | CH7 | Cyan |
|
| CH8 | Cyan wheel fine |
CH5 | CH7 | CH9 | Magenta |
|
| CH10 | Magenta wheel fine |
CH6 | CH8 | CH11 | Yellow |
|
| CH12 | Yellow wheel fine |
CH7 | CH9 | CH13 | Rotating gobo wheel |
CH8 | CH10 | CH14 | Gobo wheel rotation |
|
| CH15 | Gobo wheel fine |
CH9 | CH11 | CH16 | Fixed gobo wheel |
|
| CH17 | Gobo wheel fine |
CH10 | CH12 | CH18 | Prism |
CH11 | CH13 | CH19 | Prism rotation |
|
| CH20 | Prism fine |
CH12 | CH14 | CH21 | Focus |
|
| CH22 | Focus fine |
CH13 | CH15 | CH23 | Zoom |
|
| CH24 | Zoom fine |
CH14 | CH16 | CH25 | Strobe |
CH15 | CH17 | CH26 | Dimmer |
|
| CH27 | Dimmer fine |
CH16 | CH18 | CH28 | Iris |
|
| CH29 | Iris fine |
CH17 | CH19 | CH30 | Frost |
CH18 | CH20 | CH31 | Macro function speed |
CH19 | CH21 | CH32 | Pan/tilt speed |
CH20 | CH22 | CH33 | Macro function |
CH21 | CH23 | CH34 | Lamp on/off, reset |
Prod Model: |
UP-B330V |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Display: |
Touching-LCD Display |
Ballast: |
Electronic Ballast |
Color System: |
Cmy+6 Colors + Open |
Gobo: |
14 Fixed Gobos + 8 Rotating Gobo + Open |
Material: |
Aluminum Alloy |
Emitting Color: |
Changeable |
Strobe: |
Combined Type Double Strobe |
Control Mode: |
Dmx Signal Control |
IP Rating: |
IP20 |
Certification: |
RoHS |
Light Source: |
Philips UHP 15r |
Control Channel: |
21/23/34 Channels |
Voltage: |
100~240 |
