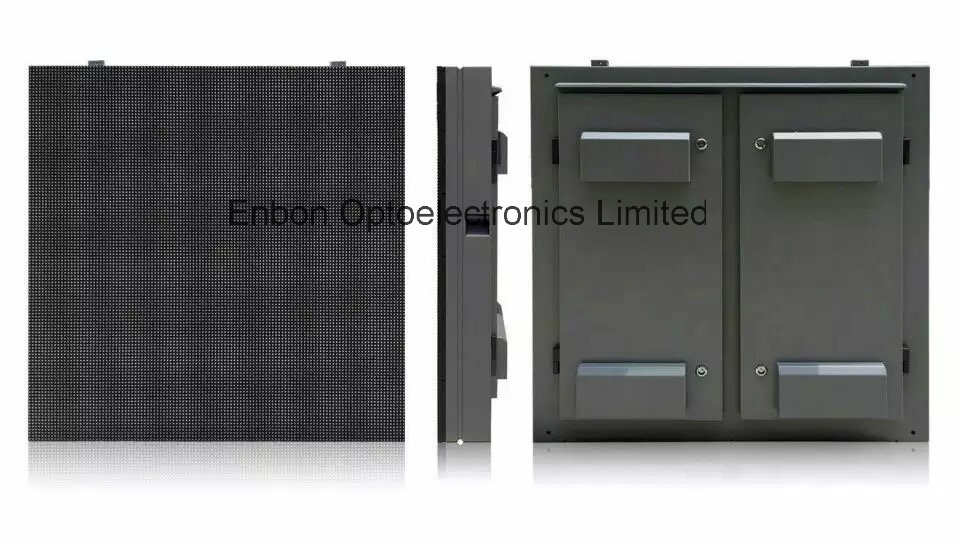

New P10 Advertising LED Display outdoor in China
Application:
1. Outdoor full color LED display screen could be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dustproof, staticproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
Features of the LED video wall:
1) Super-thin and light cabinet can save room and time of installation.
2) High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.
3) No mosaic due to excellent flatness and nice uniformity of light-emitting
4) Wide viewing angles and the horizontal angle can reach 120° The images effect will not Change largely in the range.
5) Real pixel can be adopted for outdoor displays to increase the resolution up to four Times of real pixel, making the images softer and vivider
6) Single-lamp maintenance with low cost.
7) Good heat dissipation capability because of the unique design of vent fan (liking shutter).
8) Environmental-friendly and energy-saving.
Model | P10 DIP outdoor LED display for permanent installation |
Pixel pitch | 10mm |
Pixel density | 10000 dots /sqm |
Module size(W*H) | 160 mm(width)*160 mm(height) |
Module pixels(W*H) | 16 dots *16 dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/4 scan |
LED lamp type | Water-proof DIP346 |
Cabinet size(W*H*D) | 960mm*960mm, 800mm*800 etc |
Color scale | 65,536 degree |
View angle(H/V) | 110/70 degree |
Brightness (White balance) | about 7500cd/sqm. |
Power consumption(one cabinet) | Max:750W/sqm. Average:200W/sqm. |
Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
Net weight | 60Kg/sqm (iron cabinet), 40Kg/sqm (Aluminum cabinet) |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%-95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥2000Hz /s |
Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 47--63Hz |
LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protections for outdoor display | IP65 |
Maintenance way | Rear Access |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
