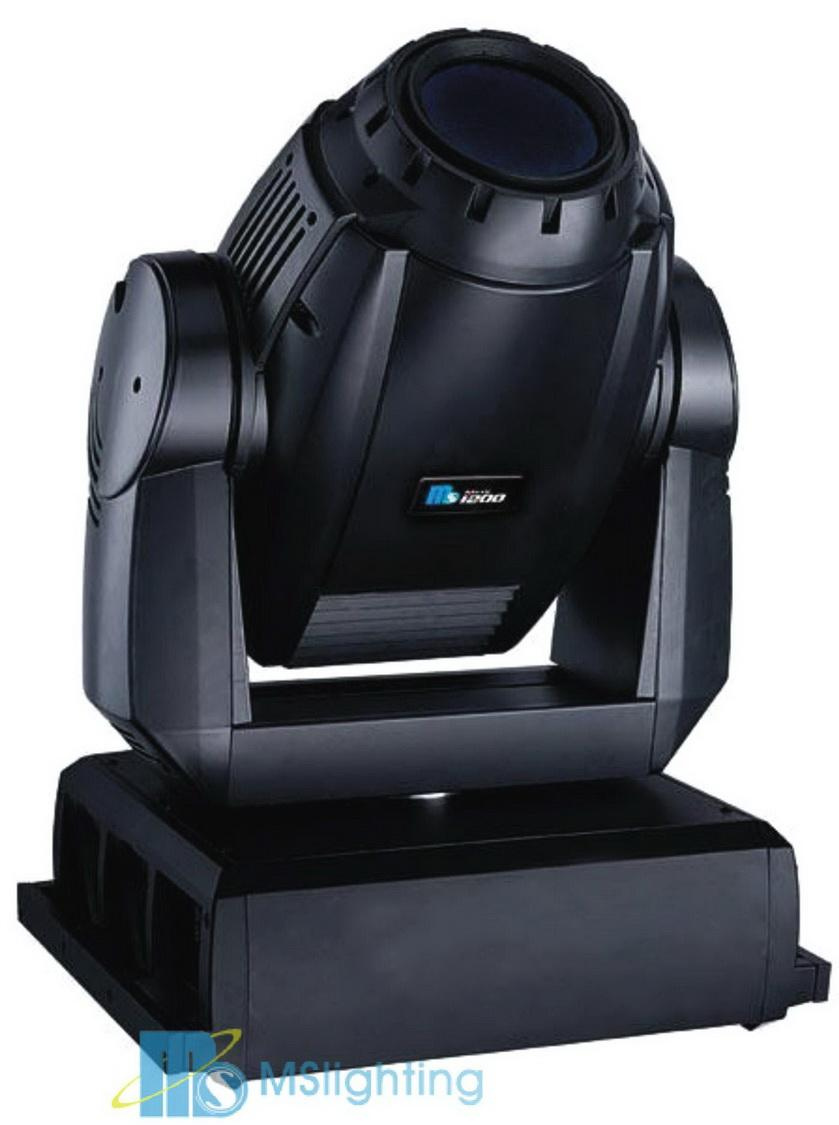

Moving Head Light / Stage Light

Model: MHS 1200
Channels: 24CH
Body Size: L495*W400*H770 mm
N. W: 52.5 Kg
Class: 1200W Moving-Head light
Power: 220V 50Hz/60Hz
Power Consumption: 1500W
Control Signal: DMX 512
Static Gobo wheel: 4 gobos + open
Rotation Gobo wheel: 4 gobos + open
Color wheel: 7 colors + open
Prism wheel: 2-facet prism + 4-facet prism +Frost +Trapeziaprism + Semiprism
Adjustable aperture

7main colors adding 5mixed colors, achieving high speed rainbow a effect
Mechanical linear DIMMER and 1-10 times/s high speed STROBE effect
Horizontal 450° And vertical 270° Scanning range, smooth scanning action and accurate orientation
Precise adjustment on horizontal and vertical position
Precise speed adjustment on horizontal and vertical position
2-motor motivated on both pan and tilt movement
4 fixing elegant GOBO (4 fixing GOBO +1white)
4 rotating elegant GOBO (The other gobos can order, glass gobos included)
Pattern internal light rotating function, freely adjusting fast, low speed, clockwise and anticlockwise
Automatic focusing function
Double magnifier, color temperature effect
3 primary color effect (C, M, Y)
3 primary speed adjustment
4-facet prism + 2-facet prism + Trapezium Prism + Semi Prism, Prism rotating clockwise and Anticlockwise
Built-in over heat protection and high voltage protection
Compatible with DMX 512 international digital signal
According to various kinds of safety standards, IP20 protect grades, The cable accords to the CE20/22 standard

DMX 24CH:
DMX CHANNELS
CH 1: Shutter / Strobe
CH 2: Dimming
CH 3: Color wheel
CH 4: Pan
CH 5: Tilt
CH 6: Pan fine
CH 7: Tilt fine
CH 8: Pan/Tilt speed
CH 9: Iris
CH 10: Static gobo wheel
CH 11: Static gobo wheel shake
CH 12: Rotation Gobo
CH 13: Gobo rotation
CH 14: Focus
CH 15: Zoom
CH 16: Prism
CH 17: Prism rotation
CH 18: Frost
CH 19: Cyan
CH 20: Magenta
CH 21: Yellow
CH 22: C/M/Y Speed
CH 23: Vector mode
