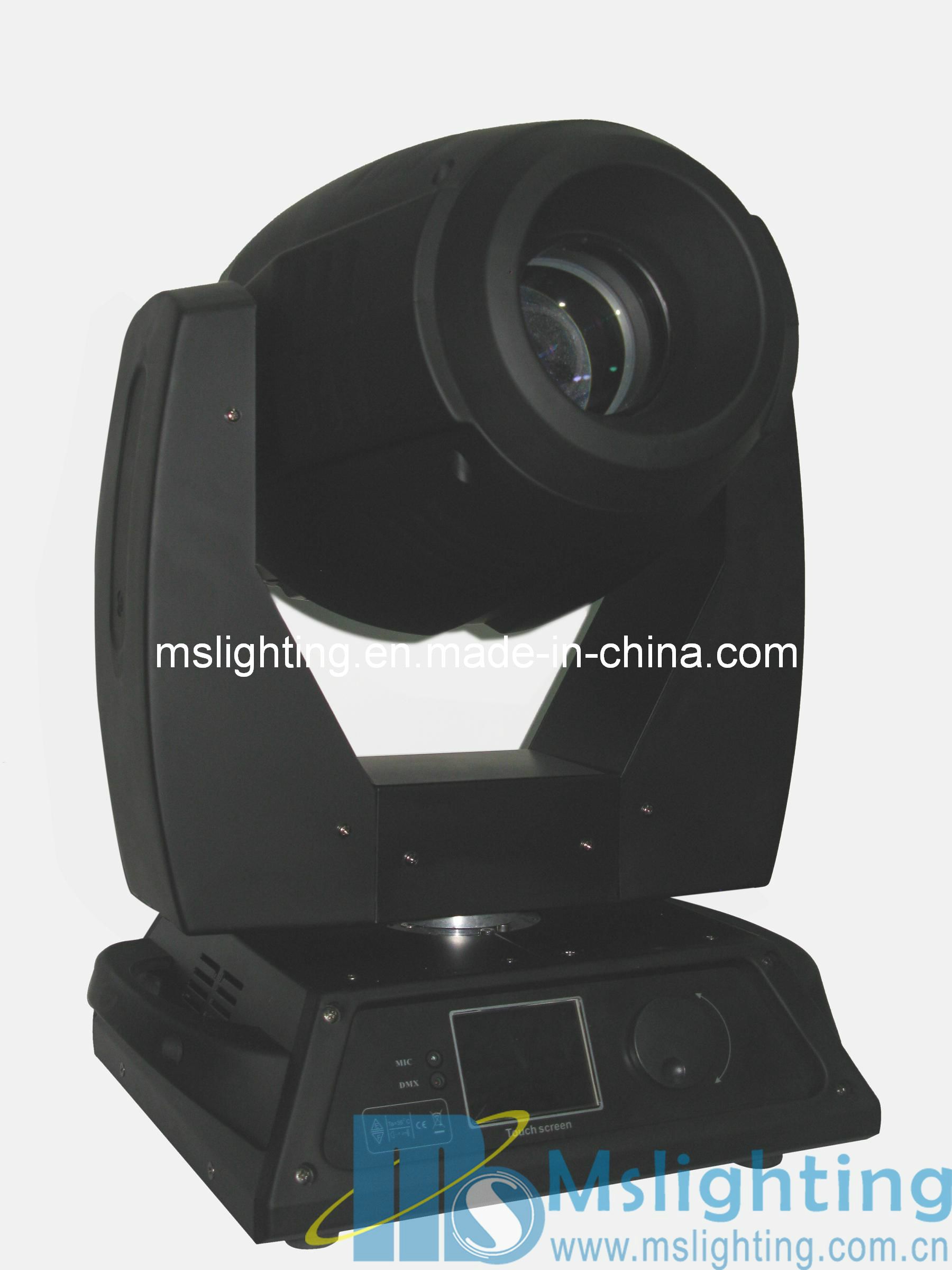

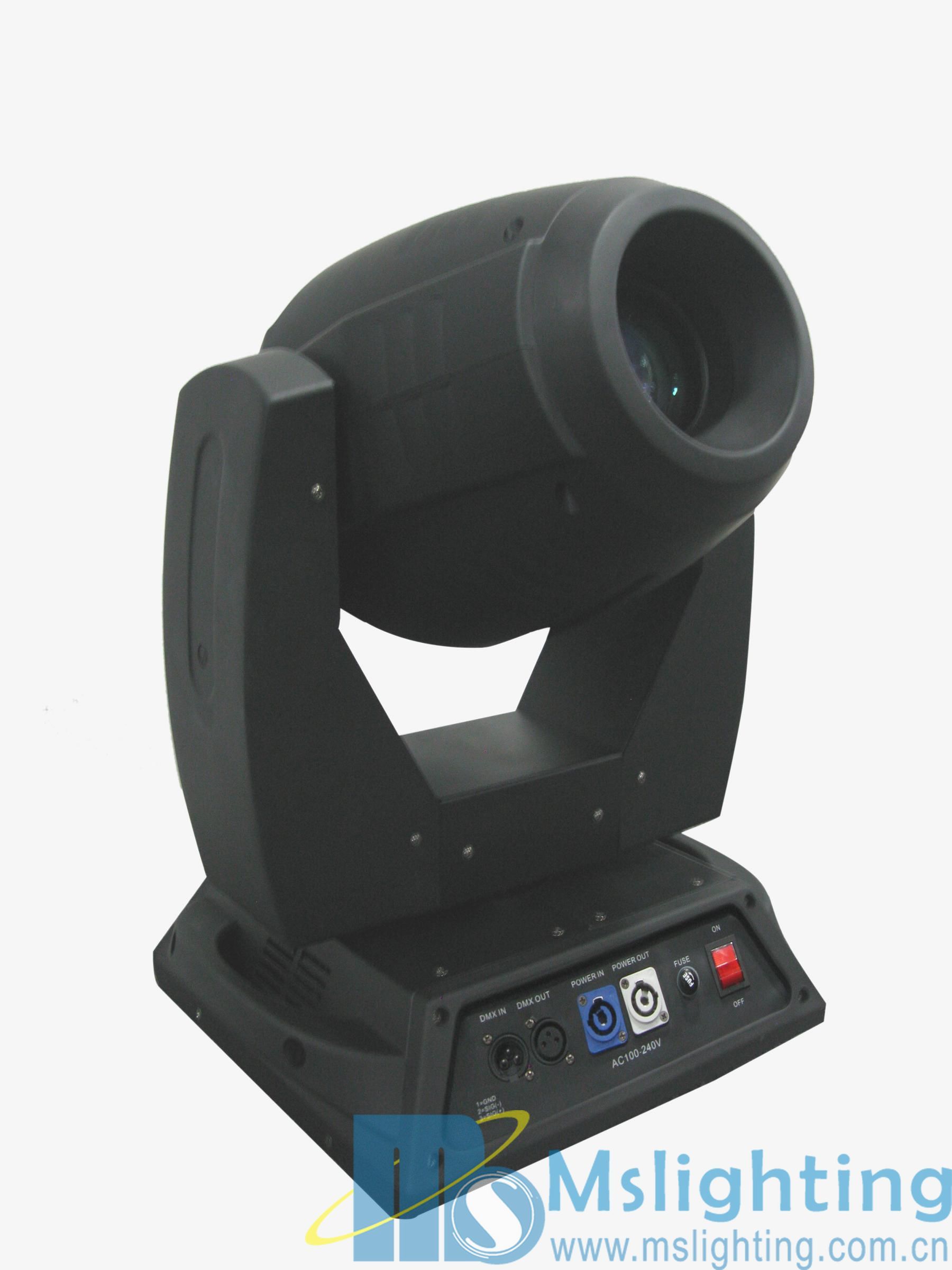

MHLED 200D 200W LED Moving Spot
Voltage / frequency::100-240V AC,50/60HzConsume Power:280W LAMP:200W RGBW 4IN1 Multi-Color LED LampColor Range: 16.7 million Additive RGBW colors; continuously variableintensity (256×256×256=16777216) + White, rainbow effect Fixed Gobo wheel::7gobo+White,flowing Effect from slow to fast.Rotation Fixed Gobo wheel::7gobo+White,Double-directional variable speed rotation3 Prism:Speed and direction adjustable 3-facet prismDimmer/Strobe:Dimmer,1-20times/sec. Dimmer: Electronic Rotation Angle:X 540°,Y 270°. Control panel: LCD Touch Screen displayControl signal: DMX512/RS232 compatible 21CHModes of operation: stand-alone, DMX512, master / slave.Weight: 19.2 kgLamp size: 340 * 260 * 555mmPacking size: 500 * 440 * 440mm
|
Housing Material |
Aluminum |
|
Housing Color |
Black/White |
|
Aperture Cover |
Aluminum |
|
Certification: |
CE,EMC, LVD, RoHs |
|
Electronic Dimmer: |
10-100% linear dimmer |
|
Electronic Strobe: |
1-30 flashes/second |
|
LED Life Time |
80000-100,000 hours |
|
Power Consumption |
280W |
|
Light Projecting Distance |
5-200M |
|
IP Rating |
Indoor |
|
Operating Temperature |
-20ºC-+45 ºC |
|
Power In: |
Fixed |
|
CRI (Ra>): |
95 |
|
Accessories: |
Power cable,power con cable,omega clamp, XLR DMX Signal cable,Safety Rope |
|
9. Thermal: |
Maximum ambient temperature: 40° |
|
Maximum housing temperature: 60° |
|
DMX CH LIST: |
|
CH1 |
General Dimmer |
|
CH2 |
R |
|
CH3 |
G |
|
CH4 |
B |
|
CH5 |
W |
|
CH6 |
Strobe |
|
CH7 |
Frost |
|
CH8 |
Color |
|
CH9 |
Color Change |
|
CH10 |
PAN |
|
CH11 |
PAN Fine |
|
CH12 |
TILT |
|
CH13 |
TILT Fine |
|
CH14 |
Fix Gobo 1 |
|
CH15 |
Rotation Gobo |
|
CH16 |
Gobo Rotation |
|
CH17 |
Focus |
|
CH18 |
Prism |
|
CH19 |
Prism Rotation |
|
CH20 |
X\Y Speed |
|
CH21 |
Reset |
|
|
|
|
Packaging & Delivery |
|
|
Packaging Detail: |
Standard Export packing by carton or OEM package |
|
Delivery Detail: |
2-5 days for sample , 5-12 days for mass quantity order |
|
Shipping |
By DHL, UPS, FedEx, EMS or TNT, boat ,Air. |
|
Guarantee |
we guarantee that all the product have been shipped after the testing , if there any damage caused in transit , we can not control the entire process , if so , we are happy to communicate with you friendly solution. |
|
Items have 2 YEAR warranty. ( Except lamp-house). |
|
Note |
We can declare it as a 'GIFT/Sample' with a lower value Which you may reduce tax. But This lower price does not reflect the total price you paid or the market value of the product |
MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
