TECHNICAL PARAMETERS
POWER SUPPLIE
Input power:AC100-240V 50/60 Hz
LED:8PCS 10W high power RGBW LED
DMX channel:13/46channels
Movement:Pan/Tilt:X axis540degree, Y1 axis 120degree, Y2
axis120degree
Control mode:DMX512/Master-Slave/Auto run
Display:Blue blueground LCD display
Beam angle:3degree
Pan/tilt speed:3 selectable for High, medium and low speed
WEIGHT&SIZE
N.W: 9kgs
G.W:11kgs
size: 32*41*28CM
Packing size:51*38*38CM
G.W:11kgs
size: 32*41*28CM
Packing size:51*38*38CM

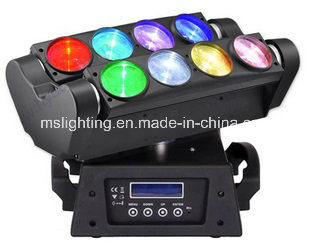

| Model Number: | MHLED 810C |
| Light Source: | 8*10W White / RGBW 4IN1 Multi-Color |
| Beam Angle | 8° |
| Power Consumption | 150W |
| Input Voltage(V): | 90-250V ,50-60Hz |
| Pan/Tilt | 540°/ Y1:120°,Y2:120°, |
| Pan/Tilt Speed: | 3 select able for High,Medium and low speed |
| Pan/Tilt Resolution | 8/16 bit |
| Display | LCD Display |
| Lamp Luminous Efficiency(lm/w): | 99% |
| CRI (Ra>): | 95 |
| Lamp Luminous Flux(lm): | 5600 |
| DMX 512 CH | White: 8/21CH,RGBW:13/26CH |
| Control mode: | DMX 512 ; Autorun and Master/Slave,sound active, |
| Display(Setting and Addressing) : | 4-digit LED / LCD Display |
| DMX Data In/Out: | XLR 3Pin/5PIN |
| Electronic Dimmer: | 0-100% linear dimmer |
| Electronic Strobe: | 1-30 flashes/second |
| Scan Angle | Vertical 120 |
| Beam Angle | 3 |
| warranty: | 2 year |
| Switch Power Supply | Built-in and auto switching |
| Power In: | Fixed |
| Working Lifetime(Hour): | 80000 |
| Drive Mode: | onstant Current |
| Cooling: | Entire casing as heat sink plus noiseless fans |
| Flicker Free | Refresh Rate >2000 Hz |
| IP Rating: | IP33 |
| Brand Name: | MSLighting |
| Shell colour | Black |
| Shell Material | Metal |
| Key point: | Temperature-protected handly |
| Packing size: | 395×234x180mm |
| Weight: | 5.5 KG |
| Working Temperature | -40 °C- +60°C |
| Certification: | CE,EMC |
| Usage: | Theatres, stage , robust housing |
MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
