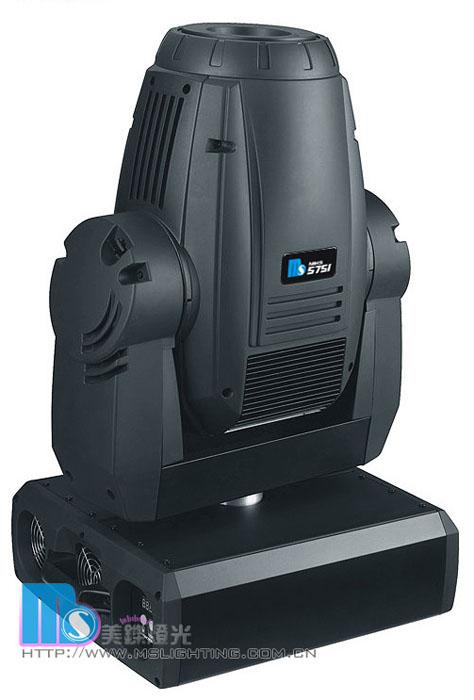

Moving Head Light / Stage Light

Moving Head Spot, Stage Lighting, DMX Light, Stage Light, Professional Lighting, Disco Light, DJ Lighting, DJ light

MODEL: MHS 575I
Channels: 16CH/22CH
Body Size: L520*W520*H770 mm
N. W: 41 Kg
Class: 575W Moving-Head light
Power: 220V 50Hz/60Hz
Lamp: HMI 575W
Power Consumption: 680W
Static Gobo wheel: 5 gobos + open
Rotation Gobo wheel: 4 gobos + open
Color wheels: 2 colors wheel + 2 Color temperature filters + Frost + open, 7 colors + open
Prism wheel: 3-facet prism
Adjustable aperture
7 main colors adding 5mixed colors, achieving high speed rainbow a effect
Mechanical linear DIMMER and 1-10 times/s high speed STROBE effect
Horizontal 450° : And vertical 270° Scanning range, smooth scanning action and accurate orientation

Precise adjustment on horizontal and vertical position
Precise speed adjustment on horizontal and vertical position
Precise motor motivated on both pan and tilt movement
Stopper function on the rotating effect wheel and position moving
5 fixing elegant GOBO (5 fixing GOBO +1 white)
4 rotating elegant GOBO (The other gobos can order, glass gobos included)
Pattern internal light rotating function, freely adjusting fast, low speed, clockwise and anticlockwise
Automatic focusing function
3-facet prism
3 convection cooling-fan, optimize internal air duct way, heat elimination rapidly
Built-in over heat protection and high voltage protection
Compatible with DMX 512 international digital signal
PFC, Power factor compensate
According to various kinds of safety standards, IP20 protect grades, The cable accords to the CE20/22 standard

DMX 22CH:
Channel 1: Iris
Channel 2: Color 1
Channel 3: Color 2
Channel 4: On/OffStrobe
Channel 5: Dimmer
Channel 6: Pan 450°
Channel 7: Tilt 270°
Channel 8: Pan/Tilt speed adjustable
Channel 9: Pan fine 3.6°
Channel 10: Tilt fine 3.6°
Channel 11: Gobo wheel 1
Channel 12: Gobo 1 Shake
Channel 13: Gobo wheel 2
Channel 14: Gobo rotation
Channel 15: Focus
Channel 16: Zoom
Channel 17: Prism
Channel 18: Prism rotation
Channel 19: Gobo Animation wheel
Channel 20: Gobo Animation wheel speed adjustment
Channel 21: Vector mode
Channel 22: Reset
DMX 16CH:
Channel 1: Iris
Channel 2: Color 1
Channel 3: Color 2
Channel 4: Dimmer, On/OffStrobe
Channel 5: Pan 450°
Channel 6: Tilt 270°
Channel 7: Pan fine 3.6°
Channel 8: Tilt fine 3.6°
Channel 9: Pan/Tilt speed adjustable
Channel 10: Gobo wheel 1+ Shake
Channel 11: Gobo wheel 2+ Shake
Channel 12: Gobo rotation
Channel 13: Focus
Channel 14: Prism
Channel 15: Prism rotation
Channel 16: Reset
