Moving Head Wash, Stage Lighting, DMX Light, Stage Light, Professional Lighting, Disco Light, DJ Light

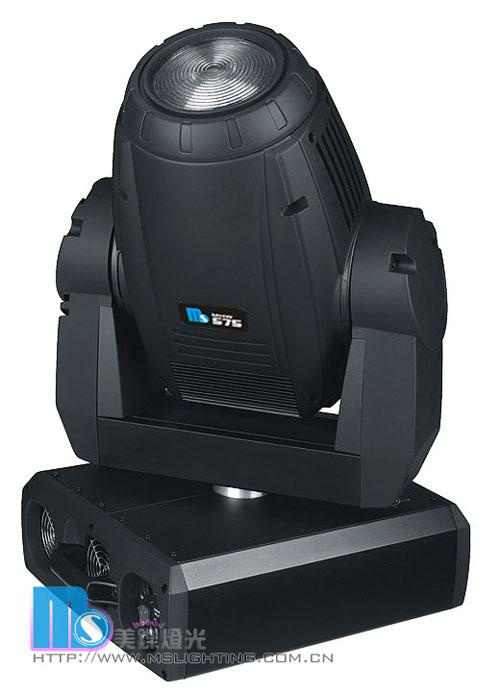

Model: MHW 575
Channels: 16CH
Body Size: L440*W395*H690 mm
N. W: 38.5 Kg
Class: 575W Moving-Head light
Lamp: MSR 575w/2 GX9.5
Power consumption: 775w
Control Signal: DMX 512
Color wheel: Colors + open, CMY
Adjustable aperture
4 colors + open + Color temperature filter, achieving high speed single way rainbow and scrolling effect
Mechanical linear DIMMER and 1-10 times/s high speed STROBE effect
Horizontal 450° And vertical 270° Scanning range, smooth scanning action and accurate orientation
Precise adjustment on horizontal and vertical position
Precise speed adjustment on horizontal and vertical position
Stopper function on the effect wheel rotating and position moving
Electronic linear dimming
Special light deflexion effect
Adjusting the flare projection angle
3 primary color effect (C, M, Y, K)
3 primary speed adjustment
7 convection cooling-fan, optimize internal air duct way, heat elimination rapidly
Built-in over heat protection and high voltage protection
Compatible with DMX 512 international digital signal
According to various kinds of safety standards, IP20 protect grades, The cable accords to the CE20/22 standard
DMX 512 CHANNEL:
CH 1: STROBE/ SHUTTER
CH 2: DIMMER
CH 3: COLOR WHEEL (Rainbow effect)
CH 4: PAN
CH 5: TILT
CH 6: PAN FINE
CH 7: TILT FINE
CH 8: X/Y SPEED
CH 9: Cyan
CH 10: Magenta
CH 11: Yellow
CH 12: C/M/Y SPEED
CH 13: C/M/Y AUTO MIXING COLOR
CH 14: ZOOM
CH 15: VECTOR
CH 16: RESET
