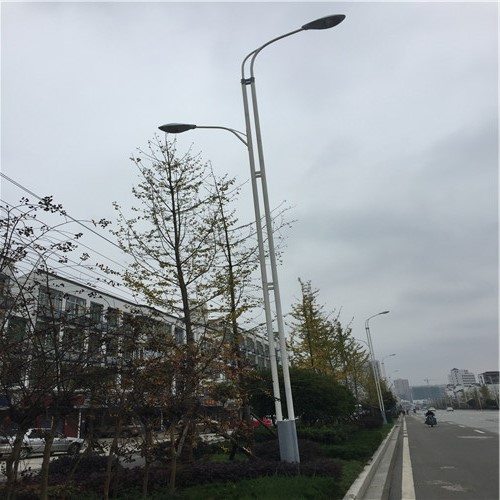

Home LED Light Products Most Powerful Jinshang 100W General Electricity Street Light with 10m Pole

Most Powerful Jinshang 100W General Electricity Street Light with 10m Pole

Most Powerful Jinshang 100W General Electricity Street Light with 10m Pole
Price: US $ 310-325/Piece
Trade Terms: FOB,CIF
Min Order: 15/Piece
Pay Type: L/C,T/T

Product Description
Brief Specification for 100W LED Solar Street Light design based on Africa's average solar radiation condition 5.0KWH,Lighting hours: 11-12 Hrs/Day*3-4 days

      Detailed Specification for 10M pole 100W LED Solar Street Light

Part Name and Lifespan

Technical Specification

Solar Panel:
Lifespan:20-25 years

200W*2PC Polycrystalline. High Efficiency. A-class
Adding Aluminum Frame, Tempered Glass.

Gelled Battery
Lifespan:5-8 years

200Ah/12V*2PC, Gelled battery, Sealed Type.
Deep cycle. Maintenance Free

Intelligent Solar Controller
Lifespan:5-10 years

20A/24V,IP68. Automatic Light and Time Control
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after designed Hours later.(11-12 Hrs)

Light source: High Power LED
Lifespan: More than 50000-100000Hrs

100W LED, White Color, 7800LM/PC,6500K,IP65,
High Power, High Brightness.

Lamp Housing:
Lifespan: More than 20 years

Die-casted Aluminum, IP65
High transmittance & Density toughened glass,

Battery Box:

Engineer Plastic,underground of the pole.

GI Pole System:
Lifespan: More than 20 years


10M Height, tapered Pole, Steel,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H



   Solar Street Lamp Working Principle:
1. LED solar street light relies on solar energy, which is clean, endless and
   environment-friendly.
2. The system is mainly composed of solar panel, light source, controller and
    free-maintenance battery.
3. In daytime, when there is sunshine, the solar panel can convert the solar energy to
   electric energy and store it in the battery. At night or rainy or cloud condition, the
   battery shall supply power for normal lighting.
4. The controller can judge the brightness of daylight and automatically switch on the
   light. The whole process is operating in completely automatic mode, without human
   action.

Pls send us more details about your purchasing,
Thank you for your time and attention.
Prod Model: JS-A20160110100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Luminous Efficiency: 80-120 Im/W
Height: 3-12m
Light Luminous: 3000k
Light Source: Energy-saving Lamps
Lamp Body Material: Aluminum Alloy
Light Type: Energy Saving
Color Temperature: Cool White
Technics: Electroplating
Illumination Time: 6h
Charging Time (',H): 6
Usage: Street
IP Rating: IP65
With Light Source: With Light Source
Power: 100W
Cell Type: Gelled or Lead-Acid Solar Battery
Certification: CCC,ISO9001
Voltage: 12-24V
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.

Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances

We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.

Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.

In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
