HIGH QUALITYmining lamp mine lamp led miner's lamp mining safety lamp miner's safety lamp working lamp head lamp mining lamp
mining lamp miner lamp led headlamp

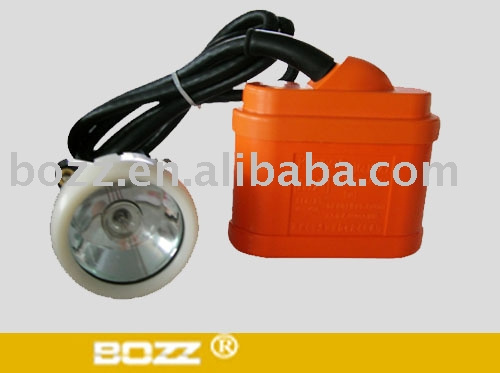

mining lamp of KJ8LM(A)
Main technical parameters:
No
Item
Unit
Data
1
Rated capacity
Ah
8
2
Nominal voltage
V
3.65
3
Lighting time
h
12
4
LEDlight source
Rated voltage
V
4.3
Main light source/power
mA/W
700/3
Auxiliary light source
mA
5
Max illuminance at 1m
Begin lighting
Lx
900
Lighting 11h
Lx
600
6
Weight
g
880
7
Nos of battery cycle
times
500
8
Carton packing
roll/CNT
15
9
Packing size
cm
48*37*29.5
10
With charger
pcs
1
Features:
1) Adopts large capacity Nickel Hydrogen battery
2) Completely free maintenance without any acid and alkali pollution 3) Small in size , light in weight,simple charging,easy useage 4) With short circuit protection device,temperature protection device and over-current protection device.
Usage:
It is suitable for mineral industry,tunnel projects,construction and maintenance for power,communication,highway,railway at night,night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood,rescuing and marine use.
Technical description:
1.Battery (Nickel hydrogen)
Battery adpot high performance high-capacity enviromental battery,Part of battery has temperature device and over-current protection device ,top battery has short-circuit protection device.When miners lamp occured a short-circuit,it can cut off the power source within one millisecond 1ms and After the fault remove, the short-circuit device auto resume to normal working state.therefor it is very safe for miners.The cable has stretch-proof ,fire resistance function.The battery has IP54 waterproof class.
2. LED:
it adpot 1W high-power LED,The life is more than 50000 hours.illumiance is more than 3000 lux/60lm,it adpot two sets of light source,one is main with six auxiliary light source or main-axiliary in one ,when main light source lose function,pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency).
3.Charger:Nickel hydrogen
The charger is developed specialized for nickel hydrogen battery ,it adpot intelligent one core controller,it is improved lifetime and safety for battery.The charger light displays yellow when it gets electricity,it displays red when it is charging,it displays green when it is over-charging.If battery is over-discharging,it will use small battery to repair charging ,then it is going into normal charging .
Product name:
mining lamp miner's lamp led lamp headlamp lamp led mining safety lamp led head lamp
safety lamp led miner's lamp mining safety lamp miner's safety lamp working lamp head lamp
mining equipment led miner safety lamp miner safety lamp miner working lamp led safety lamp headlight miner light mine lamp buy mining lamp mining machine portable lamp industrial
lighting mining light miner lamp mining explosion-proof lamp miner cap lamp miners lamp
Certificate:
1.Quality Management System Certificate No:GB/T19001-2000 idt ISO9001:2000
2.CE Declaration Of Conformity No:SCC(07)-626-10-EMC
3.Explosion-proof Certification Of Compliance No.KD06250,KD06251
Founded in 2011, Wenzhou Boshi Safety Products Co., Ltd is a professional manufacturer specializing in safety lockouts, safety labels and signs and personal protection equipment. We have our Research and Development Team to bring out various kinds of products and solutions to meet our dedicated customers’ Requirement. Our company have gained dozens of certification about appearance, function, shell and invention. The research and development cost is more than 2 million every year. Several safety lockout fill in gaps in China and World. Our company is devoted to 8 series and thousands of types products. Every year, a lot of safety lockouts are customized for customers on the scene where should be locked on. Our company make a contribution to Chinese and global labor security. We are pleased to introduce ourselves as the most resource, most kinds and largest scale safety lockouts manufacturer in Chinese mainland. Quality pursuing and Innovation are never ending process with us.
Wenzhou Boshi Safety Products Co., Ltd registered the trademark in China, the United States, Canada, European Union, Russia, South Korea and some South American countries in 2014, through the holding company (Wenzhou Boshi Electrical Technology Co., Ltd. )
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
