- Type: Headlamps
- Light Source: LED
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: BOZZ
- Model Number: KL5LM(B)
- Usage: mining
- Power Source: Rechargeable Battery
- Lighting Period (h): >12
- Battery Type: Lithium Ion
- Certification: CCC, CE, CE
- IP Rating: IP68
- Warranty(Year): 1
- Lamp Power(W): 3
- Style: Shock-resistant
- Function: Illumination
- Power Generation: Switch
- Color: blue
- Material: ABS
Packaging & Delivery
Packaging Details: | Carton36*22*45 |
---|
Delivery Detail: | one week |
---|

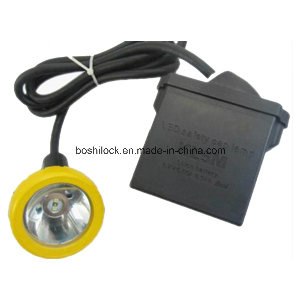

HINA 2015 HIGH QUALITY NEW KL5LM led mining lighting
A truly powerful Head Lamp that every Miner
Needs,Explosion Proof, Water Proof IP68, Electric Shock Proof, Moisture Proof and Impact Proof
No | Item | Unit | Data |
1 | Rated capacity | Ah | 5.5 |
2 | Nominal voltage | V | 3.7 |
3 | Lighting time | h | ≥16 |
4 | LEDlight source | Rated voltage | V | 4.2 |
Main light source/power | mA | 400 |
Auxiliary light source | mA | 150 |
5 | Max illuminance at 1m | Begin lighting(1meter) | Lx | 12000 |
Lighting 11h | Lx | 10000 |
6 | Weight | | g | 800 |
7 | Nos of battery cycle | | times | ≥800 |
8 | Carton packing | | roll/CNT | 20 |
9 | Packing size | | cm | 36*44*36 |
Usage:
It is suitable for coal mine, mineral industry,tunnel projects,construction and maintenance for power,communication,highway,railway at night,night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood,rescuing and marine use.
Certificate:
1.Quality Management System Certificate No:GB/T19001-2000 idt ISO9001:2000
2.CE Declaration Of Conformity No:2007-C269-LVD
3.Explosion-proof Certification Of Compliance No.KD06250,KD06251
4.GB7957-2003:General safety
5.performance request for cap lamp.
6. MT927-2004: KL type cap lamp.
7.EN62013, EN620
VERY POPULAR MINING LAMP BIG PICTURE- BOZZ KL5LM-B 12000LUX CREE LED li-ion battery
1PCS USA CREE 5W high power LEDs for main light source.
2PCS LEDS for auxiliary light source.
Usage:
It is suitable for mineral industry,tunnel projects,construction and maintenance for power,
communication,highway,railway at night,night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood,rescuing and marine use.
Features: Lost cost ,high safety.
1. LED : less energy and super brightness LED
2. Battery : safety lithium ion battery
3. Small in size, light in weight, free maintenance, explosion prevention, waterproof, long life
4. Lighting time : more than 20 working hours, double light source design
5. Charger AC input : AC110 ~ 240V, 50/60Hz DC output : DC4.2V,1A
6. Working temperature : -10 ~ 45 degrees
7. Relative air humidity : <= 95% +- 3RH
Product name:miner's lamp led lamp headlamp lamp led mining safety lamp miner's safety lamp working lamp head lamp mining equipment led miner lamp miner safety lamp miner working lamp led safety lamp headlight miner light mine lamp buy mining lamp mining machine portable lamp industrial lighting mining light miner lamp mining explosion-proof lamp miner cap lamp miners lamp
Technical specification:
1.Charger(Lithium ion):
It adpot isopiestic pressure current limiting charging way.Its setting value volatge is 4.2V(normal charging voltage is 4.2V).When charging max current is 1A and voltage approachs to 4.2V,charging current will reduce gently.When batterys voltage is 4.2V and current is less than 100A,the indicator light will display green color.this mean that miners lamp can be used normally.When its charging ,the indicator light will display red color.
2.LED:it adpot 1W high-power Led,The life is more than 50000 hours.illumiance is more than 3000 lux/60lm,it adpot two sets of light source,one is main - six auxiliary light source or main-axiliary in one .when main light source lose function,pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency)
3.Battery (Lithium ion)
It adpot new styled lithium ion battery which is with over-charging , over-discharging and a short circuit protection fuction.Every battery cycled lifetime is more than 500 times.It has 75% rated capacity after using 500 times.Its a newest environmental protection battery.
