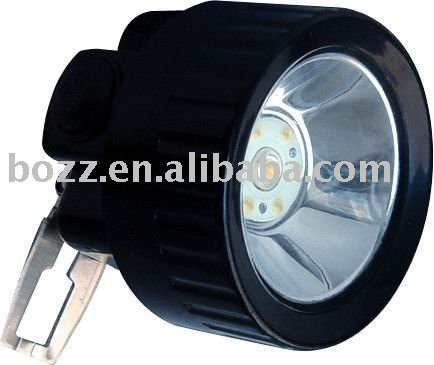

mining light HIGH QUALITY 2Ah
Lighting time 13h
Illuminance 1500lux
mining lamp cap lamp led headlamp caplamps caplamp headlamps miner lamp miner's lamp LED miner lamp LED mining lampMining lamp Main technical paremeters:
No
Item
Unit
Data
1
Rated capacity
Ah
2
2
Nominal voltage
V
3.7
3
Lighting time
h
13
4
LEDlight source
Rated voltage
V
4.2
Main light source/power
mA
200
Auxiliary light source
mA
60
5
Max illuminance at 1m
Begin lighting
Lx
2000
Lighting 11h
Lx
1500
6
Weight
g
320
7
Nos of battery cycle
times
500
8
Carton packing
roll/CNT
20
9
Packing size
cm
36*22*45
10
With charger
pcs
1
Features:
.Lost cost ,high safety.
1. LED : less energy and super brightness LED
2. Battery : safety lithium ion battery
3. Small in size, light in weight, free maintenance, explosion prevention, waterproof, long life
4. Lighting time : more than 12 working hours, double light source design
5. Charger AC input : AC110 ~ 240V, 50/60Hz DC output : DC4.2V,1A
6. Working temperature : -10 ~ 45 degrees
7. Relative air humidity : <= 95% +- 3RH
Usage:
It is suitable for mineral industry,tunnel projects,construction and maintenance for power,
communication,highway,railway at night,night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood,rescuing and marine use.
Technical description:
1.Battery (Lithium ion)
It adpot new styled lithium ion battery which is with over-charging , over-discharging and a short circuit protection fuction.Every battery cycled lifetime is more than 500 times.
It has 75% rated capacity after using 500 times.Its a newest environmental protection battery
2.LED:
it adpot 1W high-power Led,The life is more than 50000 hours.illumiance is more than 1200 lux/30lm,it adpot two sets of light source,one is main - six auxiliary light source or main-axiliary in one .when main light source lose function,pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency)
3. Charger(Lithium ion):
It adpot isopiestic pressure current limiting charging way.Its setting value volatge is 4.2V(normal charging voltage is 4.2V).When charging max current is 1A and voltage approachs to 4.2V,charging current will reduce gently.When batterys voltage is 4.2V and current is less than 100A,the indicator light will display green color.this mean that miners lamp can be used normally.When its charging ,the indicator light will display red color.
Product name:
mining lamp miner's lamp led lamp headlamp lamp led mining safety lamp led head lamp
safety lamp led miner's lamp mining safety lamp miner's safety lamp working lamp head lamp
mining equipment led miner safety lamp miner safety lamp miner working lamp led safety lamp headlight miner light mine lamp buy mining lamp mining machine portable lamp industrial
lighting mining light miner lamp mining explosion-proof lamp miner cap lamp miners lamp
