Media advertising display rental Full Color curved display outdoor Usage rental LED display

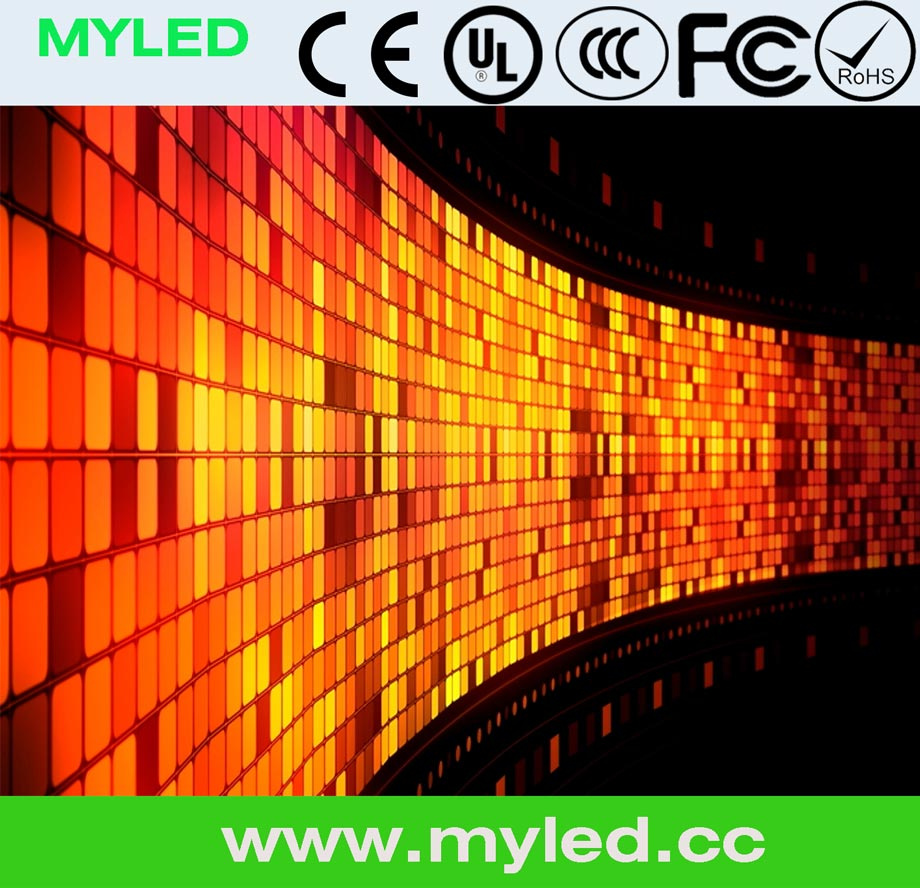

1.MYLED Curve LED Display description
LED screen can be fully used to replace traditional advertising media tools,furthermore,LED video wall has unmatched display and visual experience.Apexls develop the LED ball display under these conditions.With the high difficulties on the design and production, LED global display is an important milestone in the development of the LED display.
2. MYLED Curve LED Display characteristics
Customized
Can be customized required as any sizes and any pixel pitches.
Application
For outdoor or indoor.
Installation
Support hanging installation, stand on ground or mobile using.
Viewing angle
Perfect viewing angle with 360 degree.
Controlling
Both synchronous and asynchronous control way is available for LED balls.
Effect
The creative appearance and wonderful showing effect attracts most attention during the usage.
Structure
Aluminum material structure which lighter weighs and better for heat dissipation.
Design
Special PCB design which can make sure the showing picture distortionless.
Maintain
Support front and rear maintenance.
3.MYLED Curve LED Display application place
Museum, Planetarium, Exhibition, Sports Stadium, Airport, Hotel, Railway Station, Shopping Mall, Bar. etc.
1. Durable fresh color and High brightness
65536 grey scale and the 281 billions color and more than 1200 HZ refresh rate ensure wonderful video color presentation
Patented design of anti-glare mask with high temperature resistant coating on the surface to absorb direct light, reduce glare, and improve the contrast ratio of display.
Strictly selected LED lamps, high-consistency constant current driving IC, and high-end control system, supporting high brightness and high color uniformity.
2. Energy Saving
Adopt high-brightness LED with low consumption and 90% efficiendy power supply saving 20% power energy.
Additional temperature, display and brightness management can also save5% power energy.
3. Stability and reliability
Precise manufacturing process keeps the modules rugged and durable.
IP65 protection grade, waterproof rubber gasket and military-grade conformal coating enable the display to work in all weather outdoor environments.
Aircraft-grade connectors of power supply and signal connection are of high reliability, good conductivity and durability, suitable for rapid connection and high frequency use.
4. Convenient
Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and display mode as VGA+VIDE and VGA.
Display all kinds of word, text, graph, picture, video, 2-dimensional, 3- dimensional animation and TV and VCD other information with your PC does synchronously.
Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
| Specification | P10 outdoor full color |
| Pixel pitch(mm) | 10mm |
| LED Type | 346 |
| Pixel composition | 1R1G1B |
| Scan method | 1/4 |
| Screen brightness(cd/sqm,nit) | >6500nits(adjustable) |
| Average power consumption(W/sqm) | 210 |
| Maximum power consumption(W/sqm) | 720 |
| Module resolution(dot) | 32dotsX16 dots 16dotsX16dots |
| Module size(mm) | 320mmX160mm 160mmX160mm |
| Pixel density(dots/sqm) | 10000dots |
| Viewing distance(m) | 5-150m |
| Cabinet weight(kg/sqm) | 50kg(Iron) |
| Driving method | Constant current |
| Color show | 17-69G |
| Brightness adjusted | 256gray grade |
| Gray correction | 256-4096 |
| Image adjustment | Contrast, hue adjustment |
| Refresh rate | 300-2440HZ/S |
| Frame frequency | >60HZ |
| Interface port | VGA+DVI Graphic card |
| Display mode | 640X480,800X600,1024X768.2048X640 |
| Control mode | Led display and computer is dot by dot |
| Communication distance | Cable 5<=130m, Multimode optical fiber<=500m single mode fiber<=10km |
| Vedio source | TV VCD DVD |
| Continuous use time | >72hours |
| Life span | >100,000hours |
| Scatter OOC Point | <0.01% |
| Continuous OOC Point | 0.1% |
| Protection grade | indoor IP54, outdoor IP65 |
| Working temperature(Celsius degree) | -35~+60' |
| Working humidity(RH) | Indoor 10~60% outdoor 10~90% |
