Product Description ( Magic Strip )
(1) 30leds/meter SMD5050
(2) Use Taiwan original brand chipset for strip
(3) 8W/meter
(4) DC12V input
(5) IP level : IP65 (others IP66 , IP67 supported )
(6) Packing : 5meters / reel ; 500meter / Carton
(7) PCBA : 10MM size , Copper + White printing + Coverage flim
(8) Working temperature : -20~50degree
(9) Color : Magic full color
(10) Offer ODM service and also the high brightness customized strip for the project
(11) Each strip with two side cable
(12) Packing with the seal off Anti-static bag

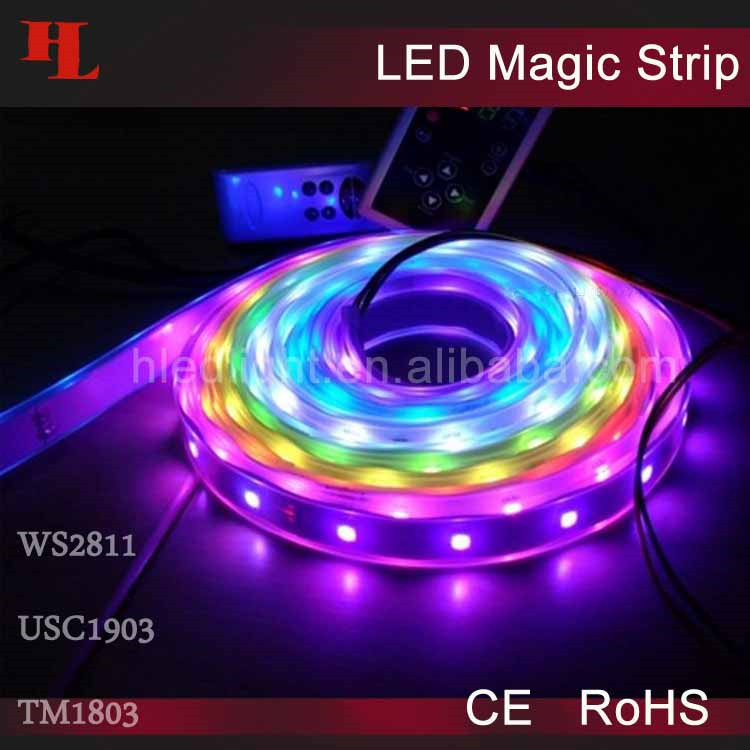

Magic RGB 5050SMD LED Strip light Features:
1) High flexibility. Randomly to bend up and down, and fix on any surface of concavoconvex without damaging the rest ribbon;
2) Every 3 LEDs cuttable. Every three LEDs is a complete return circuit;
3) High quality 3M adhersive tape for easier installation;
4) Long working life span more than 30,000 hours;
5) Very low energy consumption;
6) Safe, low voltage operation;
7) High visual effect;
8) No RF interference;
9) No UV light to avoid insects around;
10) Working with normal power supply and controller;
11) Changeable colors such as white, warm white, cool white, red, green, blue, pink, RGB and magic color etc
LED Strip Light Accessories
Magic RGB 5050SMD led Strip Light Installation Instruction:
Application
home interior lighting
under-cabinet lighting
closet lighting
display lighting
architectural lighting
lighting design sign
channel letters
exhibits backlighting
kitchen lighting
pool lights home
theater lighting
boat lights
lighting design for museum lighting
architectural lighting
restaurant lighting
FAQ for Making Orders
[Q] : We need the IES file , how could we get ?
[A]: Please contact withour sales or register on our webpage .Then download it.
[Q]: We just have a small order , which is less than the MOQ , So ?
[A]: We would like to give the goods price for your small order , we for small order we usually give the DDP price or CNF price . It will short your time to find out how to sell LED in the market . And how is the total cost for you.
[Q]: May I know the defective rate of the bulbs ?
[A]: Sure , please kindly contact with us , our sales would like to introduce the defective rate of the models .
[Q]: How to order ? what kind of the payment method do you support ? And delivery time ?
[A]: Easy 4 step to order . (1) we sent the quotation , specification , testing report of your interested model (2) We will floow you again about the price and sending the CE , Rohs certification (3) Will list the PI after we getting reply from you about the quantity .(4) Notice you on line or email once , payment arrived , order ready , making shipment , Tracking number
Hualing
Lighting Everyone's Dream
Model |
HL-WS2811-60 |
Input Voltage |
DC12V |
LED Qty |
60 Leds/m |
LED Sources |
SMD5050 |
Luminous Flux |
850lm/mtr for white |
Colors |
Magic full color |
Beam Angle |
120 degree |
CRI |
>75 |
Material |
Aluminum alloy |
Work Temperature |
-20 ~ 50 °C |
Certificates |
CE, RoHS |
Size |
10mm PCBA |
Packing |
100 reels / ctn ( 5 m / reel ) |
