Widely used in the main roads, highways, elevated roads, urban streets, bridges, sidewalks and other road lighting And other outdoor lighting places such as square, school, residential area, industrial zone, park and so on.
Test Temperature(T=25ºC) |

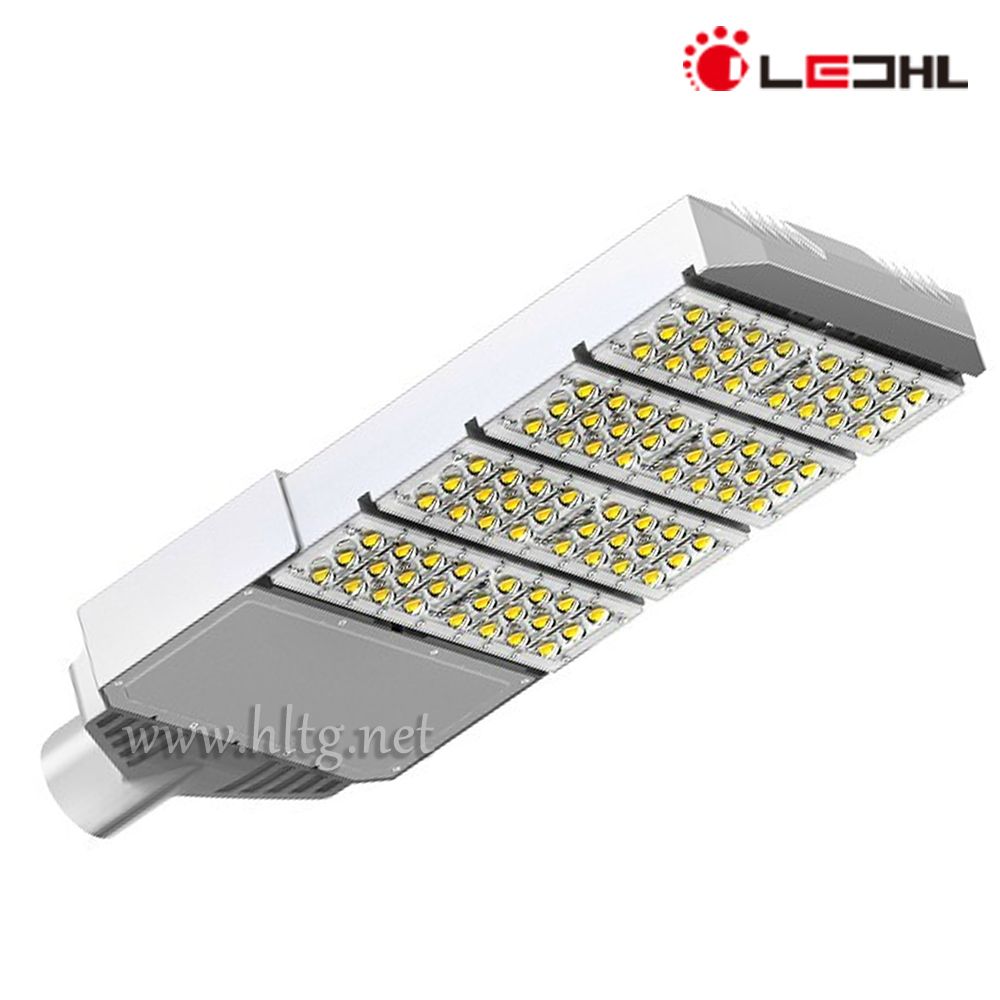

120W LED Street Light |
Specifications |
Input Voltage |
AC90-240V 50-60Hz |
LED Qty |
96PCS(1-3W/PCS) |
LED Power |
120W |
LED Luminous flux |
120-130lm/W |
Lumen |
CW >14400lm
NW >14000lm
WW>14000lm |
Power Factor(PF) |
>0.95 |
Color Temperature |
CW 6000-6500K
NW 4000-4500K
WW 2850-3000K |
Beam Angle |
120° |
Life Span |
>50,000 hrs |
Working Temperature |
-20 °C to +50°C |
Storage Temperature |
-40 °C to +60°C |
Certification |
CE, RoHS |
Fixture Weight |
4.0KG |
Dimension |
587x292x98mm |
IP Level |
IP65 |
