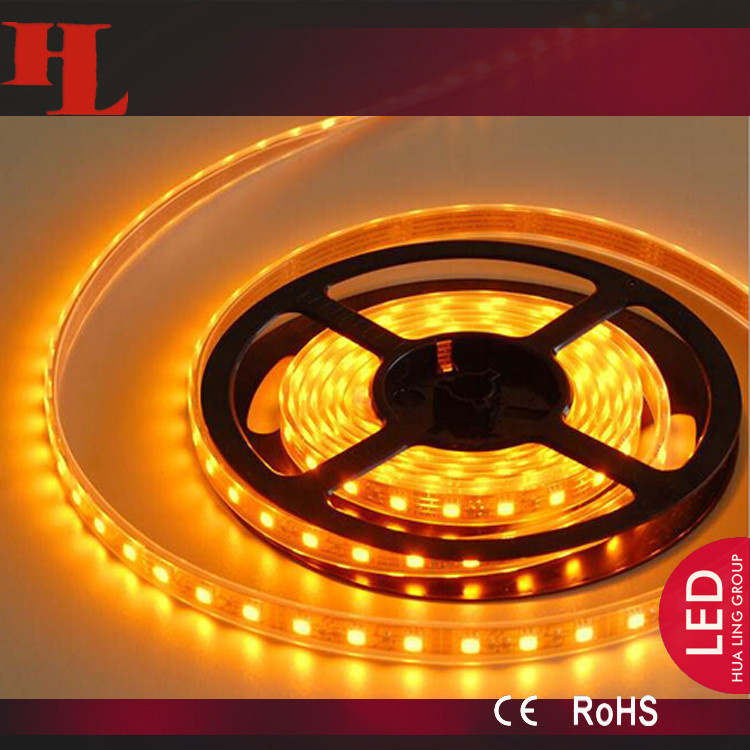

| Model | HL-352806Y2H1 |
| Input Voltage | DC12V |
| LED Qty | 60 Leds/m |
| LED Sources | SMD3528 |
| LED Brand | EPIstar |
| Luminous Flux | 7-8 lm/led white |
| Warranty | 2 years |
| Power | 4.8W/m |
| IP level | IP65 waterproof , silicon glue dropping |
| Colors | Red / Yellow / Blue / Green / White / Warm White / RGB |
| Beam Angle | 120 degree |
| CRI | >75 |
| Material | Aluminum alloy |
| Work Temperature | -20 ~ 50 °C |
| Certificates | CE, RoHS |
| Size | L5000mmxW8mm PCBA + 1.2oz copper + white printing |
| PCBA | aluminum PCBA + 1.2oz copper + double side |
| Packing | 100 reels / ctn ( 5 m / reel ) |
(1) 60leds/meter SMD3528
(2) Use Taiwan original brand chipset for strip
(3) 7-8lm/pc SMD3528 high brightness adopts in led strip
(4) 4.8W/meter
(5) DC12V input
(6) IP level : Ip33 (others Ip65 , Ip66, Ip68 supported )
(7) Packing : 5meters / reel ; 500meter / Carton
(8) PCBA : 10MM size , Copper + White printing + Coverage flim
(9) Working temperature : -20~50degree
(10) Color : Warmwhite , White , Blue , Yellow , Red , Green , RGB supported
(11) Offer ODM service and also the high brightness customrized strip for the project
(12) Double side pcba
(13) Each strip with two side cable
(14) Packing with the seal off Anti-static bag
Relative Models:
| LED Qty | LED Type | InputVol. | Power | PCBA | Warranty | Color | IP Level |
SMD3528
60 LEDS/M |
4-5 lm/led |
DC12V
/
DC24V |
4.8W/m |
8MM
Copper
1.0 oz
+ White
printing |
1 year | Red |
IP22 non-waterproof
IP65 PU glue dropping
IP66 silicon tube |
Yellow |
| Blue |
| Green |
| 3000-3200K |
| 6000-6500K |
| RGB |
| 5-6 lm/led |
DC12V
/
DC24V |
4.8W/m |
8MM
Copper
1.2 oz
+ White
printing |
2 years | Red |
IP22 non-waterproof
IP65 silicon glue dropping
IP66 silicon tube
IP68 PU glue injection+silicon tube |
Yellow |
| Blue |
| Green |
| 3000-3200K |
| 4000-4500K |
| 6000-6500K |
| RGB |
| 7-8 lm/led |
DC12V
/
DC24V |
4.8W/m |
8MM
Copper
1.2 oz
+ White
printing |
2 years | Red |
IP22 non-waterproof
IP65 silicon glue dropping
IP66 silicon tube
IP68 PU glue injection+silicon tube |
Yellow |
| Blue |
| Green |
| 3000-3200K |
| 4000-4500K |
| 6000-6500K |
| RGB |
| LED Qty | LED Type | InputVol. | Power | PCBA | Warranty | Color | IP Level |
SMD3528
120 LEDS/M |
4-5 lm/led |
DC12V
/
DC24V |
9.6W/m |
8MM
Copper
1.2 oz
+ White
printing |
1 year | Red |
IP22 non-waterproof
IP65 PU glue dropping
IP66 silicon tube
IP68 PU glue injection+silicon tube |
Yellow |
| Blue |
| Green |
| 3000-3200K |
| 6000-6500K |
| no RGB |
| 5-6 lm/led |
DC12V
/
DC24V |
9.6W/m |
8MM
Copper
1.2 oz
+ White
printing |
2 years | Red |
IP22 non-waterproof
IP65 silicon glue dropping
IP66 silicon tube
IP68 PU glue injection+silicon tube |
Yellow |
| Blue |
| Green |
| 3000-3200K |
| 4000-4500K |
| 6000-6500K |
| no RGB |
| 7-8 lm/led |
DC12V
/
DC24V |
9.6W/m |
8MM
Copper
1.5 oz
+ White
printing |
2 years | Red |
IP22 non-waterproof
IP65 silicon glue dropping
IP66 silicon tube
IP68 PU glue injection+silicon tube |
Yellow |
| Blue |
| Green |
| 3000-3200K |
| 4000-4500K |
| 6000-6500K |
| no RGB |
| LED Qty | LED Type | InputVol. | Power | PCBA | Warranty | Color | IP Level |
SMD3528
240 LEDS/M
Single Row |
6-7 lm/led |
DC12V
/
DC24V |
9.6W/m |
8MM
Copper
1.2 oz
+ White
printing |
2 years | Red |
IP22 non-waterproof
IP65 silicon glue dropping
IP66 silicon tube
IP68 PU glue injection+silicon tube |
Yellow |
| Blue |
| Green |
| 3000-3200K |
| 6000-6500K |
| 7-8 lm/led |
DC12V
/
DC24V |
9.6W/m |
8MM
Copper
1.2 oz
+ White
printing |
2 years | Red |
| Yellow |
| Blue |
| Green |
| 3000-3200K |
| 4000-4500K |
| 6000-6500K |
SMD3528
240 LEDS/M
Double Row |
6-7 lm/led |
DC12V
/
DC24V |
9.6W/m |
8MM
Copper
1.5 oz
+ White
printing |
2 years | Red |
IP22 non-waterproof
IP65 silicon glue dropping
IP66 silicon tube
IP68 PU glue injection+silicon tube |
Yellow |
| Blue |
| Green |
| 3000-3200K |
| 4000-4500K |
| 7-8 lm/led |
DC12V
/
DC24V |
9.6W/m |
8MM
Copper
1.5 oz
+ White
printing |
2 years | Red |
| Yellow |
| Blue |
| Green |
| 3000-3200K |
| 4000-4500K |
| 6000-6500K |
