Cn10/12 Overview:
Cn10/12 is a light, thin and transparent products that very suitable for lighting rental and large square application.

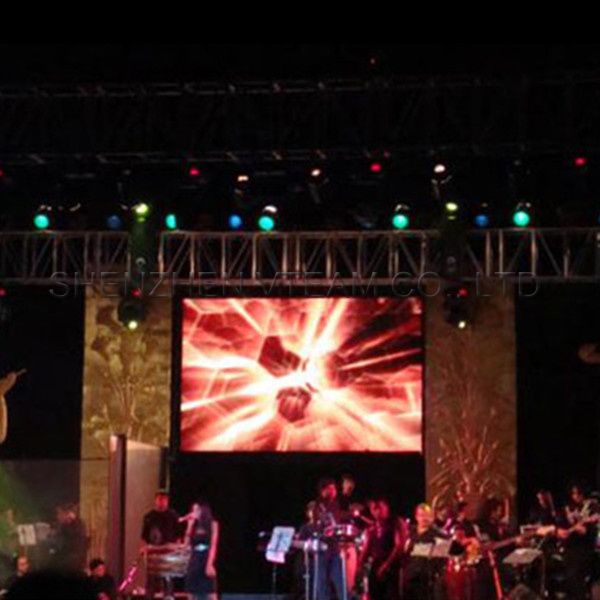

Cn10/12 with the performance of light, thin and transparent are very suitable for application on entertainment areas, such as TV stage and clubs. It could be change colors and produce images. The display image are pretty clear, true and magic. Cn10/12 is the best choice for creative designing company to produce large square image.
Product Features:
1. Light-weight. Saving shipping & labor cost.
2. Nice appearance, good solutions for the overall aesthetic feeling.
3. Jointed correctly, easy to install and dismount. No tool installation.
4. High transparency. Light, air and frost could easily cross through it.
5. Humanized operating interface with breakdown indicator lights.
6. High debugging brightness as 500-1500nit and no damage to gray scale, achieving the debugging technology with wonderful video show.
Specifications:
1. Light-weight, saving shipping
2. No tool installation
3. High transparency
4. High debugging brightness
5. Nice appearance.
|
Model |
|
Cn 10 |
|
Cn 12 |
|
Pixel Pitch |
|
10.416 mm |
|
12.5mm |
|
LED Type |
|
SMD 3528 |
|
SMD 3528 |
|
Pixel density |
|
9216 dot s / s.q.m |
|
6400 dot s / s.q.m |
|
P ixel Matrix |
|
96x48 dot |
|
80x40 dot |
|
Panel Size |
|
1000x500 x54 mm |
|
1000x500 x54 mm |
|
Weight |
|
8 kg |
|
7.5kg |
|
Protection Level |
|
IP43 |
|
IP43 |
|
Brightness |
|
900-1500 nit |
|
900 -1500 nit |
|
Viewing distance |
|
≥10m |
|
≥12m |
|
Viewing angle (H/V) |
|
1 4 0°/1 4 0° |
|
1 4 0°/1 4 0° |
|
Gray Scale |
|
14bit |
|
14bit |
|
Color type |
|
68.7billion |
|
68.7billion |
|
Max . Power consumption |
|
200W /PCS |
|
150W /PCS |
|
Ave . Power consumption |
|
80W /PCS |
|
60W /PCS |
|
Re fresh Rate |
|
1920H z |
|
1920H z |
|
Gamma |
|
-5.0~+5.0 |
|
operating environment |
|
operated temporarily indoors and outdoors |
|
Control system |
|
Synchronous display with control PC by DVI |
|
Type of signal input |
|
Composite, S-Vide, Component, V, DVI, HDMI, HD_SDI |
|
Input power |
|
AC90~260 50/60HZ |
|
Working environment |
|
Temperature -1 0 °C ~+5 0 °C , humidity 10~9 0 % RH |
|
Operating Life |
|
> 50,000hours |
|
Certificate |
|
CE |
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
VTEAM Mission: To create value and profit for customers!
VTEAM Vision: Being creative concept pioneer!
