Product Description
An Series(indoor)Overview:

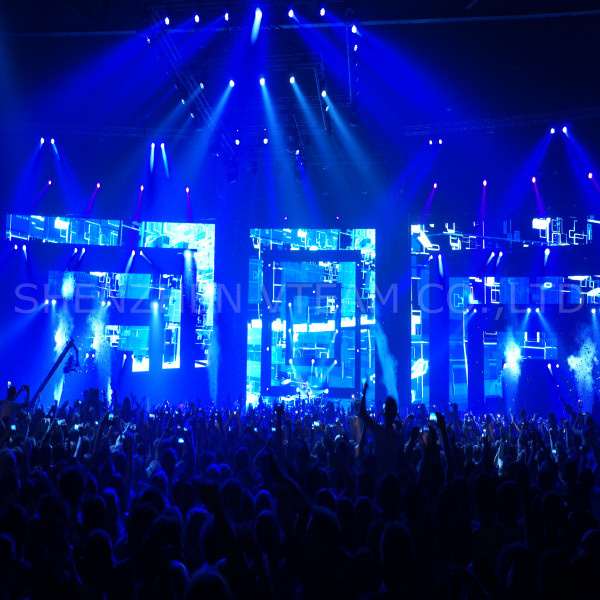

An Series (indoor) is the light-weight and super-thin led display screens, which are very popular for video rental business and large square applications. Jointed correctly, easy to install and dismount. Simple structures are the main features of the screens. The unit size of the screen is 500mm*1000mm*65mm, while the weight is only 13kg/panel. An Series (indoor) are popular to install on entertainment areas, such as TV stages and clubs. The video performances of the An Series screens are brilliant, pretty clear, and real. An Series (indoor)is the best choice for creative designing company to achieve large square video show.
Product Features:
1. Light-weight. Convenient in transporting and installing saving labor cost, suitable for flow shows.
2. Nice appearance and simple structure.
3. Jointed precisely, being installed &dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage for nice image.
Item
|
An3.9 |
An4.8 |
An5.2 |
An6.9 |
Pixel Pitch
|
3.9mm |
4.8mm |
5.2mm |
6.9mm |
LED type
|
SMD2121 |
SMD3528 |
SMD3528 |
SMD3528 |
Pixel matrix per panel
|
128*256 |
104*208 |
96*192 |
72*144 |
Pixel density/sqm
|
65536 |
43264 |
36884 |
20736 |
Brightness
|
900 Nit |
1000 Nit |
1300 Nit |
1300 Nit |
Driving Mode
|
1/16 scan |
1/16 scan |
1/16 scan |
1/9 scan |
View distance
|
≥ 3m |
≥ 4m |
≥ 5m |
≥ 6m |
Weight
|
13kg |
13kg |
10kg |
10kg |
Max. Power
|
200W/panel |
250W/panel |
120W/panel |
120W/panel |
Ave. Power
|
100W/ panel |
130W/ panel |
60W/ panel |
60W/ panel |
Panel Size
|
500mm x 1000mm x 65mm |
LED Configuration
|
RGB 3in1 |
LED Lamp/Chip
|
Silar or Epistar |
Viewing Angel
|
140° (H)/120° (V) |
Gray Scale
|
≥ 14bit |
Refresh rate
|
≥ 1920Hz |
Color temperature
|
8000K ± 500(can be customized) |
Colors Space
|
687 billion |
Waterproof rate
|
IP43 |
Application
|
Indoor, rental& fixed |
Input Signal
|
DVI, VGA, HD-SDI, S-video, Composite, YUV, etc |
Input Voltage
|
AC 220V± 10%, 50/60Hz |
Power Supply
|
Meanwell or G-energy with UL certificate |
Display Media
|
Video, graphic, animation, signage, cartoon, text, etc |
Control System
|
YDEA(showbox), Nova, Linsn, PC based dynamic capture & mapping |
System Operating Platform
|
WINDOW98/2000/XP/7/8 |
Working Environment
|
Temperature: -10º C~+50º C, humidity: 10-90%RH |
