LED wash is a mixture of red, green and blue to produce, via RGB electronic mixing, and endless palette of attractive pastel or deep colors, which has a multitude of benefits, including silent operation, durability, long service life, high efficiency at electro-optic transfer, and low power consumption with compact size. It uses DMX512 signal to control its colors and brightness, which is widely used at supermarket, Disco, shopping center, architectural building, hotel, garden and theater, etc.

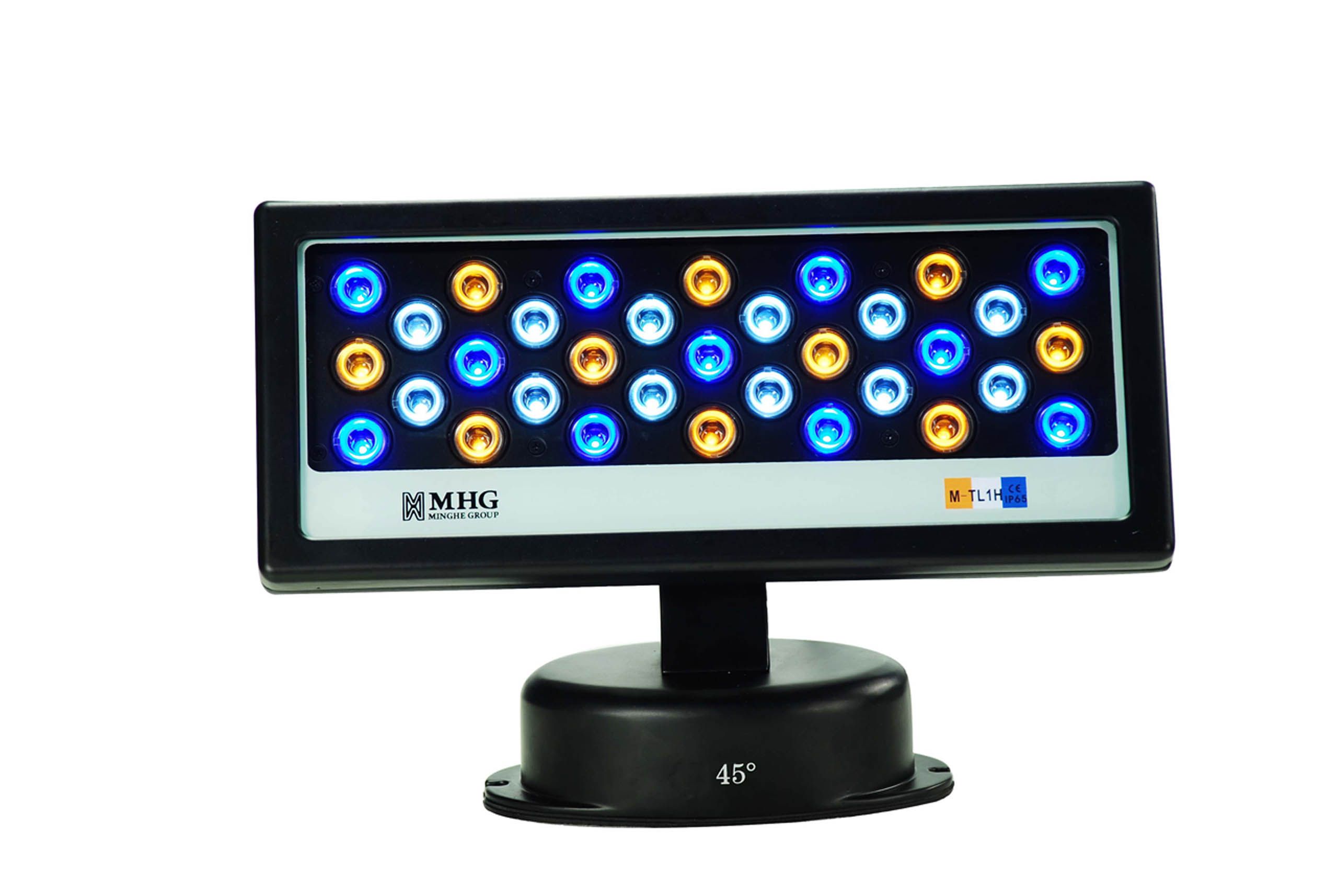

LED Wall Washer Series Outdoor M-TL1H-RGB / M-TL1H-AWB / M-TL1H-A / M-TL1H-B
|
MODEL |
M-TL1H-RGB |
M-TL1H-AWB |
M-TL1H-A |
M-TL1H-B |
|
Power Supply |
AC220V± 10% 50Hz (AC110V± 10% 60Hz available) |
|
Power Consumption |
36W max |
36W max |
36W max |
36W max |
|
Light Source |
Red 1Wx12
Green 1Wx12
Blue 1Wx12 |
Amber 1Wx12
White 1Wx12
Blue 1Wx12 |
Amber 1Wx36 |
Blue 1Wx36 |
|
Beam Angle |
45° (25° available) |
|
Illumination Intensity |
2380lx@1m |
2380lx@1m |
2300lx@1m |
2520lx@1m |
|
Control Signal |
DMX512, Auto Mode, Master Mode |
|
Control Channels |
5/7/11 |
5/7/11 |
3 |
3 |
|
Input Signal |
XLR 4-Pin Input, 4-Pin Output |
|
Working Temperature |
-20---45 |
|
Protection Grade |
IP65 |
|
Dimension |
340mm× 160mm× 220mm |
|
Net Weight |
4.4kg |
