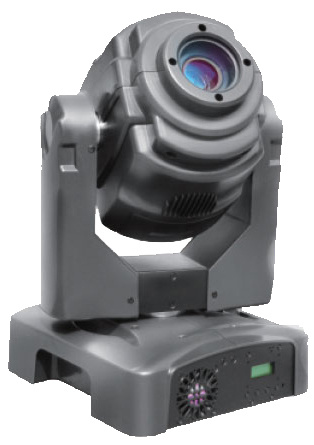

M-L264Y1RGB LED Moving Heads
1. General dimming and blackout for all colors
Excellent RGB color mixing and rainbow effect, 20 built in programs available.
2. This modle Widely used in stage light.
Specifications:
Power Supply: AC100V~240V, 50/60Hz
Power Consumption: 200W max
Light Source: 50W White LED
Illumination intensity: 18, 000Lx@1m
Control Signal: DMX512
Color wheel: 7 colors plus white by Hall positioning, with rainbow effect, color wheel forward and reverse
Rotation available
Gobo Wheel: 7 Gobos plus white by Hall repositioning, with shaking function, speed adjustable, Gobo wheel
& Gobo forward and reverse rotation available, and speed adjustable
Prism: 3-facet, bi-direction and speed adjustable
Focusing: Independent linear adjustment
Dimmer: 1~100%, linear adjustment
Strobe: Variable strobing 1~15 flash per sec, build-in strobe macro-function
Reset function: Independent repositioning channel, can be reset for every chip individually)
X/Y Movement Range: Pan 540° , Tilt 280° By Hall repositioning, with Pan/Tilt position correction, X/Y movement speed adjustable
16 bit Pan/Tilt movement resolution
Control Channels: 12CH/16CH
LCD Display: Displaying brightness adjustable (10-100%), back-light function and can be activated when press any buttom
Dimension: 240mm× 200mm× 370mm
Net Weight: 7kg
Established in 2001, Hunan Minghe Opto Tech Co., Ltd, located at Changsha National Economic Development Zone, is a professional manufacturer of stage light in theater & TV Studios and LED display of outdoor advertising, sports, airports, railways projects.
Our products mainly include LED display (indoor and outdoor), digital moving heads, outdoor LED projector, cool lights, color scrollers, control console and follow spots etc. Our CE/ LVD/ RoHS approved products have us win large numbers of royal customers from Europe, South Asia, the Middle East and other countries. We have enjoyed a high reputation for the excellent quality and perfect after-sales service both in China and abroad.
We are the member of China Entertainment Technology Association and Society of China Illumination. Our ISO9001: 2008 certified factory has more than 300 workers and over 30 R&D staffs, we can turn out over 1, 000, 000 pieces annually.
Based on our innovative technology & HR oriented service tenet, we'll keep on innovating to meet the ever-changing market demand, and we'll keep on cooperating with our customers with faith and dedication to build up a brilliant life together.
