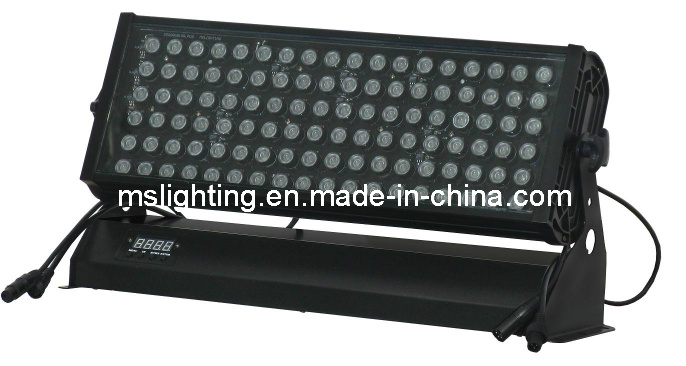

LED high power PAR light is designed by MSLIGHTING Co., Ltd. It adopts in108PCS of 1W/3W RGB, 36*10W RGBW 4IN1, which is the most advanced lamp as light sources. It is new generation green high technology product. It projects long distance, big angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.
The nice design is good for dispelling heat very well and long life. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting.
It is widely used in stage show, casino, advertisement, outside wall of mansion etc. It is controlled by controller with DMX; The effect can be gradual change, jump change, color glitter, random change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.
|
Model |
LED 2000 (108*1W) |
LED 2000A (108*3W) |
|
Housing Material |
Aluminum |
Aluminum |
|
Housing Color |
Black |
Black |
|
Aperture Cover |
PMMA |
PMMA |
|
Operating voltage |
90-130V AC / 176-254V AC |
90-130V AC / 176-254V AC |
|
Power |
Switch Power Supply |
Switch Power Supply |
|
LED current |
320mA |
680mA |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
|
DMX Channel |
6CH/3CH,7CH/4CH |
6CH/3CH,7CH/4CH |
|
Control panel |
Digital 4 characters alphanumeric |
Digital 4 characters alphanumeric |
|
Connector |
3-PinXLR (In and Out) |
3-PinXLR (In and Out) |
|
NO.of LED |
108*1W LEDS (36R/ 36B/ 36G)/(27R27B27G27W) |
108*3W LEDS (36R/ 36B/ 36G)/(27R27B27G27W) |
|
LED Life Time |
80000-100,000 hours |
80000-100,000 hours |
|
Beam Angle |
25°/30°/45°/60° |
25°/30°/45°/60° |
|
Power Consumption |
145W |
400W |
|
Light Projecting Distance |
25-120M |
50-200M |
|
IP Rating |
Outdoor, Waterproof, IP 65 |
Outdoor, Waterproof, IP 65 |
|
Operating Temperature |
20ºC-+45ºC |
20ºC-+45ºC |
|
Dimensions |
570*220*190 (mm) |
570*220*190 (mm) |
|
Weight |
13.00 (kg) |
15 (kg) |
|
Packing Dimension |
670*320*290 (mm) |
670*320*290 (mm) |
|
Gross Weight |
16.00 (Kg) |
18.00 (Kg) |
|
Compatibility: |
|
1. Color Range: 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
|
2. Dimming 0-100%with regulated constant color control |
|
3.Strobe: 10 Flashed per second (any color) |
|
4. Function: it is max mix color, color change, color’s gradual change, flash, speed/luminance the adjustable, and save function |
|
5. 6channel Mode and 3channel Mode would change each other in every light |
|
6. 6CH Mode DMX Value |
CH 1 — General dimmer (1-255, from dart to light) |
|
CH 2— Red (1-255, Dimmer, from dart to light) |
|
CH 3 — Green (1-255, Dimmer, from dart to light) |
|
CH 4—Blue (1-255, Dimmer, from dart to light) |
|
CH 5— Strobe & Color change/ color gradual change open |
|
CH 6 —Strobe & Color change& color gradual change’s speed adjustment (1-255, Speed adjustment, from slow to fast) |
|
7. 3CH Mode DMX Value |
CH 1— Red (1-255, Dimmer, from dart to light) |
|
CH 2 — Green (1-255, Dimmer, from dart to light) |
|
CH 3—Blue (1-255, Dimmer, from dart to light) |
|
8. Control modes |
0: sound activity mode |
|
1. DMX control mode |
|
2. Adjusting the color manual |
|
3. Adjusting the brightness manual |
|
4. Adjusting the strobe manual |
|
5. Adjusting the strobe speed manual |
|
6. Master-slave control mode, as the master |
|
7. Sound activity synchronization mode |
|
8 .Adjusting color’s gradual change manual |
|
9. Adjusting gradual change’s speed. |
|
Each Package Included: |
|
1 * LED2000/2000A with Signal Cable :3-PinXLR DMX In and Out + Water Power cable: Power Cable screw water proof connectors in and out (2ft cable) |
|
1 * User Manual |
|
1*Power cable: 3 Pin plug and screw water proof connector on other side. (2ft cable) |
|
2* pyrocondensation.cannula (0.66ft = 20cm) |
|
1* Waterproof connector’s cover for Power cable |
