Our advantages:
1. Use the CREE or OSRAM, etc. 1W LED source as the light source, low luminous decay, pure light color and long service life.
2. Professional optical design, using special effective lens or reflector cup with our own design, this ensure the good optical effect.
3. Extruded aluminum material used for the main part, good surface after oxidation treatment, smooth and delicate.
4. The surface is passed through anodic oxidation treatment. Its structure is compact and beautiful.
5. Through professional waterproof material, such as silicone mats and glass plastic, and good structural design, our lamps waterproof level achieved IP67 rating. Rain and dust can not damage the lamp.

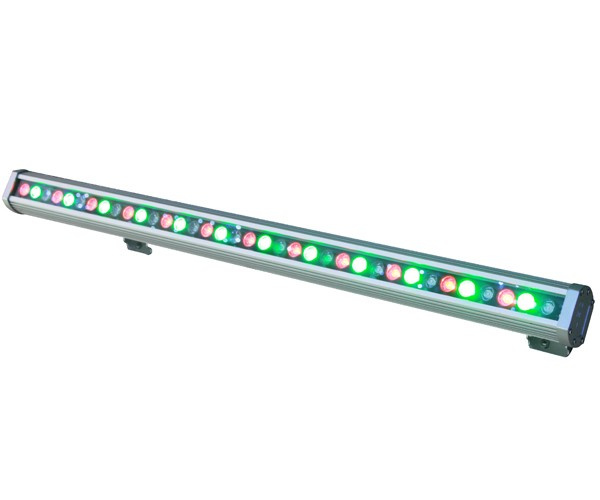

6. Our wall washer lamps have RGB full color, with DMX512 control system, they can form a variety of patterns and effects.
7. Environment friendly and no air pollution. The wall washer light do not have lead, hydrargyrum and any other contamination. It is a real environment friendly and saving power product.
8. Integrative design for heat sink and housing. The LED is closely connected to the surface. The heat from the LED is removed through the heat dissipation wing and also by air ventilation. This ensures 50, 000 hours life-span for the LED. If it works 11-12 hours per day, it can work over 10 years.
9. Constant current driver included, so that the lamps can share a large power supply, 5 lamps share a 240W power supply for example, this can improve system stability and energy conservation.
1) LED Power Consumption: 36*1W
2) Color: White(3700-5000K), Warm White(2700-3700K), Cool White(5000-7500K)
Red(620-630nm), Green(520-530nm), Bule(465-475nm), Orange(585-595nm)
3) Grayscale: RGB 256X256X256
4) Input Voltage: DC/AC 12-48V AC 90-305V
5) DMX512 Address: Auto-allocate
6) DMX512 Passage: 3/4/6/9/12
7) Material: Alu + Glass
8) Base: 3 PIN Power Wires
3 PIN DMX512 Wires
9) Beam Angle: 15-150 degrees
10) Working Temperture: -40-50 degrees
11) Body Temperature: <55 degree (Ambient Temperature 25 degrees)
12) Working Humidity: 10%~90%
13) Life Time: >50000 hours
14) Size: 1000(L)*50(W)*80(H) mm
15) IP Rating: IP67
16) Net Weight: 2.1Kg
17) Warranty: 3 years
18) CE, CCC, SAA, PSE, RoHS approved.
We (CMC Shanghai PUDONG CORP. ) develop, manufacture, and sell semiconductor lighting systems particularly high-power LED based products. Through self-funded research and development and proprietary technologies and products, our primary goal is to deliver green lighting systems to our customers. Our proprietary high-power LED product was appraised as "industry-leading" technology by government agents in China. As a pioneer in semiconductor lighting industry, our company is highly regarded by customs around the world.
Our proprietary high-power LED lighting technologies are bringing truly green lighting products to our society. More importantly, our products will fully take advantages of the unique properties of semiconductor lighting, including extremely high energy-efficiency, long lifetime, rich and saturated color, environment-benign, etc.
Our present product portfolios include outdoor and commercial lights. These products are designed based on several industry-leading technologies. These technologies include, but are not limited, advanced switch power supply, comprehensive thermal management technology, and state-of-the-art design. The new features of our lighting systems include, but are not limited to, energy-efficient, environmentally-benign, new functionalities. In particular, we are exploiting and extending the new concept of lighting, which is a natural combination of light and life. To achieve these goals, we have companies and branches located both in China and USA.
