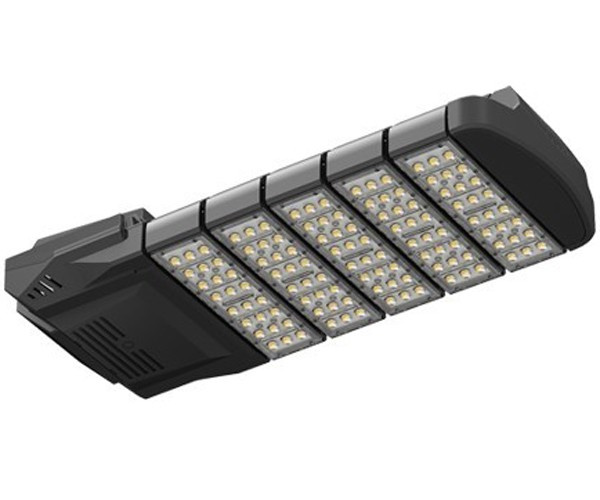

LED Street Light 210W
Special modular design, different power, size, volume available.
Use the high-quality, high power, high luminous efficiency, low light decay, long service life LED light source, such as CREE, OSRAM, etc...
Good heat dissipation design, the body temperature less than 55° (Ambient Temperature 25° ), and IP67 waterproof level.
With Meanwell UL power supply, the efficiency is as high as 93%, PF > 0.93, 90-305 VAC input voltage range, no delay start, no waiting. The optional remote and intelligent control (Day light, PIR motion, etc. ).
Save energy by 60%(compared to sodium lights), and warranty 5 years!
1) LED Power Consumption: 60*1W/90*1W/120*1W/150*1W/180*1W/210*1W LED
2) Lumen Output: 5700LM/8550LM/11400LM/14250LM/17100LM/19950LM +/-5%
3) Power Supply Consumption: 66.7W/100W/133.4W/166.7W/200W/233.4W
4) Input Voltage: 90-305 VAC
5) Power Factor: >0.93
6) Material: Alu + PMMA
7) Base: 3 PIN Wires
8) CCT: 2700-7000K
9) CRI: WW>75, CW>70
10) Beam Angle: 120
11) Working Temperture: -40-50 degrees
12) Body Temperature: <55 degree (Ambient Temperature 25 degrees)
13) Working Humidity: 10%~90%
14) Life Time: >50000 hours
15) Size: 511(L)*315(W)*204(H) mm 60W 602(L)*315(W)*204(H) mm 90W
693(L)*315(W)*204(H) mm 120W 784(L)*315(W)*204(H) mm 150W
875(L)*315(W)*204(H) mm 180W 966(L)*315(W)*204(H) mm 210W
16) IP Rating: IP67
17) Net Weight: 6.2Kg 60W, 7.2Kg 90W, 8.5Kg 120W, 9.8Kg 150W, 10.8Kg 180W, 12.3Kg 210W
18) Warranty: 5 years.
We (CMC Shanghai PUDONG CORP. ) develop, manufacture, and sell semiconductor lighting systems particularly high-power LED based products. Through self-funded research and development and proprietary technologies and products, our primary goal is to deliver green lighting systems to our customers. Our proprietary high-power LED product was appraised as "industry-leading" technology by government agents in China. As a pioneer in semiconductor lighting industry, our company is highly regarded by customs around the world.
Our proprietary high-power LED lighting technologies are bringing truly green lighting products to our society. More importantly, our products will fully take advantages of the unique properties of semiconductor lighting, including extremely high energy-efficiency, long lifetime, rich and saturated color, environment-benign, etc.
Our present product portfolios include outdoor and commercial lights. These products are designed based on several industry-leading technologies. These technologies include, but are not limited, advanced switch power supply, comprehensive thermal management technology, and state-of-the-art design. The new features of our lighting systems include, but are not limited to, energy-efficient, environmentally-benign, new functionalities. In particular, we are exploiting and extending the new concept of lighting, which is a natural combination of light and life. To achieve these goals, we have companies and branches located both in China and USA.
