Source chip: High brightness LED (imported from USA LUMILEDS/CREE, Germany OSRAM, Taiwan JINGYUAN with original packaging)
Source power: 12W, 18W, 24W (optional)
Power efficiency: 85%
Power factor: 95%
Electricity level: II
LED quantity: Optional
Wavelength: R(620-630nm), G(520-530nm), B(465-475nm)
Lighting Angle: 15° , 30° , 45° , 60° , 90° , 120° (optional)
IP: IP65
Control configuration: Internal controlled by SCM, adopting signal wire to realize synchronous control between luminaires; DMX512 control or 485 control, full-automatic and intelligent controlled by PC.
Color range: 16777216(24Bit) additive RGB colors; 16700, 000 RGB complex true colors; Realize synchronization, chase, moving water, gradual change etc.
Input voltage: AC110-230V (switch power supply)
Luminaire color: Silver grey, transparent and tempering glass
Wire: Four cores wire and two cores wire(Temperature resistant, cold-resistant, aging-resistant and uvioresistant UL-94V0)
Material: Aviation aluminum with good quality, die-casting cover (ABS+EC), plastics ejection and anodization on the surface. Radiator adopts large-tonnage extrusion and digital control processing. Professional pressurize technology, IP65 and durable.
Working temp: -30° C-50° C
LED lifespan: 50000hrs
Operating environment temp: -30-60
Operating environment humidity: 10%-99%RH
|
Product Series Specs Form |
|
|
|
|
|
|
|
|
No. |
Type |
Name |
Dimension |
Voltage |
Power |
Color |
LED |
Power of 1 LED |
|
1 |

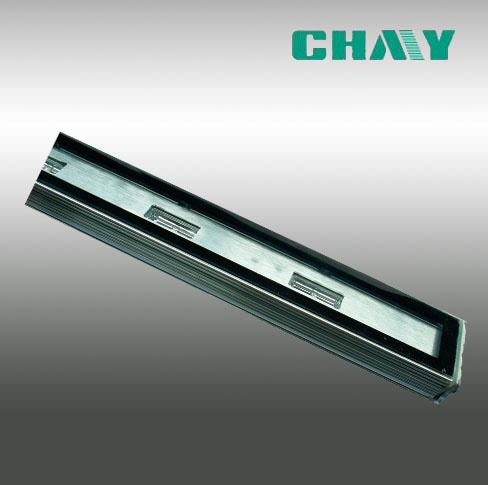

MY-XQ220018R-04 |
Wash wall light |
1000X50 |
AC |
220V |
35 |
Red |
144 |
0.2 |
|
2 |
MY-XQ220018G-04 |
Wash wall light |
1000X50 |
AC |
220V |
35 |
Green |
144 |
0.2 |
|
3 |
MY-XQ220018B-04 |
Wash wall light |
1000X50 |
AC |
220V |
35 |
Blue |
144 |
0.2 |
|
4 |
MY-XQ220018Y-04 |
Wash wall light |
1000X50 |
AC |
220V |
35 |
Yellow |
144 |
0.2 |
|
5 |
MY-XQ220018W-04 |
Wash wall light |
1000X50 |
AC |
220V |
35 |
White |
144 |
0.2 |
|
6 |
MY-XQ024018Q-04 |
Wash wall light |
1000X50 |
AC |
24V |
35 |
Rainbow colors |
144 |
0.2 |
|
7 |
MY-XQ220024R-04 |
Wash wall light |
1000X50 |
AC |
220V |
35 |
Red |
144 |
0.2 |
MINYANG GROUP Co., Ltd founded in 1993, located in Liushi, Wenzhou city of Zhejiang, specilized in manufacturing the High-voltage and Low-voltage products for more than 15 years.
ZHEJIANG MINYANG OPTOELECTRONIC TECH. Co., is a wholly-owned subsidiary of MINYANG GROUP. Basically be in charge of the business of LED illumination in the world wide. Our scope of business covers the collection of research, production, distribution and service, as well as investment and cooperation and business project of LED product.
With the support of the MINYANG GROUP, we strive to be a listed company in five years.
