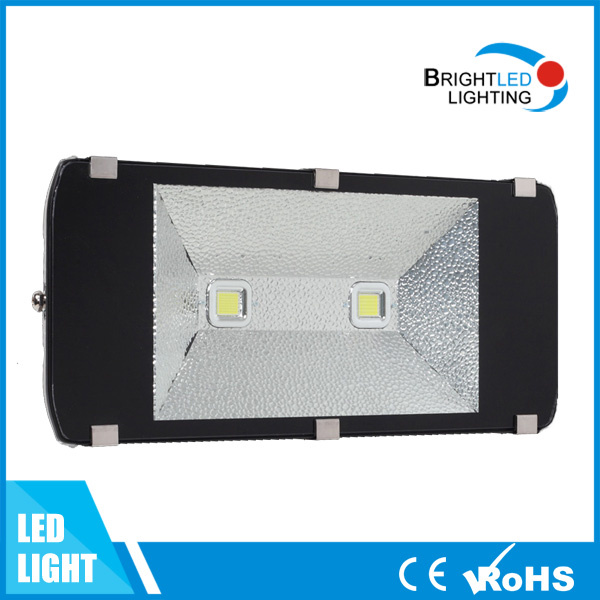

LED tunnel light/Tunnel lighting/LED flood light/LED tunnel lights:
Specification:
LED Tunnel Light Type: BL-TL570-01 (80W/ 100W/ 120W/ 140W)
LED Tunnel Light Light source: LED
LED Tunnel Light Power: 80W/ 100W/ 120W/ 140W
LED Tunnel Light Work voltage: AC(85V-265V)/(50-60Hz)
Power factor(PF): >0.9
Light efficiency: 70-100 lm/w
No UV or IR light radiation
Fixture efficiency: >90%
View angle: 130°
Color instruction: >80
Color temperature(CCT): 2700-7000K
Life time: >50, 000 hrs
Luminance decrease: Keep lighting 1000hours decrease1%
IP grade: IP65
CE certification
Technical Parameter
| Part No. | BL-FL570-100W-01 |
| Power | 100W |
| Led Quantity | 2P 50W COB Bridgelux Led |
| Voltage | 110V/220V AC 12V/24V DC |
| Frequency Rangy | 50Hz-60Hz |
| Power Factor | >0.9 |
| Rendering Index | Ra>80 |
| Color Temp(K) | 3000K/4500K/6500K |
| Lumious Flux(Lm) | 3000lm |
| Life time(hrs) | 50,000 |
| Protection Rate | IP65 |
| THD | <15% |
| Thermal Resistance | 0.15°C/W |
| Dimension |
|
| Weight |
|
Feature
1.45MIL led chips and optimized constant-current high efficiency driver are used to ensure long-term reliable and stable working without accident or maintenance.
2. Amazing Power factor, less harmonic distortion rate. No noise, no flickering.
3. Unique one-time die-casted aluminum shell structure, making heat dissipation excellent;
4. Stable LED working point,little temperature rise, no brightness decline.
5. Easy installation and convenient maintenance.
6. Environment-friendly, no UV or IR radiation, and no mercury or lead hazard.
7. Different varieties of base to suit your choice, make it convenient for replacement, also have a wide coverage for the power and voltage.
Installation Instruction
Before installation please consider the following:
Before proceeding with installation, ensure the intended site can support 1.5 times the weight of the chosen product.If this is not achievable,we advises against fitting the luminaire.
Where possible we also suggests using at least a minimum 2 of the 3 mounting bolt holes to fix the chosen luminaire into position.
Ensure the intended mounting location maintains adequate ventilation and air fow.
Applications:
Energy Saving Programs
Outdoor Exterior of building Lighing
Stadium Lighting
Sports Center Lighting
Tennis Court Lighting
Square Lighting
Gardon Lighting
Parking Lots Lighting
To replace the MH,HPS Lamp
Packing information:
Qty:1pcs/ctn
Carton Weight:13KGS/ctn
Carton size:66*36*26cm
Brightled Lighting tunnel light series |
| Type | Specification | LEDchip | Power | Lumens | MOQ (pcs) | Packing |
| LED tunnel light | View angle: 130° | Bridgelux | 50W | 80lm/w | 10 | 1: Qty/ctn: 2pcs/ctn
2: Gross Weight: 16kgs
3: Sizeofcarton: 400*300*200mm |
| Color: W/WW/CW/R/G/B | 60W |
| Net weight: 7.39kgs | 70W |
| BL-TL370-1 | Dimension: 393*285*93mm | 80W |
| LED tunnel light | View angle: 130° | Bridgelux | 50W | 80lm/w | 10 | 1: Qty/ctn: 2pcs/ctn
2: Gross Weight: 16kgs
3: Sizeofcarton: 400*300*200mm |
| Color: W/WW/CW/R/G/B | 60W |
| Net weight: 10.6kgs | 70W |
| BL-TL370-2 | Dimension: 393*285*93mm | 80W |
| LED tunnel light | View angle: 130° | Bridgelux |
| 80lm/w | 10 | 1: Qty/ctn: 1pcs/ctn
2: Gross Weight: 11.6kgs
3: Sizeofcarton: 600*300*100mm |
| Color: W/WW/CW/R/G/B | 100W |
| Net weight: 10.6kgs | 120W |
| BL-TL570-1 | Dimension: 593*285*93mm | 140W |
| LED tunnel light | View angle: 130° | Bridgelux |
| 80lm/w | 10 | 1: Qty/ctn: 1pcs/ctn
2: Gross Weight: 11.6kgs
3: Sizeofcarton: 600*300*100mm |
| Color: W/WW/CW/R/G/B | 100W |
| Net weight: 10.6kgs | 120W |
| BL-TL570-2 | Dimension: 593*285*93mm | 140W |
Trade Terms:
1. Payment: T/T,L/C, Western Union |
2. Production lead time:3--15 days |
3. Sample can be delivered in 3 days |
4. Shipping freight are quoted under your requests |
5. Shipping port: Shenzhen or Guangzhou Mainland China |
6. Discounts are offered based on other quantities |
Shipping Terms:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
Company Profile:
Brightled Lighting Tech Limited, which is an enterprise specializes in the manufacture of LED products.
Here as below are our main products:
1. LED Spot and bulb Light (MR11, MR16, E14, GU10, PAR30, PAR38);
3. LED Tube Lights (T5, T8, T10),SMD,DIP
4. LED Downlights (Recessed & Surface Mounted);
5. LED Street Lights and high power led chip
6. LED Strip Lights, LED Christmas Light Strings.
7. LED Outdoor Floodlight
8. LED Gas station Light
9. LED High Bay Light
10.led panel light and LED wall Washer light
Our Advantages:
1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service
Our Services:
1.Your inquiry related to our products or prices will be replied in 8 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
FAQ
1.Q: Which Chips and driver do you usually use ?
A: Bridgelux or Epistar LED,Driver with PF>0.9 or Meanwell brand
2.Q: Offer samples or not?
A: Yes.
3.Q: How about the delivery time?
A: Usually, 3-5 working days for the sample,4-10 days for 500-2000 pieces.
4.Q: Can you do FOB and accept L/C?
A: Both Yes
5.Q: How many years about the warranty?
A: 3 to 5 years
6.Q: It's my first time to import products, can you arrange all shipping for me?
A: It's our pleasure,we have the partner who can arrange all documents and shippment to you.
