Home LED Light Products LED Tube Outdoor Light Wall Washer (H-361-S48-RGB)

LED Tube Outdoor Light Wall Washer (H-361-S48-RGB)

LED Tube Outdoor Light Wall Washer (H-361-S48-RGB)
Price: US $ 5-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
-LED Wall Washer Lighting-

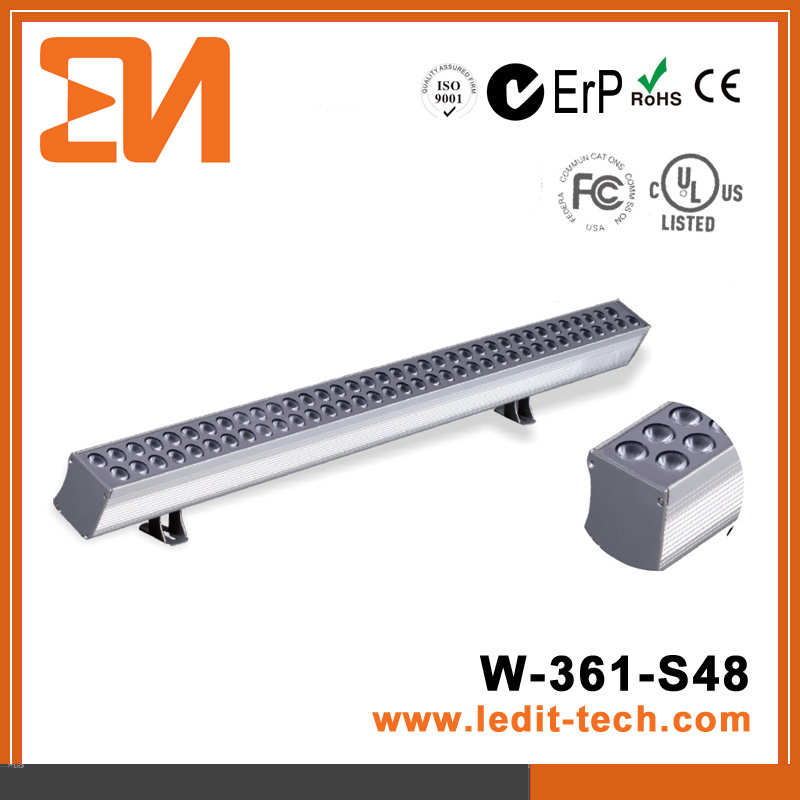

Model H361-S48-RGB is designed for high-end decoration.

It adopts 48pcs SMD3535 LEDs, using aluminum alloy completely waterproof case with IP66 rate. Each Linear Tube can be used as 8 separated 8bit color pixel (could also be customized).

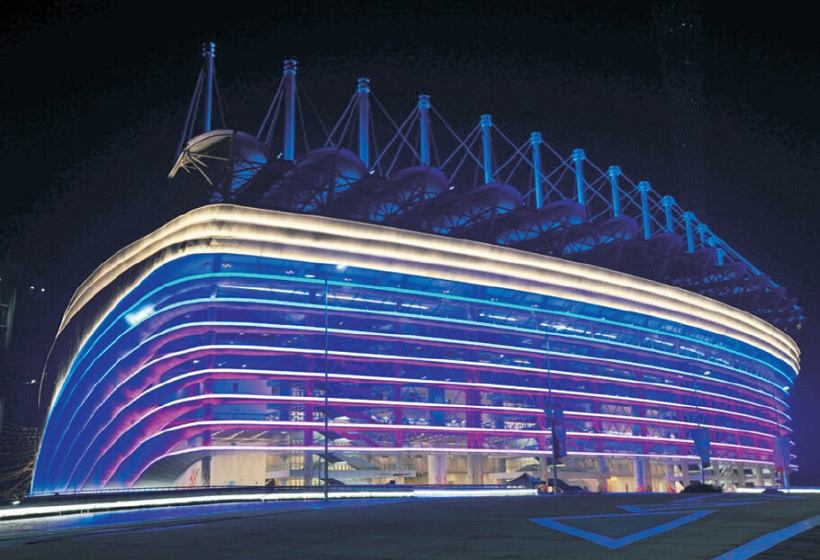

Accompanied by our own lighting managing tools and control system, it can reach any decoration requirement, which is widely applied in decoration of building, bridge, stage, pub, etc.


1) Outdoor Lightning protection.

2) Electronic Static Discharge (ESD) protection.

3) Tempered glass cover, Anti-UV and Severe weather resistant.

4) High quality driver IC to improve the reliability and stability of whole system.

5) Lamps are separated with Control system, saving lots of installation time and cost.



Basic Parameter
Color GreyRGB 256 grey scale each,
16777216 kinds of color in total
Light Source48 pcs High Power LED
LED ChipEpistar/ Cree
Wave Length625nm±5nm, 525nm±5nm, 470nm±5nm
MaterialTempered glass cover / Aluminum Alloy
Drive Mode DC/ DMX512
Environment Parameter
working Temperature-20°C~50°C
Storage Temperature-40°C~70°C
Ingress ProtectionIP66
controllerSS main controller
Sub-controller SS Sub controller
( 8 port output, each output can support 512pixels)
Working Input VoltageAC 220V
Max Power Consumption48W /pc
Average Power Consumption28.8W /pc
Brightness65 lm/w
Beam Angle12°x 48°/10°x 60°

Available Models

Modle No.VoltagePowerColorSourceControlLux
Always on9600(lm)




Prod Model: H-361-S48-RGB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

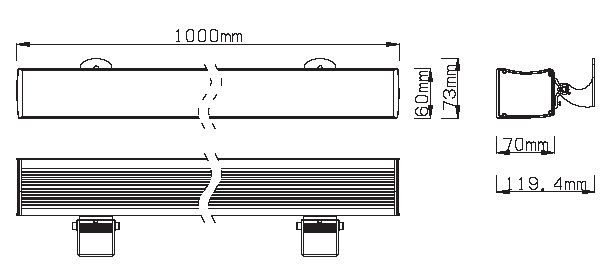

Tube Size: 60X70X1000mm
Ingress Protection: IP66
LED Chip: Epistar / CREE
Life Time: 50000 Hours
Emitting Color: RGB
IP Rating: IP66
Diffuser: Tempered Glass
Lifespan: 50000 hours
Warranty: 2 Years
Certification: VDE
Electric Current Type: DC
Input Voltage: 24V
Power: 48W
Beam Angle: 12°X 48°/10°X 60°
LEDit Tech Co., Ltd. is professional manufacturer of outdoor/indoor LED decoration lighting, of Buildings, Landscape, Architectures, Bridges, Arenas, Pubs, etc.

Our technical and research team members are all senior experts with decades of experience in LED industry, ensure us to provide full range of lighting products with high quality. We have our own design of light fittings, LED drive and control systems, thermotics and optical applications. All our products had gained the certificates of CE, RoHS and ISO9001: 2008, etc.

With more than 4500 sqm modern factory, most advanced production and test machines, and experienced tech, production and sales teams, we LEDit has become one of the biggest and best supplier of LED decoration lighting system in China Mainland.

We're open to discuss with you about any process about the LED decoration lighting business.

Research, design, development, production, sales or after-service

As long as you have any idea or need, we'll be glad to hear from you.
