Home LED Light Products LED Bulb Outdoor Lighting Wall Washer CE/UL/FCC/RoHS (H-360-S48-W)

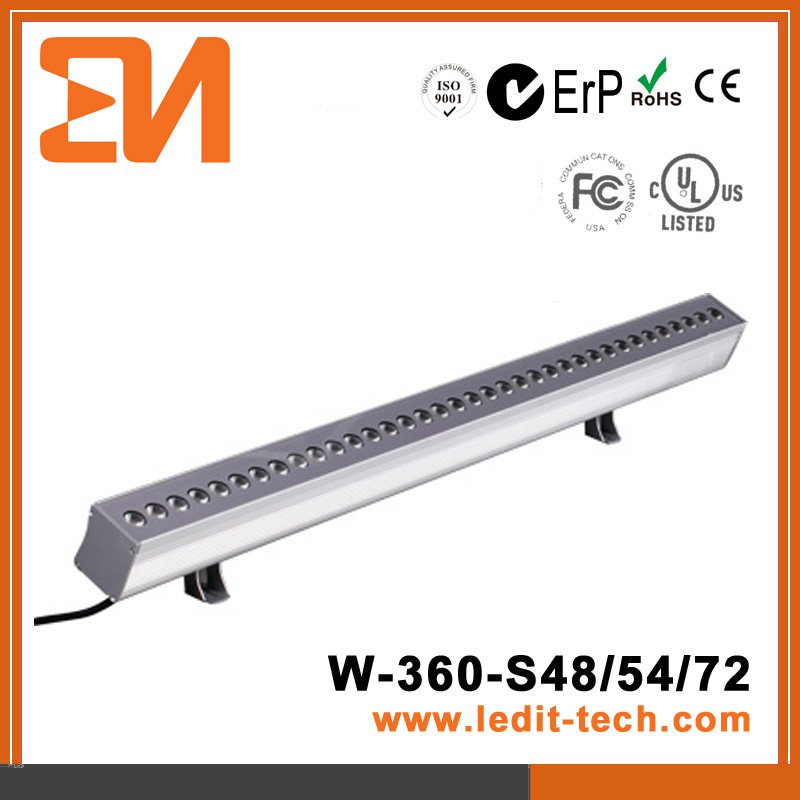

LED Bulb Outdoor Lighting Wall Washer CE/UL/FCC/RoHS (H-360-S48-W)

LED Bulb Outdoor Lighting Wall Washer CE/UL/FCC/RoHS (H-360-S48-W)
Price: US $ 5-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
-LED Wall Washer Lighting-


Model H360-S48/54/72-RGB is designed for high-end decoration.

It adopts 24/36pcs SMD3535 LEDs, using aluminum alloy completely waterproof case with IP66 rate. Each Linear Tube can be used as 8 separated 8bit color pixel (could also be customized).

Accompanied by our own lighting managing tools and control system, it can reach any decoration requirement, which is widely applied in decoration of building, bridge, stage, pub, etc.



-Features-



1) Outdoor Lightning protection.

2) Electronic Static Discharge (ESD) protection.

3) Tempered glass cover, Anti-UV and Severe weather resistant.

4) High quality driver IC to improve the reliability and stability of whole system.

5) Lamps are separated with Control system, saving lots of installation time and cost.



-Specifications-




Basic Parameter
ModelH360-S48/54/72-RGB
Color GreyRGB 256 grey scale each,
16777216 kinds of color in total
Light Source24/36 pcs High Power LED
LED ChipEpistar/ Cree
Wave Length625nm±5nm, 525nm±5nm, 470nm±5nm
Lifetime50,000Hours
MaterialTempered glass cover / Aluminum Alloy
Drive Mode DC/ DMX512
Weight4.0kg/pc
Environment Parameter
working Temperature-20°C~50°C
Storage Temperature-40°C~70°C
Ingress ProtectionIP66
Controller
controllerSS main controller
Sub-controller SS Sub controller
( 8 port output, each output can support 512pixels)
Electricity
Working Input VoltageDC 24V / AC 220V
Max Power Consumption48W/ 54W/ 72W/pc
Average Power Consumption28.8W /32.4W / 43.2W /pc
Performance
Brightness65 lm/w
Beam Angle12°x 48°/10°x 60°




Available Models

Modle No.VoltagePowerColorSourceControlLux
360-S48-WAC220V48WWhite24pcs
XP-E LED
Always on4800(lm)
360-S48-RGB-DAC220V48WRGB24pcs
XP-E LED
DMX5123120(lm)
360-S54-WAC220V54WWhite36pcs
XP-E LED
Always on5400(lm)
360-S54-RGB-DAC220V54WRGB36pcs
XP-E LED
DMX5123510(lm)
360-S72-WAC220V72WWhite36pcs
XP-E LED
Always on7200(lm)
360-S72-RGB-DAC220V72WRGB36pcs
XP-E LED
DMX5124680(lm)

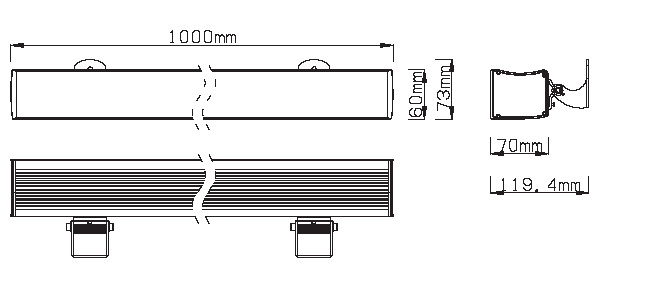

-Dimension-

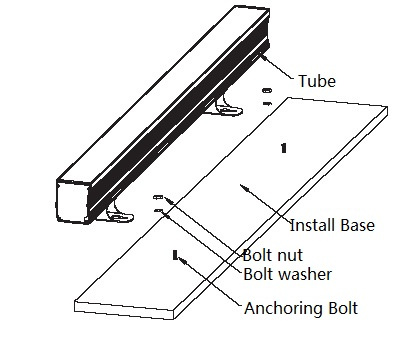

-Installation-

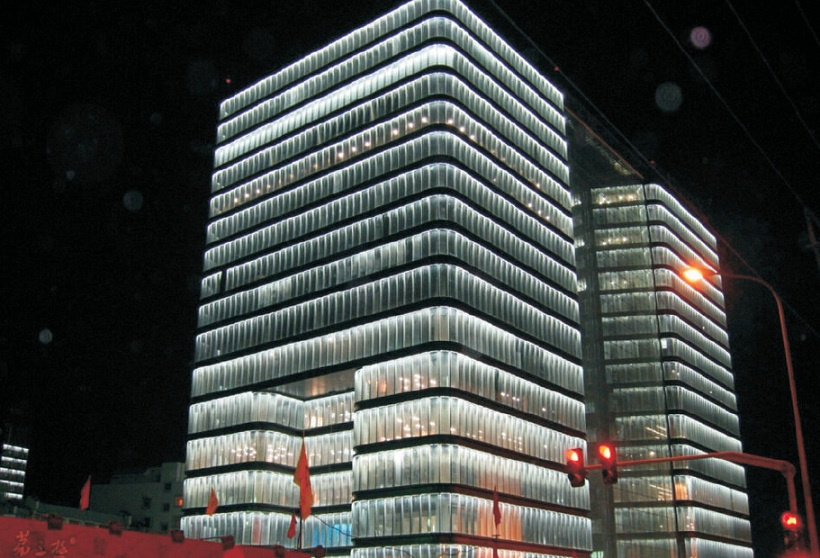

-Application-



Prod Model: H-360-S48-W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Size: 60X70X1000mm
Emitting Color: RGB
IP Rating: IP66
Diffuser: Tempered Glass
Lifespan: 50000 hours
Warranty: 2 Years
Certification: VDE
Electric Current Type: DC
Input Voltage: 24V
Power: 48W
Beam Angle: 12°X 48°/10°X 60°
LEDit Tech Co., Ltd. is professional manufacturer of outdoor/indoor LED decoration lighting, of Buildings, Landscape, Architectures, Bridges, Arenas, Pubs, etc.

Our technical and research team members are all senior experts with decades of experience in LED industry, ensure us to provide full range of lighting products with high quality. We have our own design of light fittings, LED drive and control systems, thermotics and optical applications. All our products had gained the certificates of CE, RoHS and ISO9001: 2008, etc.

With more than 4500 sqm modern factory, most advanced production and test machines, and experienced tech, production and sales teams, we LEDit has become one of the biggest and best supplier of LED decoration lighting system in China Mainland.

We're open to discuss with you about any process about the LED decoration lighting business.

Research, design, development, production, sales or after-service

As long as you have any idea or need, we'll be glad to hear from you.
