| Price: | US $ 5-10/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
1) Outdoor Lightning protection.
2) Electronic Static Discharge (ESD) protection.
3) Tempered glass cover, Anti-UV and Severe weather resistant.
4) High quality driver IC to improve the reliability and stability of whole system.
5) Lamps are separated with Control system, saving lots of installation time and cost.
-Specifications-
| Basic Parameter | |
| Model | H351-S18/24/36-RGB |
| Color Grey | RGB 256 grey scale each, 16777216 kinds of color in total |
| Light Source | 18/24/36 pcs High Power LED |
| LED Chip | Epistar/ Cree |
| Wave Length | 625nm±5nm, 525nm±5nm, 470nm±5nm |
| Lifetime | 50,000Hours |
| Material | Tempered glass cover / Aluminum Alloy |
| Drive Mode | DC/ DMX512 |
| Weight | 3.0kg/pc |
| Environment Parameter | |
| working Temperature | -20°C~50°C |
| Storage Temperature | -40°C~70°C |
| Ingress Protection | IP66 |
| Controller | |
| controller | SS main controller |
| Sub-controller | SS Sub controller ( 8 port output, each output can support 512pixels) |
| Electricity | |
| Working Input Voltage | DC 24V / AC 220V |
| Max Power Consumption | 18W / 24W / 36W/pc |
| Average Power Consumption | 10.8W / 14.4W / 21.6W/pc |
| Performance | |
| Brightness | 65 lm/w |
| Beam Angle | 12°x 48°/10°x 60° |
| Modle No. | Voltage | Power | Color | Source | Control | Lux |
| 351-S18-W | AC220V | 18W | White | 18pcs XP-E LED | Always on | 1800(lm) |
| 351-S18-RGB-D | AC220V | 18W | RGB | 18pcs XP-E LED | Always on | 1260(lm) |
| 351-S24-W | AC220V | 24W | White | 24pcs XP-E LED | Always on | 2400(lm) |
| 351-S24-RGB-D | AC220V | 24W | RGB | 24pcs XP-E LED | Always on | 1680(lm) |
| 351-S36-W | AC220V | 36W | White | 36pcs XP-E LED | Always on | 3600(lm) |
| 351-S36-RGB-D | AC220V | 36W | RGB | 36pcs XP-E LED | Always on | 2520(lm) |
| Prod Model: | H-351-S18-W |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

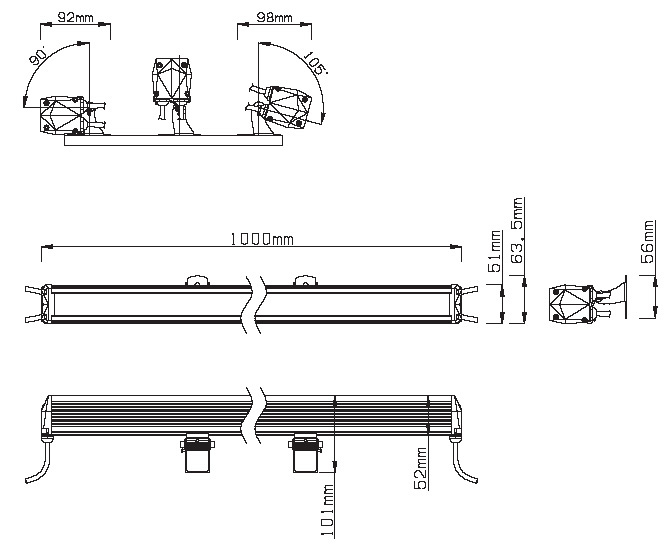

| Tube Size: | 51X52X1000mm |
| Emitting Color: | RGB |
| IP Rating: | IP66 |
| Diffuser: | Tempered Glass |
| Lifespan: | 50000 hours |
| Warranty: | 2 Years |
| Certification: | VDE |
| Electric Current Type: | DC |
| Input Voltage: | 24V |
| Power: | 18W |
| Beam Angle: | 12°X 48°/10°X 60° |
