Home LED Light Products LED Solar Street Light with Double Arm (JS-A20155250)

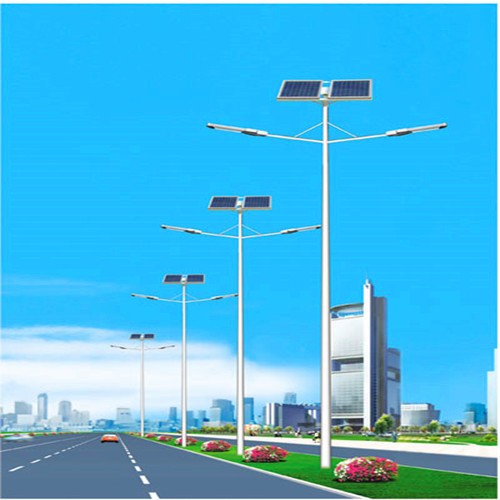

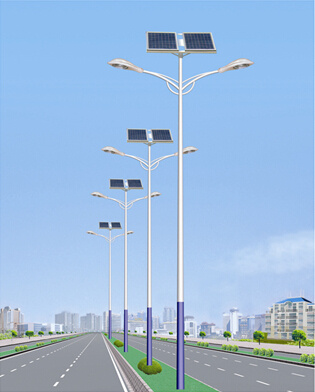

LED Solar Street Light with Double Arm (JS-A20155250)

LED Solar Street Light with Double Arm (JS-A20155250)
Price: US $ 425-435/Set
Trade Terms: FOB
Min Order: 100/Set
Pay Type: T/T


Product Details

Basic Info.

Model NO.:JS-A20155250
Light Source:LED Lamp
Lamp Body Material:Aluminum Alloy
Light Type:Solar
Color Temperature:Cool White
Power:50W *2
Technics:Hand-woven
Illumination Time:6h
Cell Type:Gel Battery
Charging Time (H):12
Usage:Garden, Street, Factory
IP Rating:IP65
Certification:CCC ISO
Voltage:12/24V
With Light Source:With Light Source
Working Mode:Turn on and off Automaticly
Maintenance:Free-Maintenance
Export Markets:Global

Additional Info.
Packing:Carton and Pallet
Standard:SGS
Origin:Jiangsu China
Production Capacity:1000sets/Month

Working principle:
1. LED solar street light relies on solar energy, which is clean, endless and environment-friendly.
2. The system is mainly composed of solar panel, light source, controller and free-maintenance battery.
3. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting.
4. The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action

Configuration:



50W Double Arm Solar LED Light for Lighting
50W/24V LED lamp *2
360W/24V solar panel(180W/24V *2)
10A/24V charge controller *2
200AH/24V GEL battery(200AH/12V *2)
200/24 type underground battery box
5m galvanized pole with arm and brackets.

Detailed technical parameter:
Detailed technical parameter for 50W double arm solar LED street light
Working Time:10 hours/day, 3 rainy or cloudy dasy backup
Component NameTechnical Parameter for components
50W/24V LED lamp *2LED Power:50W
Power Voltage:24VDC
Total Lums:5800lm
Color Temperature:6500K
Illumination:8M≥30Lux
LED Quantity:1W*50PCS
Luminous efficiency:140~150Lm/W
CRI:>80
IP Protection:IP65
Illumination Area:24*10M
LEDs chip:Cree
Light transmittance:≥90%
Size:520*220*60MM
Weight:5.5Kgs
Prod Model: JS-A20155250
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Illumination Flux:5000im: Illumination Efficiency:>90%
Power Supply: Solar
Color Temperature: Cool White
Lamp Body Material: Aluminum Alloy
Application: Garden
IP Rating: IP65
Certification: CCC
With Light Source: With Light Source
LED Chips Brand: CREE
Power: 50W
Input Voltage: 12/24V
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.

Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances

We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.

Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.

In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
