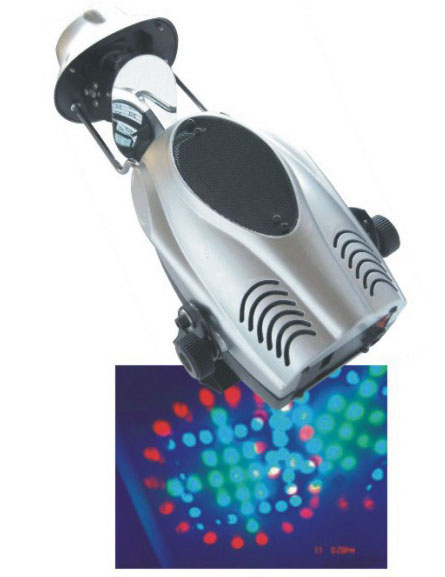

LED Light, LED Disco Light, LED Effect Light, LED Scan Light, DMX LED Light, Professional Lighting, Stage light, Scan Light, Disco Light
Model: LED 09
Voltage: AC 110V/220V 50Hz/60Hz
Power: 50W
Light source: LED Red, Green, Blue
The quality of light: 5mm LED 64LED(R32. B20. G12)
Function: Color change, sound control, patterns change according to music, patterns scan
Control signal: Controller with DMX 512(6CH)
Applicable occasion: Dance hall, stage, bar
1. DMX-512 control
2. Dip switches Function
Notice: In Master-slave, Master can be Auto or Sound, Slave with master running in-phase.
CH |
Value |
FUNCTION |
CH 1 A Pattern |
0 |
Right motor reversal rotation |
1-200 |
0-360° Control1.8° choose address |
201-255 |
Right motor positive direction rotation |
CH 2 B Pattern |
0 |
Left motor reversal rotation |
1-200 |
0-360° Control1.8° choose address |
201-255 |
Left motor positive direction rotation |
CH 3A Pattern Speed |
0-255 |
Motor speed adjustment, fast to slow |
CH 4B Pattern Speed |
0-255 |
50 pattern to choose in right |
CH 5A Motor Speed |
0-255 |
50 pattern to choose in Left |
CH 6B Motor Speed |
0-255 |
Pattern rotation speed |
ON |
OFF |
Function |
|
1, 2, 3, 4, 5, 6, 7, 8, 9, 10 |
1-50 pattern cycle auto running |
9 |
1, 2, 3, 4, 5, 6, 7, 8, 10 |
Sound activity, Sensitive adjustment,
(Delay & shut in not sound) |
10 |
1, 2, 3, 4, 5, 6, 7, 8, 9 |
DMX-512---6 CH Control ID=1 |
5, 10 |
1, 2, 3, 4, 6, 7, 8, 9 |
DMX-512---6 CH Control ID=2 |
6, 10 |
1, 2, 3, 4, 5, 7, 8, 9 |
DMX-512---6 CH Control ID=3 |
5, 6, 10 |
1, 2, 3, 4, 7, 8, 9 |
DMX-512---6 CH Control ID=4 |
7, 10 |
1, 2, 3, 4, 5, 6, 8, 9 |
DMX-512---6 CH Control ID=5 |
5, 7, 10 |
1, 2, 3, 4, 6, 7, 8, 9 |
DMX-512---6 CH Control ID=6 |
10 |
1, 2, 3, 4, 5, 6, 7, 8, 9 |
ID=1 CH1 Control A Pattern-CH6
Control LED Speed |
1, 10 |
2, 3, 4, 5, 6, 7, 8, 9 |
ID=1 CH2 Control A Pattern -CH7
Control LED Speed |
2, 10 |
1, 3, 4, 5, 6, 7, 8, 9 |
ID=1 CH3 Control A Pattern-CH8
Control LED Speed |
1, 2, 10 |
3, 4, 5, 6, 7, 8, 9 |
ID=1 CH4 Control A Pattern -CH9
Control LED Speed |
3, 10 |
1, 2, 4, 5, 6, 7, 8, 9 |
ID=1 CH5 Control A Pattern -CH10
Control LED Speed |
1, 3, 10 |
2, 4, 5, 6, 7, 8, 9 |
ID=1 CH6 Control A Pattern -CH11
Control LED Speed |
2, 3, 10 |
1, 4, 5, 6, 7, 8, 9 |
ID=1 CH7 Control A Pattern -CH12
Control LED Speed |
1, 2, 3, 4, 5
6, 7, 8, 10 |
9 |
slave (Master-slave), 17CH |
