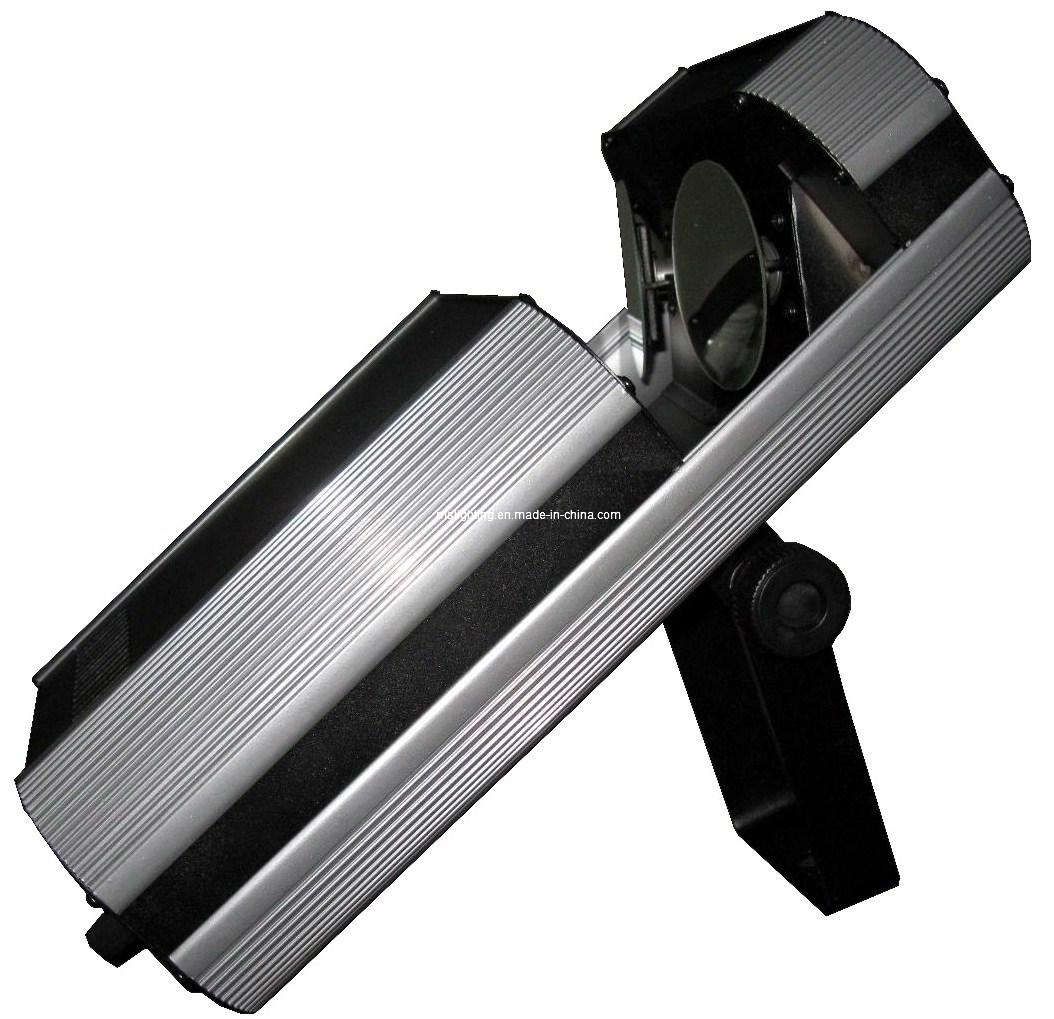

LED Light,LED Disco Light,LED Effect Light,LED Scan Light,DMX LED Light,Professional Lighting, Stage light, Scan Light,Disco Light
Model: LED 11
Voltage: AC 110V/220V 50Hz/60Hz
Power: 50W
Light source: LED Red,Green,Blue
The quality of light: 5mm LED 128LED(R64.B40.G24)
Function: color change,sound control,patterns change according to music,patterns scan
Control signal: controller with DMX 512(6CH)
Applicable occasion: dance hall,stage,bar
1. DMX-512 control
2. Dip switches Function
Notice: In Master-slave, Master can be Auto or Sound, Slave with master running in-phase.
CH |
Value |
FUNCTION |
CH 1 A Pattern |
0 |
Right motor reversal rotation |
1-200 |
0-360°Control1.8°choose address |
201-255 |
Right motor positive direction rotation |
CH 2 B Pattern |
0 |
Left motor reversal rotation |
1-200 |
0-360°Control1.8°choose address |
201-255 |
Left motor positive direction rotation |
CH 3A Pattern Speed |
0-255 |
Motor speed adjustment, fast to slow |
CH 4B Pattern Speed |
0-255 |
50 pattern to choose in right |
CH 5A Motor Speed |
0-255 |
50 pattern to choose in Left |
CH 6B Motor Speed |
0-255 |
Pattern rotation speed |
ON |
OFF |
Function |
|
1,2,3,4,5,6,7,8,9,10 |
1-50 pattern cycle auto running |
9 |
1,2,3,4,5,6,7,8,10 |
Sound activity, Sensitive adjustment,
(Delay & shut in not sound) |
10 |
1,2,3,4,5,6,7,8,9 |
DMX-512---6 CH Control ID=1 |
5,10 |
1,2,3,4,6,7,8,9 |
DMX-512---6 CH Control ID=2 |
6,10 |
1,2,3,4,5,7,8,9 |
DMX-512---6 CH Control ID=3 |
5,6,10 |
1,2,3,4,7,8,9 |
DMX-512---6 CH Control ID=4 |
7,10 |
1,2,3,4,5,6,8,9 |
DMX-512---6 CH Control ID=5 |
5,7,10 |
1,2,3,4,6,7,8,9 |
DMX-512---6 CH Control ID=6 |
10 |
1,2,3,4,5,6,7,8,9 |
ID=1 CH1 Control A Pattern-CH6
Control LED Speed |
1,10 |
2,3,4,5,6,7,8,9 |
ID=1 CH2 Control A Pattern -CH7
Control LED Speed |
2,10 |
1,3,4,5,6,7,8,9 |
ID=1 CH3 Control A Pattern-CH8
Control LED Speed |
1,2,10 |
3,4,5,6,7,8,9 |
ID=1 CH4 Control A Pattern -CH9
Control LED Speed |
3,10 |
1,2,4,5,6,7,8,9 |
ID=1 CH5 Control A Pattern -CH10
Control LED Speed |
1,3,10 |
2,4,5,6,7,8,9 |
ID=1 CH6 Control A Pattern -CH11
Control LED Speed |
2,3,10 |
1,4,5,6,7,8,9 |
ID=1 CH7 Control A Pattern -CH12
Control LED Speed |
1,2,3,4,5
6,7,8,10 |
9 |
slave (Master-slave),17CH |
