LED Disco Light, DMX LED Light, LED Effect Light, LED Stage Light,

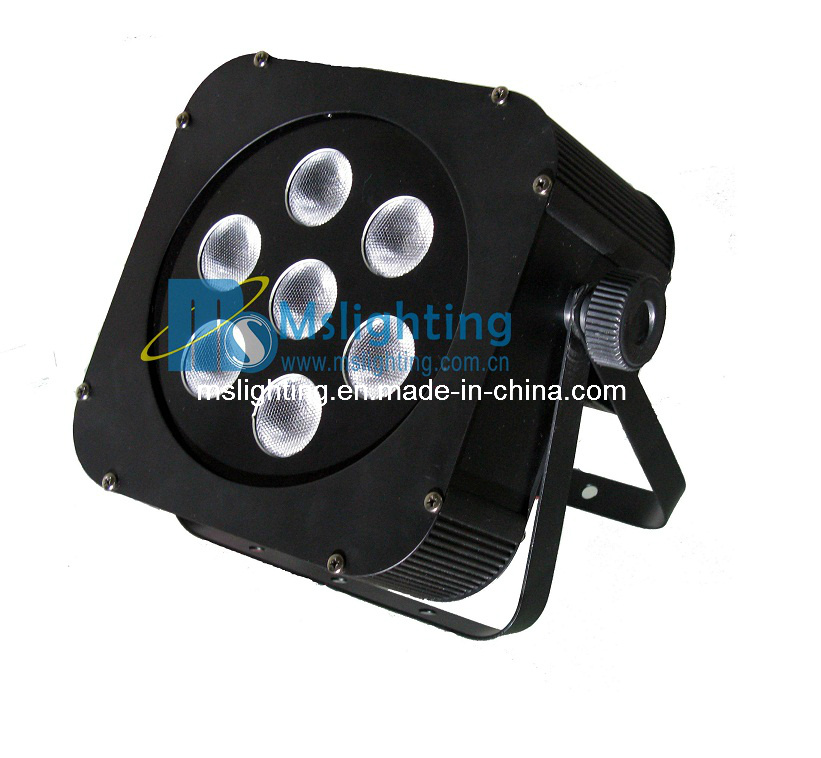

This light adopts in 7* RGB3-IN-1 LED as light sources. It is new generation green high technology product. It projects long distance, big angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.
The cover is aluminum alloy with excellent polishing. The nice design is good for dispelling heat very well and long life. Though distance from the light fixture to the controller is 20m, the effect is still very good. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting.
It is widely used in stage show, casino, advertisement, outside wall of mansion etc. It is controlled by controller with DMX; The effect can be gradual change, jump change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.
|
Specification: |
|
Model |
LED 114B (7*3-IN-1 RGB) |
|
DMX Channel |
6CH |
|
Control panel |
Digital 4 characters alphanumeric |
|
Housing Color |
Black |
|
Operating voltage |
100-230V AC |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity |
|
Connector |
3-PinXLR (In and Out) |
|
NO.of LED |
7*3-IN-1 RGB LED LAMP |
|
LED Life Time |
80000-100,000 hours |
|
Beam Angle |
25°/30° |
|
Power Consumption |
20W |
|
Light Projecting Distance |
10-15M |
|
IP Rating |
Indoor |
|
Operating Temperature |
-20°c-+45°c |
|
Packing Dimension |
25*15*26cm/ 62*45*56cm (6pcs) |
|
Gross Weight |
2.50KGS /18.00kg(6pcs) |
|
Compatibility: |
|
1. Color Range: 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
|
2. Dimming 0-100%with regulated constant color control |
|
3.Strobe: 10 Flashed per second (any color) |
|
4. Function: it is max mix color, color change, flash, speed/luminance the adjustable |
|
5. 6CH Mode DMX Value |
CH 1_ Red (1-255, Dimmer, from dart to light) |
|
CH 2 _ Green (1-255, Dimmer, from dart to light) |
|
CH 3_Blue (1-255, Dimmer, from dart to light) |
|
CH 4_RGB Mixing (1-255, Dimmer, from dart to light) |
|
CH 5_ Strobe (1-255, from slow to fast) |
|
CH 6 _ Dimmer |
6.Thermal
|
Maximum ambient temperature: 40° |
|
Maximum housing temperature: 60° |
MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
