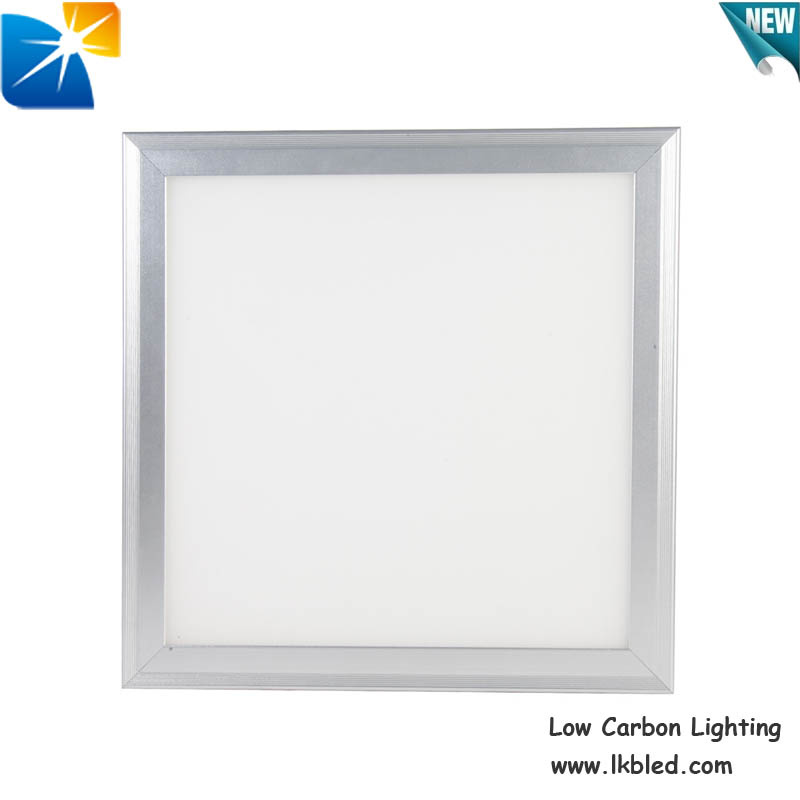

Hot saling! LED panel light/200x200 panel light
Specifications
Input voltage: DC36-42V
Power consumption: 15W
LED type: SMD5630, 36PCS
Luminous flux: 1100-1300lm(cool white)
Color temperature: 2700-7000K
Color: Red/blue/white/yellow/green
Life time: >50000h
Operating temperature: -20 degree celsius to 40 degree celsius
Humidity operating: 10-80%
Certifications: CE RoHS
Features
1. Lighting comes all round into light guide panel, more efficient dissipation.
2. Energy saved up to 75%, high intensity
3.5-year life span
4. Special different view angles, mixing lighting design
5. New inner high efficiency(95%) with heat protection system, the constant current driver can work under unstable voltage.
6. Special circuit design, each LED can work separately thus it can avoid the influence that a broken LED causes.
7. No electric wave
8. No such hazard that mercury or lead enters the environment
9. No RF interference
Applications
1. Hotels
2. Conference/Meeting rooms
3. Factories &Offices
4. Commercial purposes
5. Residential/ Institution buildings
6. Schools, colleges and universities
7. Hospitals
8. Places where energy saving and high color rendering index lighting are needed
|
Dimension |
200x200x8.8mm |
|
Lighting Source |
SMD5630 LED |
|
Power Consumption |
15W |
|
Input Voltage (Driver) |
90-265VAC /50-60HZ |
|
Input Voltage (Lighting) |
36-42VDC |
|
Luminous Efficiency |
>88lm/w |
|
PF |
≥ 0.95 |
|
Operation Temperature |
-40 ~ +50 centigrade |
|
CCT |
2700K~6500K |
|
Luminous |
1100-1300 |
|
Ra |
≥ 83 |
|
Bean-angle |
> 120° |
|
Protection grade |
IP44 |
|
Insulation Class |
CLASS II |
|
Net Weight |
0.9 KG |
