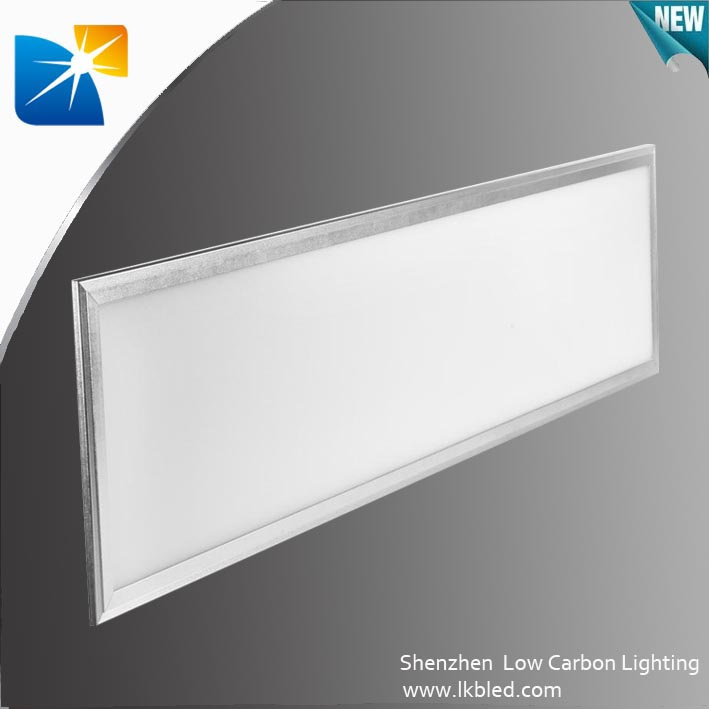

300x1200mm 72w New Hot Panel Light LED
300x1200mm-72W Panel light LED/Panel light LED new /latest Panel light LED/Popular Panel light LED/New hot Panel light LED/High brightness Panel light LED/Famous brand driver panel light LED(LKB-P3012S168P5630-72W001)
Specifications of 300x1200mm 72w New Hot Panel Light LED
Input voltage: AC90-240V
Power consumption: 72W
LED type: SMD5630, 168PCS
Luminous flux: 6400-6800lm(cool white)
Color temperature: 2700-7000K
Color: Red/blue/white/yellow/green
Life time: >50000h
Operating temperature: -20 degree celsius to 40 degree celsius
Humidity operating: 10-80%
Certifications: CE RoHS
Feature of 300x1200mm 72w New Hot Panel Light LED
1. Lighting comes all round into light guide panel, more efficient dissipation.
2. Energy saved up to 75%, high intensity
3.5-year life span
4. Special different view angles, mixing lighting design
5. New inner high efficiency(95%) with heat protection system, the constant current driver can work under unstable voltage.
6. Special circuit design, each LED can work separately thus it can avoid the influence that a broken LED causes.
7. No electric wave
8. No such hazard that mercury or lead enters the environment
9. No RF interference
Applications of 300x1200mm 72w New Hot Panel Light LED
1. Hotels
2. Conference/Meeting rooms
3. Factories &Offices
4. Commercial purposes
5. Residential/ Institution buildings
6. Schools, colleges and universities
7. Hospitals
8. Places where energy saving and high color rendering index lighting are needed
|
Dimension |
300x1200x8.8mm |
|
Lighting Source |
SMD5630 LED |
|
Power Consumption |
72W |
|
Input Voltage (Driver) |
90-265VAC /50-60HZ |
|
Input Voltage (Lighting) |
36-42VDC |
|
Luminous Efficiency |
>88lm/w |
|
PF |
≥ 0.95 |
|
Operation Temperature |
-40 ~ +50 centigrade |
|
CCT |
2700K~6500K |
|
Luminous |
6400-6800 |
|
Ra |
≥ 83 |
|
Bean-angle |
> 120° |
|
Protection grade |
IP44 |
|
Insulation Class |
CLASS II |
|
Net Weight |
4.65KG |
