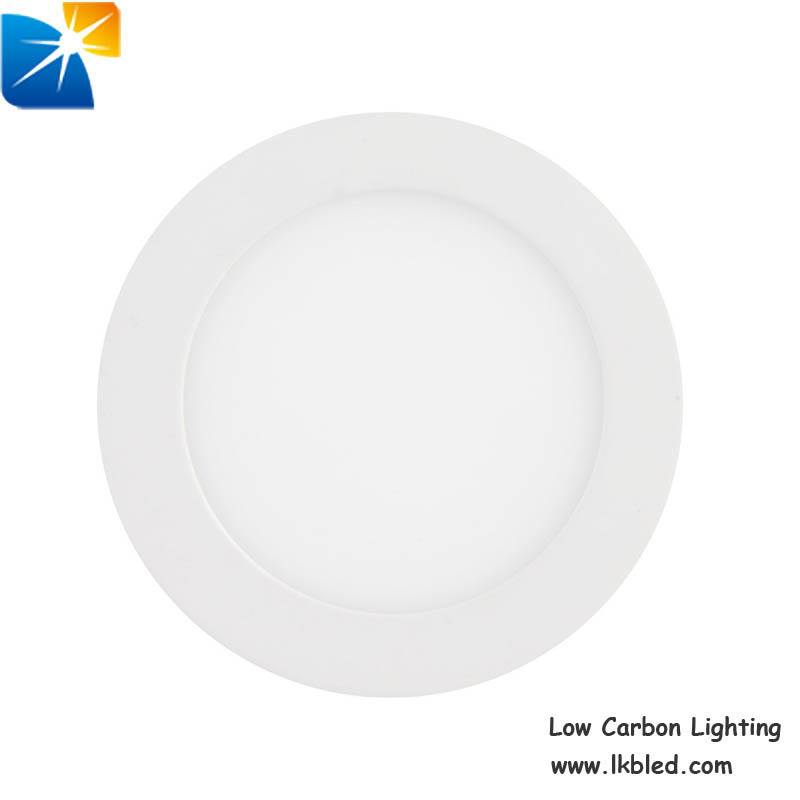

7W 145mm Round Panel Light LED
Color Temperature and Brightness Adjustable LED round Panel light /7W round panel light/145mm round panel light
Specifications of 7W 145mm Round Panel Light LED
Input voltage: DC36-42V
Power consumption: 7W
LED type: 70PCS SMD3014
Luminous flux: 500-600LM
Color temperature: 2700-7000K
Color: Red/blue/white/yellow/green
Life time: >50000h
Operating temperature: -20 degree celsius to 40 degree celsius
Humidity operating: 10-80%
Certifications: CE/RoHS/FCC/TUV.
Features of 7W 145mm Round Panel Light LED
1. Lighting comes all round into light guide panel, more efficient dissipation.
2. Energy saved up to 75%, high intensity
3.5-year life span
4. Special different view angles, mixing lighting design
5. New inner high efficiency(95%) with heat protection system, the constant current driver can work under unstable voltage.
6. Special circuit design, each LED can work separately thus it can avoid the influence that a broken LED causes.
7. No electric wave
8. No such hazard that mercury or lead enters the environment
9. No RF interference
Applications of 7W 145mm Round Panel Light LED
1. Hotels
2. Conference/Meeting rooms
3. Factories &Offices
4. Commercial purposes
5. Residential/ Institution buildings
6. Schools, colleges and universities
7. Hospitals
8. Places where energy saving and high color rendering index lighting are needed
|
Part no |
HH-RP145S70P3014-7W001 |
|
|
145mm round- (4") |
|
Voltage |
AC90-265V |
|
PF |
7W±5% |
|
COLOR |
2700-7500K |
|
Lumen |
500-600LM |
|
CRI |
≥72 |
|
LED qty |
70PCS SMD3014 |
|
Size |
145*13MM |
|
install size |
130mm |
