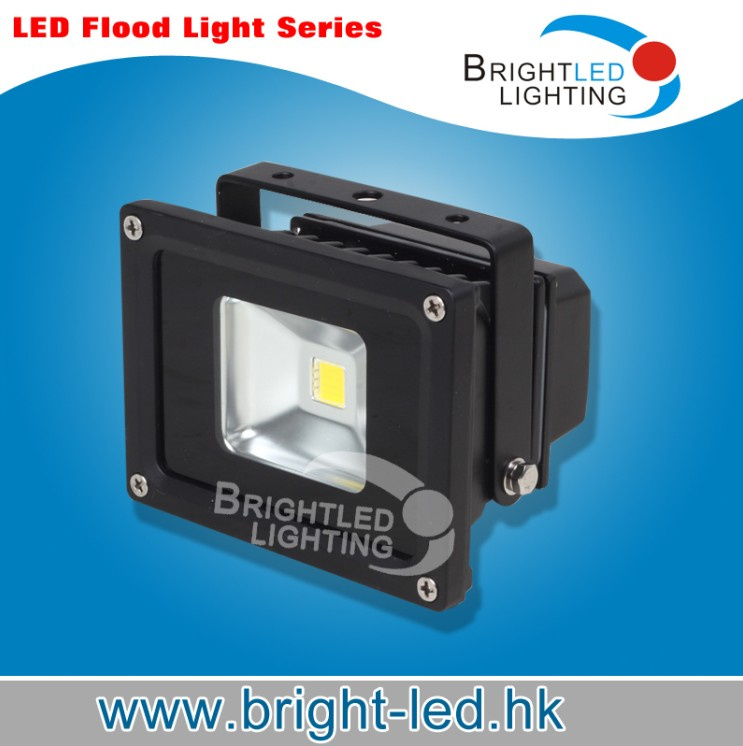

LED flood light /LED flood lights:
Type: BL-FL-10W
LED flood light Light source: LED
LED flood light Power: 10W
Work voltage: AC(85V-265V)/(50-60Hz)
Power factor(PF): >0.9
Light efficiency: >80lm/w
Lumens: >800LM
No UV or IR light radiation
Fixture efficiency: >90%
View angle: 120°
Color instruction: >80
Color temperature(CCT): 2700-7000K
Life time: >50, 000 hrs
Luminance decrease: Keep lighting 1000hours decrease1%
IP grade: IP65
CE certification
Net weight: 0.7kg
Dimension of the product: 115*85*87mm
Dimension of the external box: 31*55*20cm
Quantity (PCS): 20 PCS in a carton
TYPICAL APPLICATIONS:
Energy Saving Programs
Exterior of building light
On the bill board
Brightled Lighting flood light series |
Type |
Specification |
LEDchip |
Power |
Lumens |
MOQ (pcs) |
Packing |
LED flood light |
View angle: 120° |
Bridgelux |
10W |
80lm/w |
10 |
1: Qty/ctn: 20pcs/ctn
2: Gross Weight: 15kgs
3: Sizeofcarton: 310*550*200mm |
Color: W/WW/CW/R/G/B |
Net weight: 0.7kgs |
BL-FL10W-01 |
Dimension: 125*96*85mm |
LED flood light |
View angle: 140° |
Bridgelux |
20W |
80lm/w |
10 |
1: Qty/ctn: 4pcs/ctn
2: Gross Weight: 11kgs
3: Sizeofcarton: 565*345*260mm |
Color: W/WW/CW/R/G/B |
Net weight: 2.5kgs |
BL-FL20W-01 |
Dimension: 225*185*130mm |
LED flood light |
View angle: 90° |
Bridgelux |
20W |
80lm/w |
10 |
1: Qty/ctn: 4pcs/ctn
2: Gross Weight: 11kgs
3: Sizeofcarton: 565*345*260mm |
Color: W/WW/CW/R/G/B |
Net weight: 2.5kgs |
BL-FL20W-2 |
Dimension: 225*185*130mm |
LED flood light |
View angle: 140° |
Bridgelux |
30W |
80lm/w |
10 |
1: Qty/ctn: 4pcs/ctn
2: Gross Weight: 11kgs
3: Sizeofcarton: 565*345*260mm |
Color: W/WW/CW/R/G/B |
Net weight: 2.5kgs |
BL-FL30W-1 |
Dimension: 225*185*130mm |
LED flood light |
View angle: 90° |
Bridgelux |
30W |
80lm/w |
10 |
1: Qty/ctn: 4pcs/ctn
2: Gross Weight: 11kgs
3: Sizeofcarton: 565*345*260mm |
Color: W/WW/CW/R/G/B |
Net weight: 2.5kgs |
BL-FL30W-2 |
Dimension: 225*185*130mm |
LED flood light |
View angle: 140° |
Bridgelux |
50W |
80lm/w |
10 |
1: Qty/ctn: 4pcs/ctn
2: Gross Weight: 15kgs
3: Sizeofcarton: 655*380*290mm |
Color: W/WW/CW/R/G/B |
Net weight: 3.5kgs |
BL-FL50W-1 |
Dimension: 287*236*160mm |
LED flood light |
View angle: 90° |
Bridgelux |
50W |
80lm/w |
10 |
1: Qty/ctn: 4pcs/ctn
2: Gross Weight: 15kgs
3: Sizeofcarton: 655*380*290mm |
Color: W/WW/CW/R/G/B |
Net weight: 3.5kgs |
BL-FL50W-2 |
Dimension: 287*236*160mm |
LED flood light |
View angle: 130° |
Bridgelux |
70W |
80lm/w |
10 |
1: Qty/ctn: 2pcs/ctn
2: Gross Weight: 14kgs
3: Sizeofcarton: 450*320*300mm |
Color: W/WW/CW/R/G/B |
Net weight: 6.5kgs |
BL-FL70W-1 |
Dimension: 285*370*115mm |
LED flood light |
View angle: 130° |
Bridgelux |
70W |
80lm/w |
10 |
1: Qty/ctn: 1pcs/ctn
2: Gross Weight: 11.6kgs
3: Sizeofcarton: 400*300*100mm |
Color: W/WW/CW/R/G/B |
Net weight: 6.5kgs |
BL-FL70W-2 |
Dimension: 285*370*115mm |
LED flood light |
View angle: 130° |
Bridgelux |
50W |
80lm/w |
10 |
1: Qty/ctn: 2pcs/ctn
2: Gross Weight: 16kgs
3: Sizeofcarton: 400*300*200mm |
Color: W/WW/CW/R/G/B |
60W |
Net weight: 7.39kgs |
70W |
BL-FL370-1 |
Dimension: 393*285*93mm |
80W |
LED flood light |
View angle: 130° |
Bridgelux |
50W |
80lm/w |
10 |
1: Qty/ctn: 2pcs/ctn
2: Gross Weight: 16kgs
3: Sizeofcarton: 400*300*200mm |
Color: W/WW/CW/R/G/B |
60W |
Net weight: 10.6kgs |
70W |
BL-FL370-2 |
Dimension: 393*285*93mm |
80W |
LED flood light |
View angle: 130° |
Bridgelux |
|
80lm/w |
10 |
1: Qty/ctn: 1pcs/ctn
2: Gross Weight: 11.6kgs
3: Sizeofcarton: 600*300*100mm |
Color: W/WW/CW/R/G/B |
100W |
Net weight: 10.6kgs |
120W |
BL-FL570-1 |
Dimension: 593*285*93mm |
140W |
LED flood light |
View angle: 130° |
Bridgelux |
|
80lm/w |
10 |
1: Qty/ctn: 1pcs/ctn
2: Gross Weight: 11.6kgs
3: Sizeofcarton: 600*300*100mm |
Color: W/WW/CW/R/G/B |
100W |
Net weight: 10.6kgs |
120W |
BL-FL570-2 |
Dimension: 593*285*93mm |
140W |
