Product Details
Basic Info.
Model NO.:JS-C2015010670
Light Source:LED Lamp
Lamp Body Material:Aluminum
Light Type:Wind and Solar Hybrid
Color Temperature:5000k-8000k
Power:60W
Technics:Hand-woven
Illumination Time:12h
Cell Type:Gel Battery
Charging Time (H):6
Usage:Garden, Street
IP Rating:IP65
Certification:CE, CCC, RoHS
Voltage:12/24V
With Light Source:With Light Source
Working Mode:Turn on and off Automaticly
Maintenance:Free-Maintenance
Environment:Eco-Friendly
Additional Info.
Trademark:LTE
Packing:Carton and Pallet
Standard:CE,CCC, ROHS
Origin:Yangzhou, Jiangsu province, China
HS Code:94054090
Production Capacity:1000sets/Month
Product Description

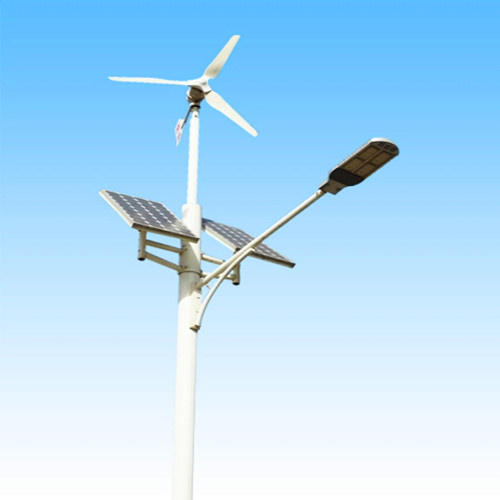

Brief Specification for 60W Wind and Solar hybrid LED Street Light with 8m pole, designed based on average solar radiation condition 4.5KWH, Lighting hours: 10 Hrs/Day and 3 rainy days for backup.
Configuration:
wind and solar hybrid LED street light | 40W/24V LED lamp |
| 60W/24V solar panel |
| 300W/24V wind generator |
| 10A/24V wind-solar controller |
| 80AH/24V GEL battery |
| 120/24 type underground battery box |
| 8m galvanized pole with arm and brackets. |
Detailed technical parameter:
| Detailed for 30W wind and solar hybrid LED street light |
| Working Time:10 hours/day, 3 rainy or cloudy dasy backup |
| Component Name | Technical Parameter for components |
| 40W/24V LED lamp | LED Power: | 30W |
| Power Voltage: | 24VDC |
| Total Lums: | 4600lm |
| Color Temperature: | 6500K |
| Illumination: | 7M≥28Lux |
| LED Quantity: | 1W*40PCS |
| Luminous efficiency: | 140~150Lm/W |
| CRI: | >80 |
| IP Protection: | IP65 |
| Illumination Area: | 22*8M |
| LEDs chip: | BridgeLux from USA |
| Light transmittance: | ≥90% |
| Size: | 520*220*60MM |
| Weight: | 4.5Kgs |
| 60W/24V Solar panel | Nominal Power(W): | 30W/24V |
| Type of cell: | Mono or Poly |
| Encapsulation: | Glass/EVA/Cells/EVA/TPT |
| Cells efficiency: | 17.88% |
| Maximum power(W): | 61.5W |
| Voltage at max power(VMP): | 35.38V |
| Current at max power(IMP): | 1.70A |
| Open circuit voltage(VOC): | 43.21V |
| Short circuit current(ISC): | 1.98A |
| Dimension(MM): | 657*670*30MM |
| Weight(KGS): | 4.6KGS |
| 300W/24V wind generator | Rated power(W): | 300W |
| Initial wind speed(m/s): | 1.5M/S |
| Cutting wind speed(m/s): | 2.5M/S |
| Rated wind speed(m/s): | 12M/S |
| Safe wind speed limited(m/s): | 35M/S |
| Working voltage(W): | 24VDC |
| Blades quantity: | 3 |
| Working wind speed range(m/s): | 3-20M/S |
| Rotor diameter(M): | 1.2M |
| Wind turbine type: | PMG |
| Wind-solar hybrid controller | Max Wind Power Input(V): | 300W |
| Max Solar Power Input(W): | 200W |
| Input Voltage(V): | 24V |
| Floating Charge(V): | 28V |
| Over Voltage Shutdown(V): | 32V |
| Over Voltage Recovery(V): | 31V |
| Under Voltage Shutdown(V): | 21V |
| Under Voltage Recovery(V): | 24V |
| Standby Current(MA): | 40MA |
| Output Power(W): | 300W |
| Output Vac(V): | 100/110/220/230/240 |
| Output Voltage Regulation: | ± 5% typical |
| Output Frequency: | 50/60 Hz |
| Output Waveform: | True Sine Wave |
| Efficiency: | >90% |
| 80AH/24V GEL battery(80AH/12V *2) | Nominal Voltage(V): | 12V |
| Capacity(10HR,25ºC): | 80AH |
| Dimension | Length(MM) | 329MM |
| Width(MM) | 172MM |
| Height(MM) | 215MM |
| Total Height(MM) | 221MM |
| Capacity 25ºC (77ºF) To 1.70V/Cell | 20 hr rate: | 92AH |
| 10 hr rate: | 90AH |
| 5 hr rate: | 72AH |
| 1 hr rate: | 46AH |
| Weight(KGS): | 24.5KGS |
| 120 Type battery box | Material: | PP(120/24) |
| 7M glavanized pole(with 1.2m arm and brackets) | Standard height: | 7M |
| Material: | Q235 |
| Top diameter(MM): | 76MM |
| Bottom diameter(MM): | 155MM |
| Thickness(MM): | 3MM |
| Baseplate(MM): | 280*280*14MM |
| Anchor bolts(MM): | 4*M18*600MM |
| Hot dip galvanized thickness not less than 80um |
Light Source:LED Light
Lamp Power:60W,High Brightness LED Chip
Power Supply:Solar
Application:Highway, Square, Garden
IP Rating:IP65
Certification:CE, RoHS, CCC, ISO
Designing Points:with Wind and Solar Hybrid
Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Western Europe
Additional Info.
Trademark:BRIGHT; AS SOLAR; BR SOLAR
Packing:Standard
Standard:60W LED, Wind-Solar Hybrid Street Lights, 7M
Origin:China
HS Code:94054090
Production Capacity:5000PC/Month
Product Description
30W LED with Wind-Solar Hybrid Street Lights,6Metres Pole
Details:
1. Pole Height: 7M, Diameter: 75*150mm, Thickness: 3.50mm
Plastic coated on HDG pole, Rust Proof, resistant to wind: 150KM/H
2. Applicable light source: 30W LED, 3600LM,Lifespan:>80000Hrs.
3. PV Module: 110W*1PC, Crystalline, 90% of minimum warranted power output over 12 years,80% over 20 years;
4. Gelled Battery: 120Ah*1PC, Fee Maintenance, Deep Cycle, Sealed Type, Deep Cycle.
5.Battery Box: Engineer Plastic, Bury under ground
6. Controller: 10A/12V Automatic light and time control system.
7.Wind turbine material:300W, Forced Nylon Fiber in Blade, Aluminium alloy in body, 48mm Steel Tube connection.
Design based on 5.0KWH solar radiation;
Lighting hours: 11-12 Hrs/Day*3-4 days no sun;
Getting more information, or other requirements for this 30W LED Wind-Solar Hybrid Street Ligh
