Product Details
Basic Info.
Model NO.:JS-A20158160
Light Source:LED Lamp
Lamp Body Material:Aluminum Alloy
Light Type:Solar
Color Temperature:Cool White
Power:60w
Illumination Time:10h
Cell Type:Lithium Battery
Charging Time (H):6h
Usage:Garden, Street, Road /Outside
IP Rating:IP65
Certification:CE, RoHS
Voltage:12/24V
With Light Source:With Light Source
Warranty:5 Years
Export Markets:Global
Additional Info.
Trademark:Jinshang
Packing:Standard Package
Origin:Jiangsu, China
Production Capacity:10000sets/Month
Product Description
Certificate CE SGS
Pole 8M High, hot-DIP galvanized steel, powder coated
Light source 80W High power LED, energy saving light, 2000LUMENS, 15LUX on the ground
Solar panel 180W mono-crystalline or poly-crystalline, conversion efficiency 15%
Battery 90AH/12VX2piece, maintenance free, fully-sealed lead acid storage battery
Controller 24V 10A, automatically controlled by microcomputer, over-charge and over-discharge protection
Working time 6-8 hours per day, 3-5 rainy or cloudy days backup when the battery is fully charged
Working temperature -20oC-+50oC
Model of switch light or time control
Wind Resistance 136km/h(please consult with us for the higher wind resistant models)
Battery Position underground, at the foot of the pole
Life span 80000hours
Safety grade IP65
The design, configuration and manufacture according to the customers requirements
Solar panel power 100W-200W
Light power 15W-100W (Luminous Flux 2500-5100LM, Illuminance 15-24Lx)
Pole height 7M -15M
Battery Gel cell deep cycle battery or standard deep cycle battery 80AH 100AH 150AH 200AH
| Components | Parameters |
| Solar Module | Pmax(W) | 30-400W |
| Vmp (V) | 35.0V |
| Imp (A) | 2.86A |
| Light Fixture | Material | Aluminum die casting & Toughened glass |
| Operating Temperature | -40°C~75°C |
| Protection Level | IP65 |
| LED Light Source | LED Chip | BRIDGELUX / Cree (Top brand in U.S.A.) |
| Color Temperature | 3800-6500K(white) |
| Luminous flux | 5300 LM |
| Operating temperature | -40°C~75°C |
| Current Source | DC 12V/24V |
| Power | 15W/18W/21W/24W/30W/36W/42W/48W/54W/60W |
| Lighting Pole | Height | 3m/ 4m/ 5m/ 6m/ 7m/ 8m/ 9m/ 10m/ 11m/ 12 m |
| Material | BAOSTEEL GROUP Q235/345/GR60 |
| Surface Treatment | Hot-dip galvanizing, Static spray, |
| Size | φ60-φ200,δ3-5m, vary according to models |
| Flange Plate | 300*300*16, vary according to models |
| Battery | Capacity | 200AH (100AH*2pcs) |
| Type | Gel/AGM Battery |
| Dimension | 546*1203*30 |
| Weight | 28Kg |
| Controller | Rated voltage and current | 12V/10A or 24V/10A waterproof |
| Weight | 0.165Kg |
| Two times rainy day backup
&Protective Function | Two times of rainy day backup.
Good protection: overcharging, discharging, voltage surge, reverse polarity, etc. |
| Accessories | Cable | 2.5 mm2, 15m |
| Battery Box | 200AH ABS battery box or metal box with hot-dip galvanizing spray treatment |
| Foundation Kit | Dismountable foundation kit, saving in shipping |
Product overviews:
Solar street lights consist of 5 main parts:
The solar panel is one of the most important parts of solar street lights, as the solar panel will convert solar energy into electricity. There are 2 types of solar panel: mono-crystalline and poly-crystalline. Conversion rate of mono-crystalline solar panel is much higher than poly-crystalline.
LED is usually used as lighting source of modern solar street light, as the LED will provide much higher Lumens with lower energy consumption. The energy consumption of LED fixture is at least 50% lower than HPS fixture which is widely used as lighting source in Traditional street lights. LEDs lack of warm up time also allows for use of motion detectors for additional efficiency gains.
Battery will store the electricity from solar panel during the day and provide energy to the fixture during night. The life cycle of the battery is very important to the lifetime of the light and the capacity of the battery will affect the backup days of the lights. There are usually 2 types of batteries: Gel Cell Deep Cycle Battery and Lead Acid Battery and many more.
Controller is also very important for solar street light. A controller will usually decide to switch on /off charging and lighting. Some modern controllers are programmable so that user can decide the appropriate chance of charging, lighting and dimming.
Strong Poles are necessary to all street lights, especially to solar street lights as there are often components mounted on the top of the pole: fixtures, panels and sometimes batteries. However, in some newer designs, the PV panels and all electronics are integrated in the pole itself. Wind resistance is
also a factor.

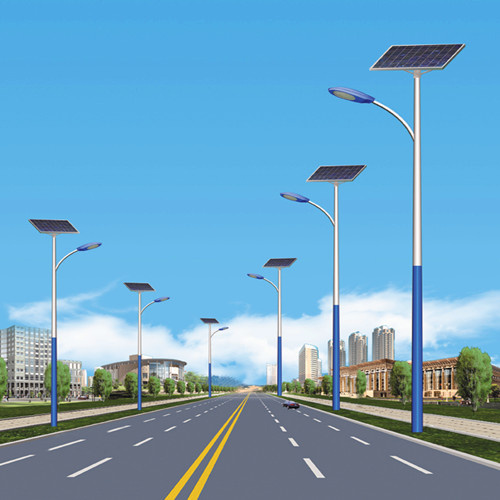

Applications of Our LED Solar Street Lighting
Solar Street Lighting
Solar Road Lighting
Solar Path Lighting
Solar Parking Lot Lighting
Solar Driving way Lighting
Solar Highway Lighting
Solar Freeway Lighting
Solar Avenue Lighting
Solar Sidewalk Lighting
Solar Remote Area Lighting
Solar Military Bases Lighting | Solar Security Light
Solar Garden Light
Solar Park Light
Solar Gate Light
Solar Grave Light
Solar Entrance Light
Solar Fence Light
Solar Campus Light
Solar Boat Dock Light
Solar Pedestrian Street Light
Solar Jogging and Bike Path Light
|
Working Principle:
1. Solar LED street light relies on solar energy, which is clean, endless and environment-friendly.
2. The system is mainly composed of solar panel, light source, controller and free-maintenance battery.
3. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting.
4. The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.
Specification:
1.solar panel: High efficiency mono or poly crystalline silicon;
2. light source: High bright LED, white, lifespan more than 50000hours;
3. controller: Intelligent microcomputer controller, 12V/24V auto, time control & light control, with over-charging and discharging protections etc;
4. battery: Gelled valve-regulated sealed battery, maintenance free and deep cycle;
5. light pole: 5-10 meters pole, made of quality steel, plastic coated after hot dipped galvanized, rust proof. Wind resistance ≥ 120km/h;
6. work temperature: Ambient temperature for -30--+60 degree c;
7. lighting time: Usually 8 /10/12 hours lighting per night, 3-4 / 5-6 rainy or cloudy days;
8) voltage: Advisable DC24V for LED above 40W.
