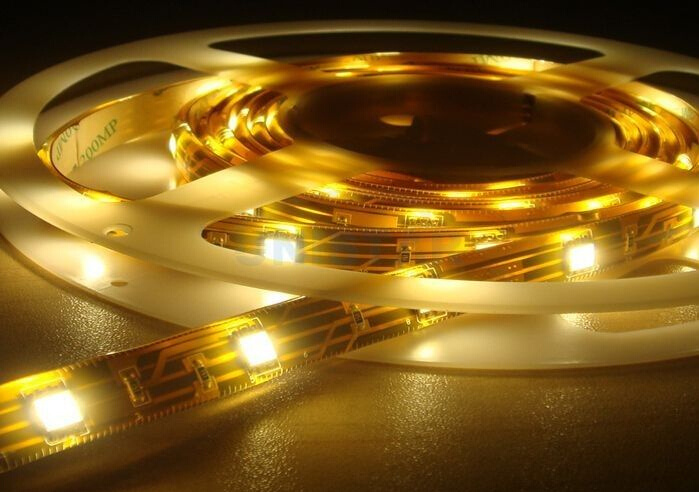

IP65 SMD5050 30LED/M LED Strip Light

Flexible LED Strip Light, 10mm 5050 SMD LED Strip Lights / Lighting 30 leds/m

10mm 5050 SMD LED strip lighting, 30leds/m, all color available

Description:

• Drip Epoxy resin glue waterproof IP65
• 5050 SMD LED as the light source
• High Brightness, All single color
• High luminance efficient and low power consumption
• Easy Installation, 3M self adhesive tape in backside
• The flexible LED strip can be divided by every three leds
• Long Life over 50, 000 hours of usable life
• CE RoHS compliant
• With 2~3 Year Warranty

Specifications:

US-F5050-30D Series of Drip Epoxy resin glue waterproof IP65

Dimension: 5000*10*2mm
LED Chip:  5050 SMD TOP LED
Emitting color: Red, Yellow, Blue, Green, warm white, cool white, RGB colors
LED Quantity: 30pcs/meter, total 150pcs
Material: FPC + Epoxy resin glue coating
FPC color: Yellow, White, Black
Beam Angle: >120°
Working Voltage: DC12V / DC24V
Rated Power: 7.2W/m

Life Span: ≥50000 hrs,
Working Temperature: -25ºC~55ºC
Working Humidity: 10%~95%
Protection Degree: IP65
Packaging: 5m/roll

   5050 SMD LED Strip dimension (unit: mm)

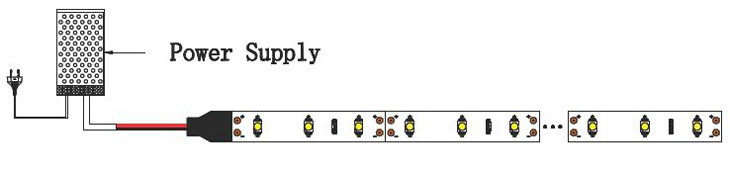

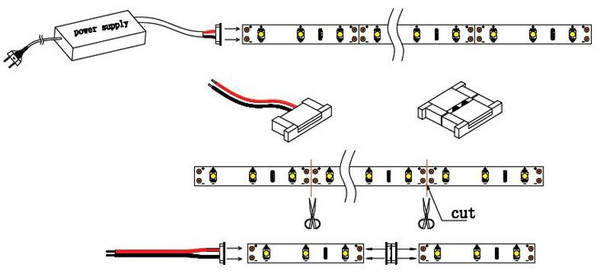

Strip Connection:

Connectors are necessary if you want to connect the cut sections together or connect a section to power.

 (Connector of strip to strip and connector of strip to power are both available)

Installation:

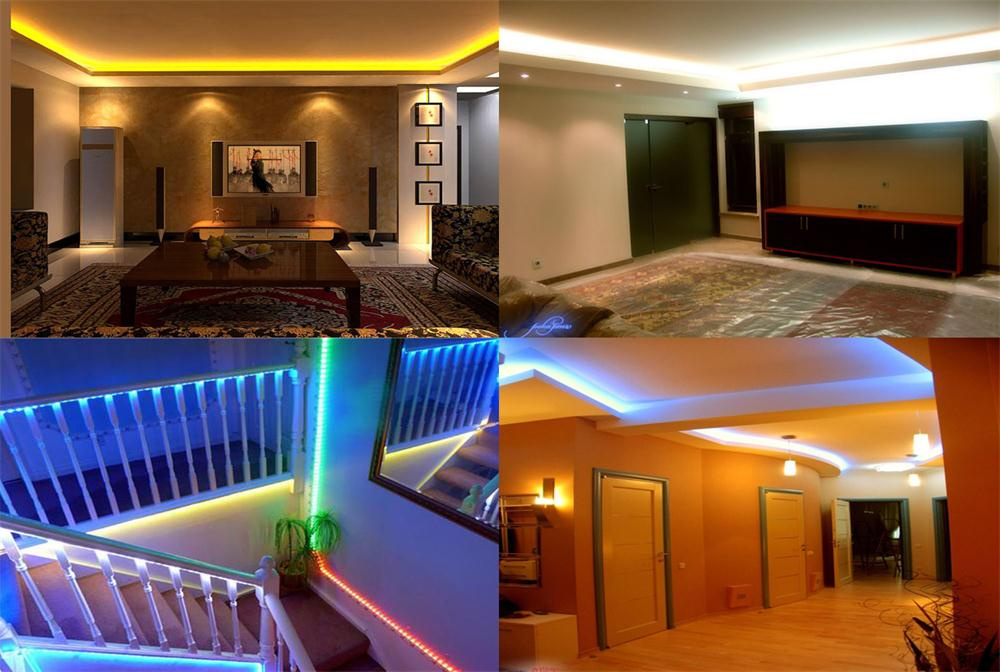

Applications:
1) Architectural decorative lighting
2) Archway, canopy & bridge edge lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Cove lighting
