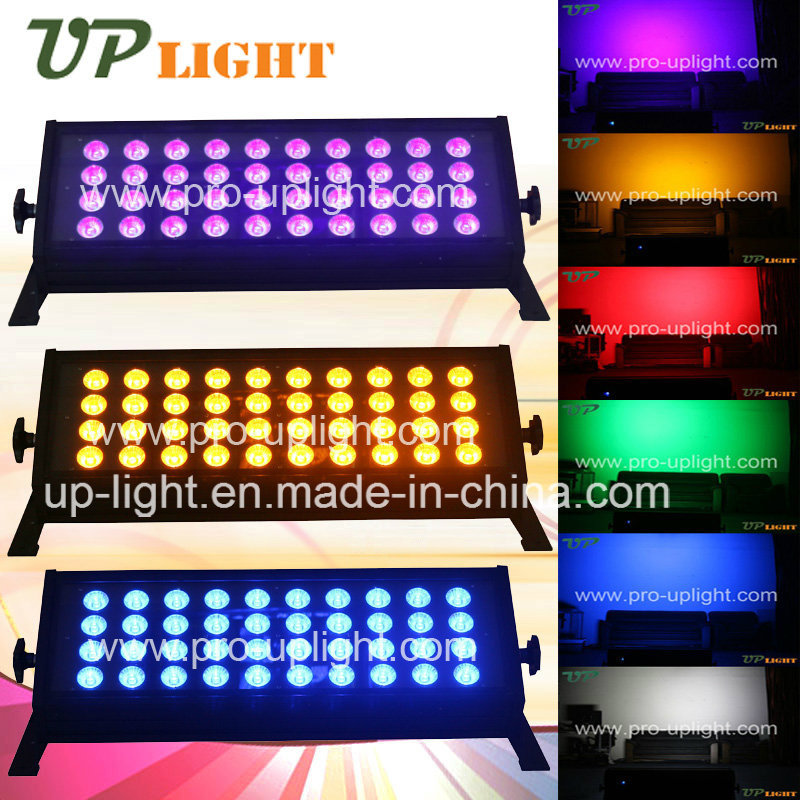

Innovative 40x18w RGBWAUV 6 colors led washer

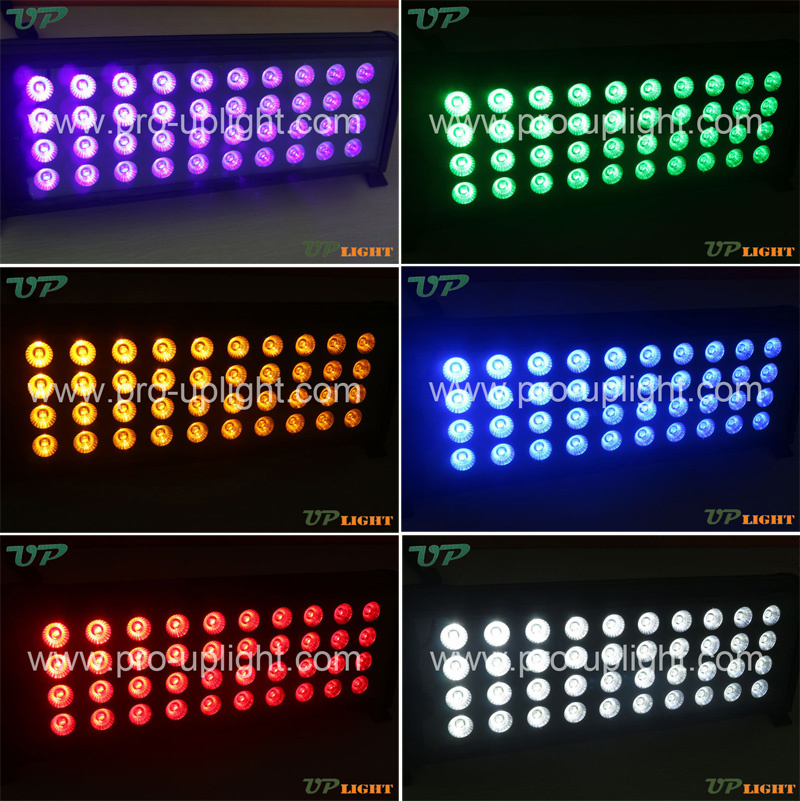

Emitting Colors
Wash Effects
Input voltage: AC100V-240V, 50/60HZ;
Rated power: 750W;
LED lamp: Nominal 18W LED with long life 80000-100000 hours, high luminous efficiency, no radiation and low power consumption etc;
LED Qty: 40pcs 18W LEDS with Red, Green, Blue, White, Amber, Ultraviolet 6 in 1;
LED luminance: More than 5,000 lux;
Color: RGBWAUV color mixing system with color rainbow and HSL color mixing adjustment which is the most favorite color mixing way for lighting technician;
Gray level: 256*256*256
Lens: 40pcs high efficiency and transmission large lens;
Lens angle:20*45° or 20*60°optional;
Emitting angle: 19°;
Waterproof grade: IP20;
Strobe: Multi-function strobe with soft light effect;
Dimmer: 0%~100% linear dimming;
Display: LED display;
Control: DMX512 signal 3-pins connection control, master-salve control, multiple connection in series control with self-programming mode, self-running mode, external control mode;
Channel: 6CH or 10CH;
Other function: DMX address can be adjusted; DMX address extension function; IP address extension function;
Material: Aluminum alloy composites plastic;
Packing size:720*270*220mm; New weight: 9kg| 6 channles | 10 channles | Function |
| CH 1 | Dimming |
| CH 1 | CH 2 | RED |
| CH 2 | CH 3 | GREEN |
| CH 3 | CH 4 | BLUE |
| CH 4 | CH 5 | WHITE |
| CH 5 | CH 6 | ULTRAVIOLET |
| CH 6 | CH 7 | AMBER |
| CH 8 | Strobe |
| CH 9 | Speed |
| CH 10 | Auto Running & Sound Control |
