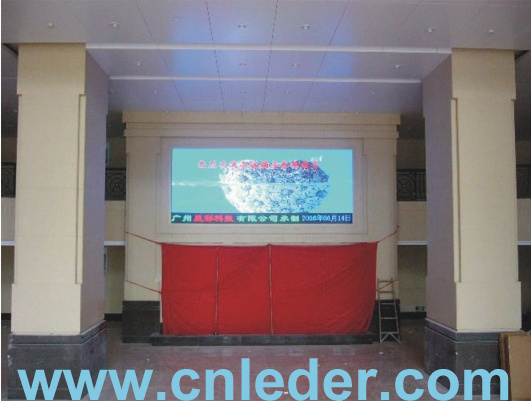

Indoor LED Video Displays pH7.62
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
Indoor LED Video Displays pH7.62:
High brightness
Easy to install
Vivid picture
10 years experience manufacturer.
|
Parameter |
Unit |
Value |
|
Brightness |
nits |
1, 800 |
|
Color temperature |
Deg. K |
6, 500 |
|
Viewing Angle- Horizontal(50% brightness) |
deg. |
160(+80/-80) |
|
Viewing Angle- Vertical(50% brightness) |
deg. |
160(+80/-80) |
|
Panel weight |
kg |
25 |
|
Panel diagonal |
mm |
1220 |
|
Panel width |
mm |
976 |
|
Panel height |
mm |
732 |
|
Panel depth |
mm |
100 |
|
Panel area |
sq. m |
0.7144 |
|
Panel material |
|
Aluminum/ Steel |
|
Aspect ratio |
|
4: 3 |
|
Ingress protection |
IP |
Front IP20/Rear IP 20 |
|
Operating temperature range |
deg. C |
-10 to 45 |
|
Spread pattern |
|
|
|
Pixel type and configuration |
R/G/B |
SMD 1, 1, 1 |
|
Pixel pitch |
mm |
7.62 |
|
Module size |
mm |
244x122 |
|
Module pixel dentisy |
dots |
32x16 |
|
Pixel matrix per panel |
dots |
128× 96 |
|
Pixel per panel |
dots |
12, 288 |
|
Pixel per sq. meter |
|
17, 222 |
|
LED per sq. meter |
|
17, 222 |
|
Recommended minimum viewing distance |
m |
5 |
|
Colors |
|
4.4Trillion |
|
Grey scale(linear) |
|
16.384 levels per color |
|
Brightness control |
Levels |
95 |
|
Contrast ratio |
|
1000: 1 |
|
Processing depth |
bit |
14 |
|
Screen System Type |
|
M4 |
|
Video frame rate |
Hertz |
50/60 |
|
Display refresh rate |
Hertz |
180 |
|
Input voltage (nominal) |
VAC |
110 to 240 |
|
Input power frequency |
Hz |
50 to 60 |
|
Input power (max) |
Watts |
860 |
|
Input power (typical) |
Watts |
345 |
|
Lifetime(50% brightness) |
Hours |
100, 000 |
|
Red wavelength(dominant) |
nm |
615 |
|
Green wavelength(dominant) |
nm |
530 |
|
Blue wavelength(dominant) |
nm |
470 |
|
Red luminance (IV) |
|
200 |
|
Green luminance (IV) |
|
260 |
|
Blue luminance (IV) |
|
65 |
|
Panel interconnection |
|
Serial Coaxial BNC |
|
switching power supply |
|
MW Power |
|
MTBF |
|
Over 10000 hours |
|
Protection technology |
|
against moisture, dust, decay, static electronity, lighting, shock, and the protection fuction of over current, short circuit, over voltage and under voltage. |
| Prod Model: |
PH7.62 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
7.62mm |
| Scanning Mode: |
Static Scan |
| Pixel Density: |
17,222 dots / m² |
| Display Function: |
Video Display |
| Tube Chip Color: |
Full Color |
| System Operating Platform: |
WIN XP |
| Certification: |
CE |
| Application: |
Stage Performance |
| IP Rating: |
IP20 |
