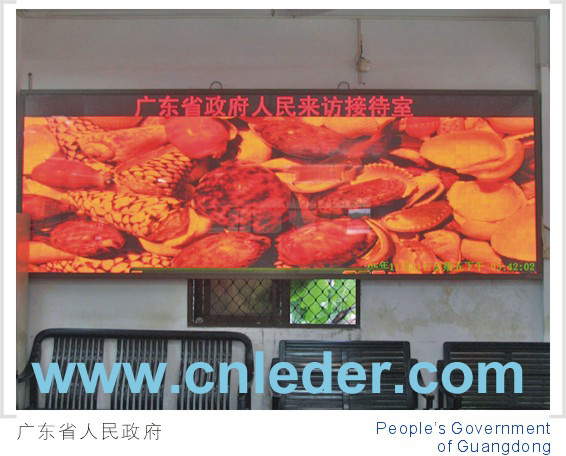

Indoor LED 5mm Display

Indoor LED 5mm Display
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 5/Piece
Pay Type: T/T
Indoor LED 5mm Display

NO. pixels consistation Title pH5 SMD 3 in 1
1 Item of lamp SMD
Spread pattern
2 DOT Pitch(Pixel) 5mm
3 Pixel Color 1R1G1B
4 Color consistation Primary colors(1red, 1pure green, 1pure blue)
5 Physical density(Point/) 40000point/ Installation environment Indoor
8 Module Module size 160W× 160H(mm)
9 Module pixel dentisy 32W× 32 H(DOT)
Physical pixel resolution 1024 DOT
10 Cabinet weight ≤ 45kg/
11 Malfunction DOT rate 5<100000(dispersion)
12 Screen crack Same Crack <0.9
13 Video-distance 3-30m
14 Reviewing angle Horizontal 120° , Vertical 140°
15 Surface flatness largest difference≤ ± 0.9
16 Black surface screen same blackness, without glisten
17 homogeneity Module luminance uniform, homogeneity amount to 98%
18 PCB layout Resonable layout, standard and beautiful line
19 Environment temperature _10° C~45° C
20 Raletive humidity 25%~95%
21 Panel thickness 13cm
22 Power request Input voltage(AC) 220V, ± 10%
23 Leakage current to ground <3mA
24 Input frequency 50Hz
25 Input Rated Power 800W/26 Input Peak Power ≤ 2000W/
27 Control system Operating System of Control WIN2000\XP Computer+ Control Software and Hardware + Play Software and Hardware
28 Control mode Synchronization with Computer VGA(Display Synchronization)
29 Control system DVI Graphics Card+Full-Color control Card+super 5 wire(or fiber) transmission
30 Input mode Computer and other peripheral equipment; PAL/NTSC/SECAM, S-Video; VGA; RGB; HDVD; Composite Video, and SDI etc.
31 Main technologyreference LED driver Constant current driver
32 Computer display mode 640× 480, 800× 600, 1024× 768
33 Scan speed >140Hz
34 Refreshing frequency >400Hz
35 Gray level/color Level 8192\ 68, 266, 000, 000
36 Full-Screen luminance >2500CD/
37 Brightness Level Level 100
38 Brightness's adjustment Level 7
39 Life-Span Over 100000 hours
40 Display content Video DVD \VCD\ TV, Pictures, Words, Flash, etc.
41 MTBF ≥ 10000 hours
42 Interface Standard Ethemer internet interface, communication adopt RS-422
43 Communication medium and command range Multimode fiber<500m, monomode fiber transmission < 30km, type 5 wire < 100m
44 Protection technology Against moisture, dust, decay, static electronity, lighting, shock, and the protection fuction of over current, short circuit, over voltage and under voltage.
45 Software The common video software of Leder
*Specification subjeted to change without prior notice
NO. pixels consistation Title PH5 SMD 3 in 1
1 Item of lamp SMD
Spread pattern
2 Dot Pitch(Pixel) 5mm
3 Pixel Color 1R1G1B
4 Color consistation Primary colors(1red,1pure green,1pure blue)
5 Physical density(Point/) 40000point
  Installation environment Indoor
8 Module Module size 160W×160H(mm)
9 Module pixel dentisy 32W×32 H(dot)
Physical pixel resolution 1024 dot
10 Cabinet weight ≤45kg
11 Malfunction dot rate 5<100000(dispersion)
12 Screen crack Same Crack <0.9
13 Video-distance 3-30m
14 Reviewing angle          Horizontal 120,Vertical 140
15 Surface flatness largest difference≤±0.9
16 Black surface screen same blackness,without glisten
17 homogeneity Module luminance uniform,homogeneity amount to 98%
18 PCB layout Resonable layout,standard and beautiful line
19 Environment temperature —10-45
20 Raletive humidity 25%~95%
21 Panel thickness 13cm
22 Power request Input voltage(AC) 220V, ±10%
23 Leakage current to ground <3mA
24 Input frequency 50HZ
25 Input Rated Power 800W/
26 Input Peak Power ≤2000W/
27 Control system Operating System of Control WIN2000\\XP Computer+ Control Software and Hardware +  Play Software and Hardware
28 Control mode Synchronization with Computer VGADisplay (Synchronization)
29 Control system DVI Graphics Card+Full-Color control Card+super 5 wire(or fiber) transmission
30 Input mode Computer and other peripheral equipment ;PAL/NTSC/SECAM, S-Video;VGA;RGB;HDVD;Composite Video,and SDI etc.
31 Main technologyreference LED driver Constant current driver
32 Computer display mode 640×480,800×600,1024×768
33 Scan speed >140hz
34 Refreshing frequency >400hz
35 Gray level/color Level 8192\\ 68,266,000,000
36 Full-Screen luminance >2500cd/
37 Brightness Level Level 100
38 Brightness's adjustment Level 7
39 Life-Span Over 100000 hours
40 Display content Video DVD  VCD TV,Pictures,Words,Flash,etc.
41 MTBF ≥10000 hours
42 Interface Standard Ethemer internet interface ,communication adopt RS-422
43 Communication medium and command range Multimode fiber500m,monomode fiber transmission < 30km,type 5 wire < 100m
44 Protection technology Against moisture,dust,decay, static electronity,lighting,shock,and the protection fuction of over current,                                  short circuit,over voltage and under voltage.
45 Software The common video software of Leder
*Specification subjeted to change without prior notice



Prod Model: PH5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pixel Configuration: 1R,1G,1B
Pixel Pitch: 5mm
Scanning Mode: Static Scan
Pixel Density: 40,000 dots / m²
Display Function: Video Display
Tube Chip Color: Full Color
IP Rating: IP43
System Operating Platform: WIN XP
Certification: CE
Application: Stage Performance
Shenzhen Leder Electronics Co., Ltd. Locates in E Building, the new world of Science and Technology Industrial Park, XiaShiJia, Gongming Street Guangming New Area, ShenZhen, Guangdong, China. LEDER is the high & new technology enterprise specializing in the Research & Development of LED displaying products, production, sales, engineering service, etc.

Based on more than 10 years of outstanding development, LEDER becomes one of the most advanced LED display manufacturers in China and also one of the biggest professional LED display manufacturers in Southern China.

With modern workshop for electronic processing, assembling, adjusting and aging, LEDER ensures the production capability of 20000 m2 LED display for all types yearly, and is able to provide one package service for our clients from consultant, production, installation, adjustment & test, training to after service.

LEDER positively practices the environmental protection and energy saving. In 2008, LEDER firstly launched OUTDOOR SMD (5050, 5060) 3IN1 FULL COLOR LED DISPLAY. Solved 3 difficult problems on outdoor SMD LED Displays successfully - brightness, heat extraction and water proofing, and made-up deficiencies of the traditional LED Display of small viewing angle, module's nonuniform color, large power consumption, overweight, and so on. In 2009, LEDER brought out LED lighting products: Flexible LED video strip, LED flexible strip, LED video pels light, LED module^^, which attracts batches eyes and gains very good comment from experts and audients.

Since the foundation, LEDER has been insisting the tenet of "Build first-class brand, win with superior quality and service", and has actively conducted the ISO 9001 system, its products have been awarded certificates such as CE, RoHS. Besides owning a few of independent core technology and patents, LEDER firstly built up the enterprise standard, which effectively promotes the healthy development of Chinese LED display industry. Successively, LEDER undertakes batches of high quality projects in domestic and oversea. Now LEDER has jumped to be the biggest professional LED display manufacturer in ShenZhen, and has set up its leading position in optoelectronic industry, and to be as sponsors at the 16th Asian Games.

LEDER's General Manager has been directly working on the management of R&D, production, engineering, and after-service for more than 15 years. He has experienced the stage of starting, developing and maturing of China's LED Display industry. He would like to cooperate with all customers, leading all of LEDER staffs, to witness the prosperity of LEDER and LED Display industry together.

"Share our successful happiness with our clients" is the business concept we always keep. With your continuing care and support, we, together enter to LED products' energy saving, colorful, and bright future.
