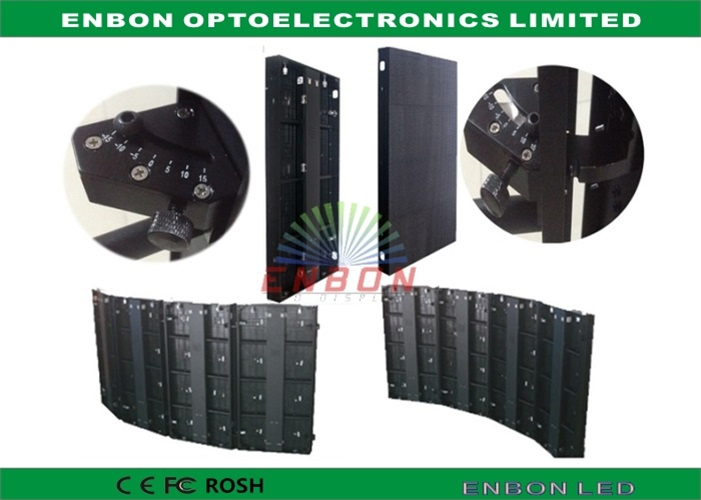

Indoor LED display, 500*1000mm P5.68 curved display screen
We would like to inform you that we have P5.68 (30976 pixels/sq.m) indoor LED screen . It is slim aluminum panel of 500mm*1000mm, 12KG each panel . It is convenient to install and dismantle. Besides, this LED screen is very easy to calculate the size.It can be exactly 4*3m, 6m*4m, 8m*4.5m etc. ( 4m*3m is 4:3 ratio and 8m*4.5m is 16:9 ratio,perfect to show video )
| Model | P5.68 curved slim aluminum LED display for rental indoor |
| Pixel pitch | 5.68mm |
| Pixel density | 30,976 dots /sqm |
| Module size ( W * H ) | 250 mm ( width ) * 250 mm ( height ) |
| Module pixels ( W * H ) | 44 dots *44 dots |
| Pixel configuration | 1 Red 1 Green 1 Blue |
| Drive mode | constant current driving 1/11 scan |
| LED lamp type | SMD3528 |
| Cabinet size ( W * H ) | 500mm*1000mm |
| Cabinet resolution | 88*176 dots |
| Net weight | 12 Kg / cabinet |
| Color scale | 65,536 degree |
| View angle ( H / V ) | 140 / 120 degree |
| Brightness ( White balance ) | about 1800 cd / SQM. |
| Power consumption | Max : 300 Watte / cabinet , Average : 100 Watte / cabinet |
| Inputting Voltage | 90-264VAC 47--63Hz |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m ( without repeater ) , single mode fiber : 20km ,
multi mode fiber : 500m |
| LED control system | LINSN , Nova-star , Colorlight are selectable |
| Operating system | Windows Xp / Windows 7 / windows 8 / 8.1 / windows 10 |
| Protection grade | IP31 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | HDMI , PAL , NTSC , HDMI , BNC , TV , SDI , VGA , Media player etc . |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
