1. Ultra-light weight and slim design
2. Fanless design and front maintenance
3. Quick lock system allowing handling fast
4. Standard panel size 500mmx500mm making flexible assembling and dismantling
5. Higher contrast ratio with true black body SMD available
6. High refresh rate available for capture for DV&VCR

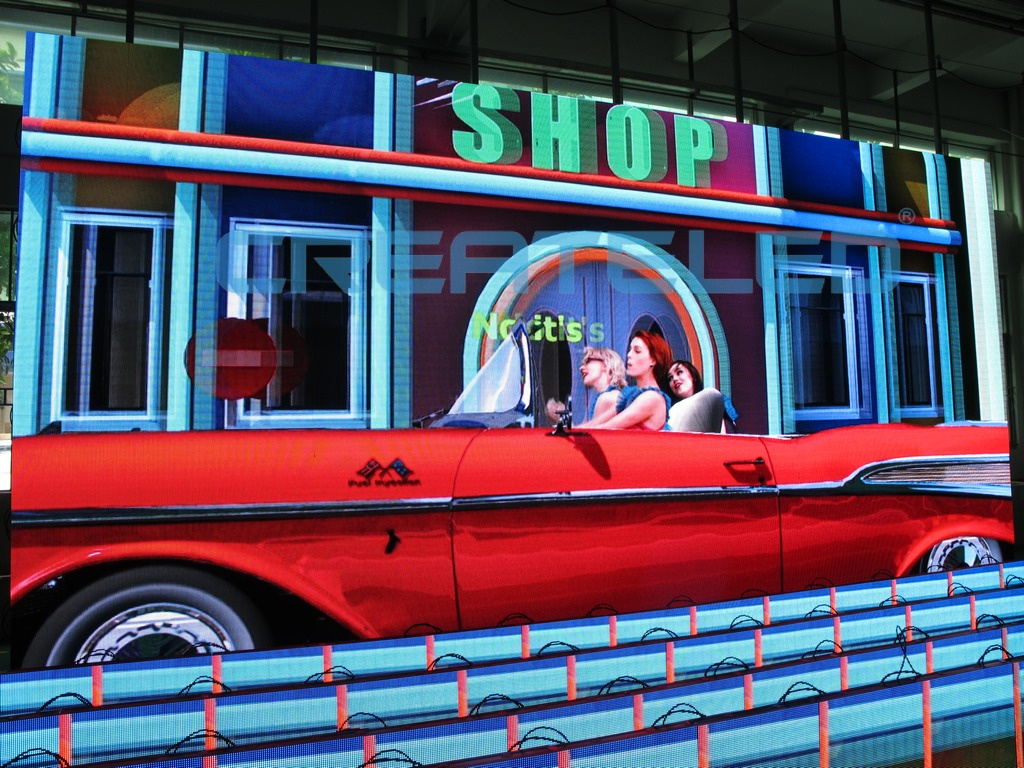

CreateLED Indoor High Definition Full Color LED Display Screen AirLED-10 have robust precision extruded aluminum section and contrast ration comprised for both rental and permanent installations. Totally black body and revolutionary black body LEDs makes the display delivers the deepest black level in the market, and the highest attractive contrast ratio of over 4000: 1.
LED Display Screen, LED Screen, LED Video Display Screen, Indoor LED Screen, Full Color LED Screen, LED Rental Screen, LED Wall Screen, Stage LED Display Screen, Event LED Screen, LED Screen Panel are available.
|
Model |
AirLED-10 |
|
Pixel Pitch |
10.4mm |
|
Unit Size |
500mmx500mmx65mm |
|
LED Type |
SMD 3-IN-1 |
|
Pixel / Unit |
48x48 |
|
Unit Weight |
7kg |
|
Viewing Angle |
H160 degree V160 degree |
|
Application |
Storage-40~60° C, Working-20~50° C |
|
Protection Level |
For indoor use only |
|
Power Consumption |
200W/panel Max |
|
80W/Panel Ave. |
|
Driving |
1/4 Scan |
|
Frame Refresh |
≥ 60Hz |
|
Data Refresh Rate |
1, 200~4, 000Hz |
|
Processing |
16bit |
|
Max Brightness |
2, 000nits |
|
Power Supply |
AC90-240V, 50~60Hz |
|
MTBF |
≥ 1, 000 Hours |
|
Life Span |
≥ 50, 000 Hours |
|
Pixel Failure |
< 0.0003
|
Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.
Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.
About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.
Welcome to our Showroom and My Products for more detailed offer info.
