200 sqm products used in American Idol Show, Philippines.
Key Benefits
1. Extremely close view distances and wide view angles.
2. Silent operation, little heat generated (no fans).
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
4. Lightweight and seamless, precision extruded aluminum section structure.
5. Real white, brilliant colors, breathtaking grayscale.

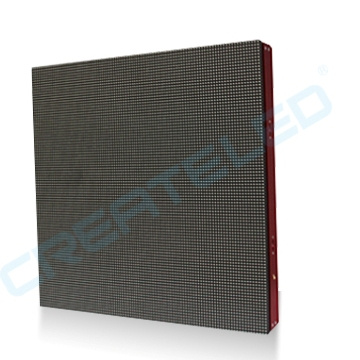

Module size: 250mm x 250mm
Panel size: 500mm x 500mm x 65mm
Panel weight: 7kg
Weight per m2: 28kg
Support frame in aluminum
Cooling: natural airflow(fan less design)
Power supply: AC 220-240 V, 50/60 Hz
Power consumption: Avg 80 W/panel
MTBF ≥ 1, 000 H
Ambience working temperature: -20~55C
Ambience humidity: 85% at 25C, 65% at 40C
LED type: Black Face SMD 3 in 1
Resolution: 96 x 96 pixel/panel
Pixel pitch: 5.2mm
LED population: 36, 864 LED/sqm
Brightness: ≥ 1, 500 Nits
Drive method: 1/8 scan method
Lifetime(50% brightness): 100, 000 h
Colors: 281 trillion
Gray scale: 16 bit
Refresh rate: 600~2, 000 Hz
Viewing angle: H: ≥ 150° , V: ≥ 80°
Dead Pixel Ratio: < 0.002
Sender Box input: USB connector
Sender Box output: RJ45 connector
Connection between PC and Sender Box: USB cable
Supported video input: DVI/HDMI/SDI
Software functions: display configuration, intensity adjustment, color calibration, content management, and system settings. |
Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.
Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.
About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.
