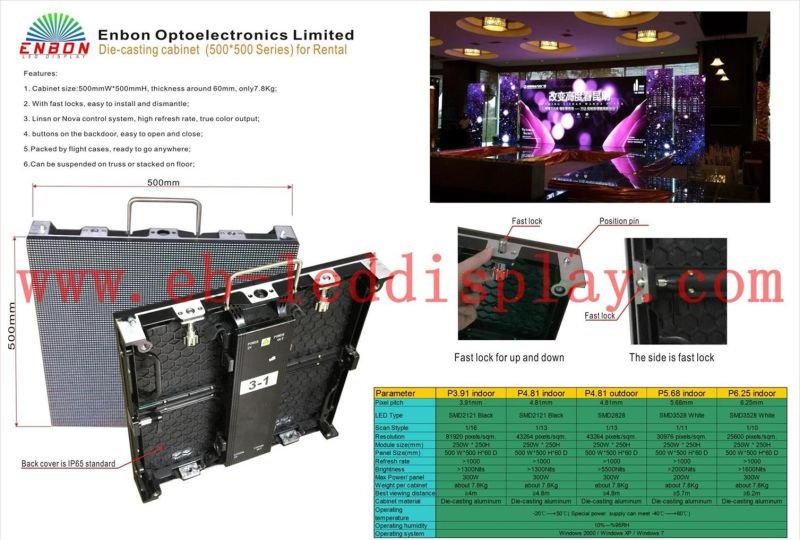

500*500mm indoor rental LED digital display from ENBON is new in the market, Pitches available
P3.9, P4.8, P5.2, P6.25. This digital display is high definition for high end market.The features as below:
--Just 7
kg / Cabinet, 70mm thickness;
-- Die-casting aluminum cabinet,
500mm*500mm,very easy to calculate the size of LED display-- Easy assembly, easy dismantle;
-- New system, high refresh rate, true color output;
-- Neutrik connectors are optional, better connectivity
-- competitive price and 2 years warranty.
--It is very easy for 4: 3 or 16: 9
ENBON invents in developing die casting aluminum cabinet indoor LED video wall, to enter high-end market. At present, more and more high-end LED video wall adopts a relatively high precision die-casting process, the use of molds forming a more secure cabinet flatness, keeping tolerance control, basically solved the problem in cabinet patchwork; Also, die-casting Aluminum cabinet breakthrough the traditional one, with a more beautiful appearance. Besides, aluminum alloy still remains stable performance, in air and higher temperatures, not like to iron rusty.

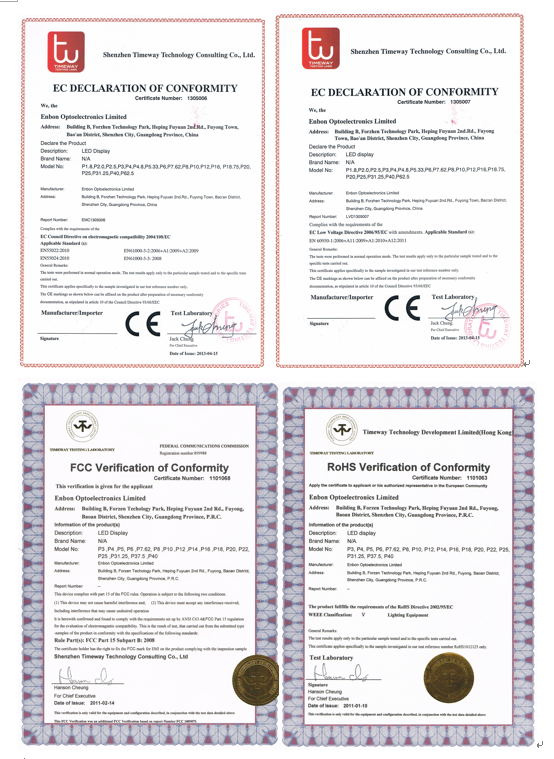

Our products passed CE,FCC,ROHS certificate
The parameters of 500 sereis indoor LED screen |
Pixel Pitch | P3.9 | P4.8 | P4.8 | P5.2 | P5.2 | P6.25 |
|
LED Chip | Opto+Silan | Opto+Silan | Opto+Silan | Opto+Silan | Opto+Silan | Opto+Silan |
|
LED lamp type | SMD2121(Black Body) | SMD3528(Black Body) | SMD3528(White Body) | SMD3528(Black Bodoy) | SMD3528(White Body) | SMD3528(White Body) |
|
Pixel density | 65746 dots/m 2 | 43402dots/m 2 | 43402dots/m 2 | 36982 dots/m 2 | 36982 dots/m 2 | 25600 dots/m 2 |
|
Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
|
Cabinet pixels(W*H) | 128*128 dots | 104*104 dots | 104*104 dots | 96*96 dots | 96*96 dots | 80*80 dots |
|
Driving Method | 1/16 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/8 scan |
|
Driving IC | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5042 / MBI5050 |
|
Refresh Rate | ≥1000Hz | ≥1000Hz | ≥1000Hz | ≥2000Hz | ≥2000Hz | ≥2500Hz |
|
Brightness | ≥1200CD/m 2 | ≥1100CD/m 2 | ≥2800CD/m 2 | ≥1100CD/m 2 | ≥2500CD/m 2 | ≥2600CD/m 2 |
|
Max.Power Consumption | 1200w/m 2 | 800w/m 2 | 800w/m 2 | 690w/m 2 | 690w/m 2 | 960w/m 2 |
|
Average power consumption | 400w/m 2 | 250w/m 2 | 250w/m 2 | 200w/m 2 | 200w/m 2 | 320w/m 2 |
|
Cabinet Size(mm) | 500*500*60mm | 500*500*60mm | 500*500*60mm | 500*500*60mm | 500*500*60mm | 500*500*60mm |
|
Cabinet Material | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum |
|
The weight of single cabinet | 8Kg/Cabinet | 8Kg/Cabinet | 8Kg/Cabinet | 8Kg/Cabinet | 8Kg/Cabinet | 8Kg/Cabinet |
|
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
