| Price: | US $ 2500-3500/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T |
|
Module size: 250mm x 250mm Panel size: 500mm x 500mm x 65mm Panel weight: 7kg Weight per m2: 28kg Support frame in aluminum Cooling: natural airflow(fan less design) Power supply: AC 220-240 V, 50/60 Hz Power consumption: Avg 80 W/panel MTBF ≥ 1, 000 H Ambience working temperature: -20~55C Ambience humidity: 85% at 25C, 65% at 40C LED type: Black Face SMD 3 in 1 Resolution: 80 x 80 pixel/panel Pixel pitch: 6.25mm LED population: 25, 600 LED/sqm Brightness: ≥ 1, 500 Nits Drive method: 1/8 scan method Lifetime(50% brightness): 100, 000 h Colors: 281 trillion Gray scale: 16 bit Refresh rate: 600~2, 000 Hz Viewing angle: H: ≥ 160° , V: ≥ 160° Dead Pixel Ratio: < 0.002 Sender Box input: USB connector Sender Box output: RJ45 connector Connection between PC and Sender Box: USB cable Supported video input: DVI/HDMI/SDI Software functions: display configuration, intensity adjustment, color calibration, content management, and system settings. |
| Prod Model: | AirLED-6 Black Face |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Unit Size: | 500x500x65mm |
| SMD: | 3-in-1 SMD |
| Unit Weight: | 7kg |
| Panel Resolutionn: | 80 x 80 |
| Tube Chip Color: | Full Color |
| Display Function: | Video Display |
| Scanning Mode: | 1/8 Scan |

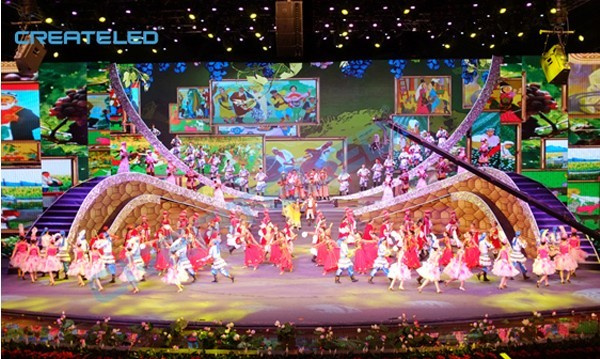

| Application: | Stage Performance |
| Pixel Configuration: | Md 3-in-1 |
| Pixel Pitch: | 6.25mm |
| IP Rating: | Indoor Use |
| Certification: | CE & RoHS |
| Pixel Density: | 25, 600 Dots/ Sqm |
| System Operating Platform: | Windows XP Windows 2000 |
