HD Indoor Fullcolor Video Big Stage LED Display
Advantages
Safety. Using the low voltage DC so that no matter the elderly and children can safely operate without potential safety hazard.
Softness. Using PCB as the substrate and can apply to various advertising model requirements.
Long lifespan. The normal operating time is 100000 hours. If worked all the day long, it would work for at least 10 years.
Energy conservation and environmental protection. Using the environmental materials and low power (0.04W-0.08W) so that cannot result in waste and pollution.
Easily installation. Using attaching clamp, wire casing, iron wire, iron net and can install on all kinds of undertake surface. It can also be installed by the double-sided adhesive because of the light weight.
Pure color. Using the high bright SMT and the color is pure, downy and no glare.

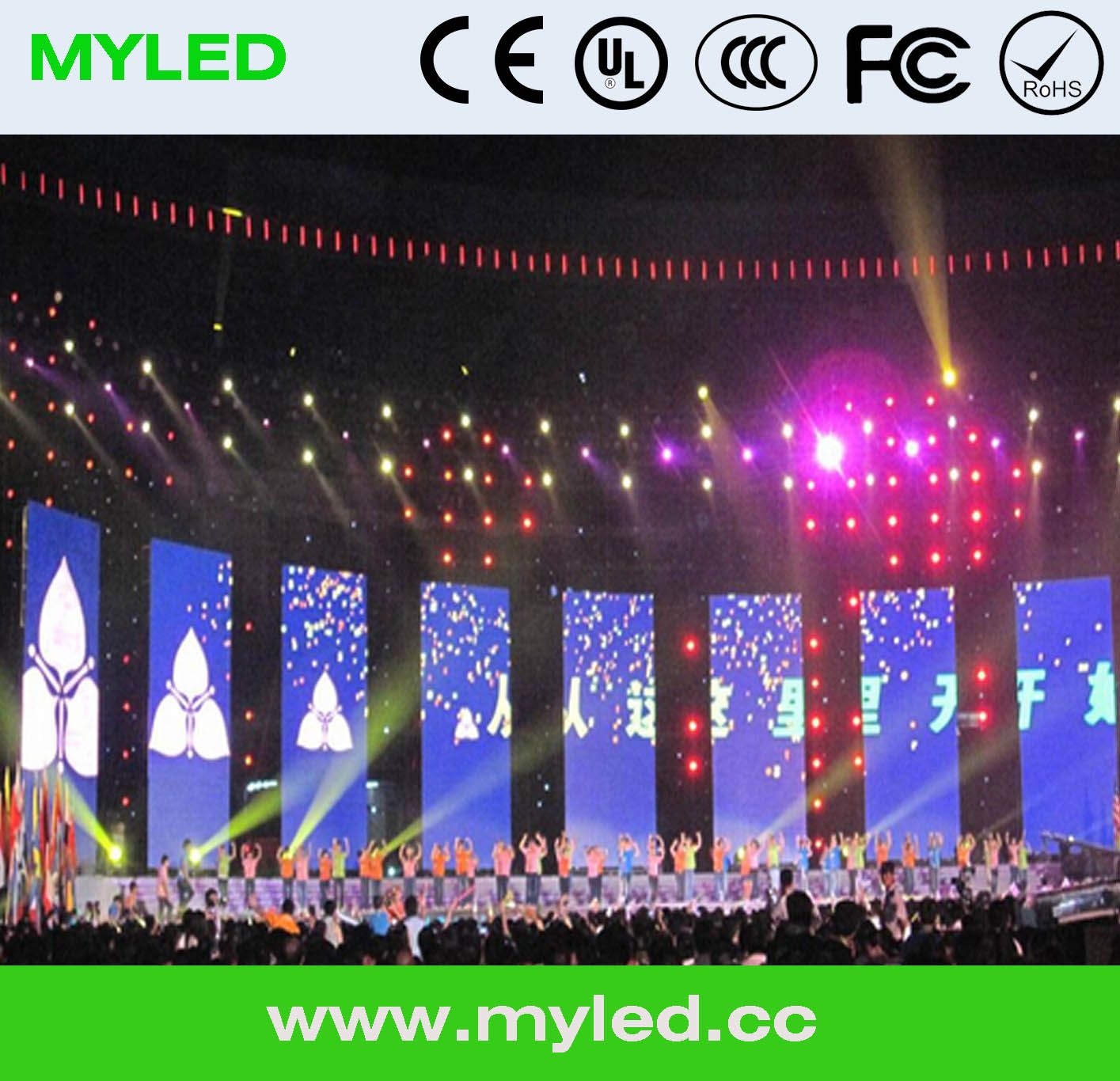

Application: broadcast, live show, TV studio, conference, party and wedding ceremony, they are also used as advertising screen in shopping mall center, building street, highway and so on.
Modle No. | F-P3.91 | F-P4.81 |
| Pixel Pitch | 3.91mm | 4.81mm |
| Pixel Density | 65536dots/m² | 43264dots/m² |
| Brightness | ≥1300nit | ≥1500nit |
| LED Encapsulation | SMD2427 black leds optional | SMD3528 black leds optional |
| Drive Mode | 1/16 scan | 1/13 scan |
| Cabinet Resolution | 128*128 dots | 104*104 dots |
| Cabinet Weight | ≤9kg | ≤9kg |
| Max Pqwer Consumption | ≤560w/m² | ≤520w/m² |
| Average Power Consumption | ≤280w/m² | ≤260w/m² |
| Best Viewing Angle | H:160° V:120° | H:160° V:120° |
| Refresh Rate | 360-2500Hz | 360-2500Hz |
| Grey Scale | 14-16bit | 14-16bit |
| Best Viewing Distance | 3-50m | 4-50m |
| Frame Rate | 60Hz |
| Drive IC | MBI5024 |
| Module Size | 125*250mm |
| Cabinet Size(W*H*D) | 500*500*106mm |
| Pixel Configuration | 1R1G1B |
| Color Temperature | 6500-9500k |
| Protection Level | IP31 |
| Cabinet Material | Die-casting Aluminum Alloy Cabinet |
| Operation Voltage | 220v/50Hz,110v/60Hz |
| Working Humidity | 10%-90% |
| Working Temperature | -20ºC--+50ºC |
| Video Signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION,etc. |
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
