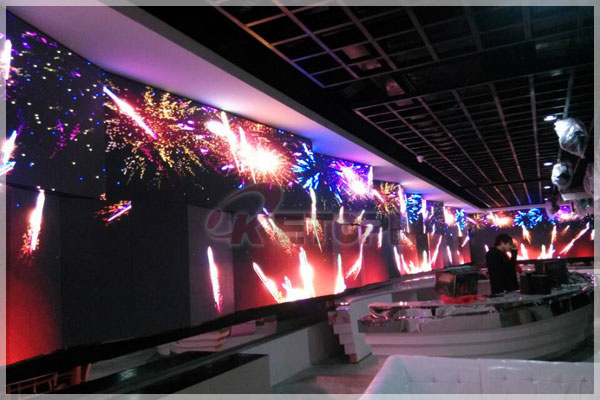

Product features: Ideally for any indoor display applications, from concerts to stage performances, 3-in-1 SMD displays are the perfect LED rental display solution for attracting viewers'attention, adding significant value to any indoor event. The SMD lamps bring exceptional color and wide viewing angles. Excellent images and cost-saving convenience make the SMD display the best choice for any number of indoor applications. Moreover, the ultra resolution LED panels deliver unsurpassed image quality, while the fan-less designs run absolutely silently, invariably a key requirement for indoor applications.
1 The indoor series from Retop boasts wider viewing angles, and the enhanced surface, for an exceptional picture quality in any indoor setting.
2 With a light output more than 1, 200 nits and native 14-bit color processing, it is sure to deliver the pinnacle of image quality in all circumstances.
3 The module desigh and slim casing make installation simple, featured in seamless and light weight.
| LAMP | LED Type | SMD 3-in-1 |
| Wave length | R: 620 nm |
| G: 524 nm |
| B: 468 nm |
| BOARD | Pixel configuration | 1R1G1B |
| LED driving method | 1/8 dynamic scan |
| Pixels | 32 | * | 32 | (W*H) |
| Pixel pitch | 6 | mm |
| Led board size | 192 | mm | * | 192 | mm | * | 16 | mm | (W*H*D) |
| MODULE | Led boards | 4 | * | 4 | (W*H) |
| Pixels | 128 | * | 128 | (W*H) |
| Module area | 0.59 | m 2 |
| Module size | 768 | mm | * | 768 | mm | * | 166 | mm | (W*H*D) |
| Net weight | 28 | kg | (aluminum) | / | 35 | kg | (ferrum) |
| Power | AC220/110 ± 10%, 47~63Hz |
| Water proof | N/A |
| Serviceability | Rear service |
| DISPLAY | Max. power consumption | ≤ | 950 | W/m 2 |
| Avg. power consumption | ≤ | 333 | W/m 2 |
| Max. current (208V 60Hz) | ≤ | 5.07 | A/m 2 |
| Hor. viewing angle(min 50% brightness) | 140° |
| Vert. viewing angle(min 50% brightness) | 140° |
| Brightness | ≥ 1500 cd/m 2 |
| Pixel density | 27778 | /m 2 |
| Power factor | > 0.9 |
| Certifications | UL, CE, ETL, ROSH, CCC |
| Contrast ratio | 3000: 1 |
| Operating temperature | -20º C to +60º C |
| Operating humidity | 20% to 90% |
| Lifetime (50% brightness) | 100, 000 hours |
| Processing | 14 bit |
| Colors | 281 trillion |
| Refresh rate | ≥ 2400 Hz |
| Frame rate | 60 fps |
| Brightness level | Manual 100 levels, automatically 16 levels. |
Welcome to Retop LED Display-your one stop solution provider for all things LED related. As a renowned manufacturer in the growing Chinese industry, we have completed more than 10, 000 worldwide installation projects over the span of nearly 2 decades. In the pursuit of excellence, we succeeded in breaking numerous industry records. Retop is widely acknowledged as a world-leading designer and producer of high quality LED screens. Our target markets include sports, advertising, rental & stage, etc. To learn more, please ask us about our fully featured customization options!
Through vertical integration Retop is able to optimize the industrial chain. Our scope of expertise ranges from LED wafers & chips to LED control systems, LED lamps, LED encapsulation, and LED displays.
Retop is a publicly listed LED display manufacturer. We are fully integrated with our parent company Elec-Tech. Headquartered in Wuhu city, our facilities cover an area of 120, 000 square meters. We proudly declare our production base to be the largest in mainland China. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 9 years, we have made steady progress in the
Development of overseas markets. Our success can largely be attributed to an outstanding reputation and a diverse client base.
Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. Retop products are approved by CE, UL, CCC, EMC, ETL, and FLL. We are fully certified by ISO standards.
